INSTRUMENT PANEL & GLOVE COMPARTMENT

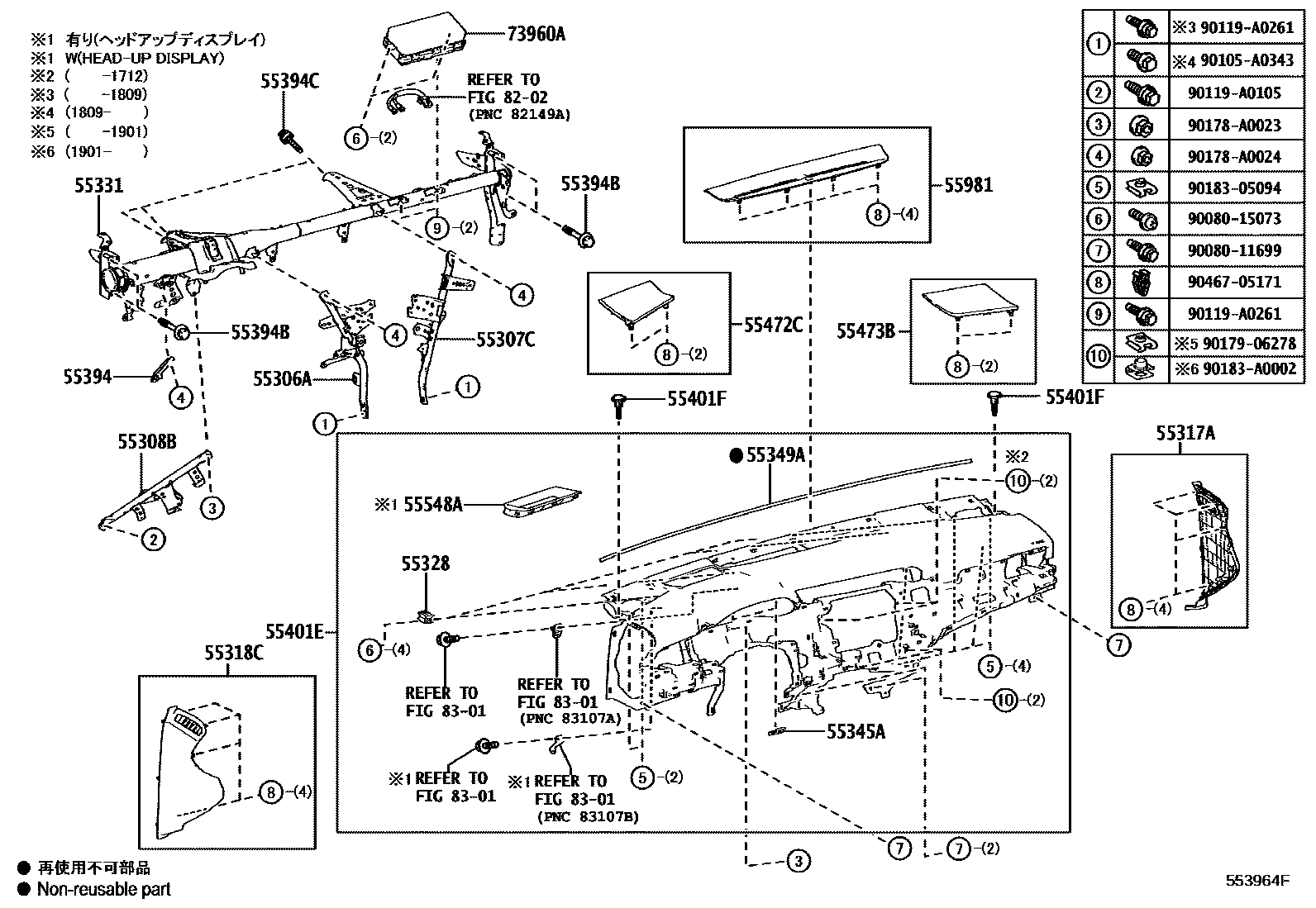

Parts diagram
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-06160i201706-202010
main55306-06250i202010
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-06110i201706-202010
main55307-06240i202010
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
main55308-06070i201706-202010
main55308-06160i201706-202010
55317APANEL, INSTRUMENT SIDE, RH
main55317-06330i201706-202010
55318CPANEL, INSTRUMENT SIDE, LH
main55318-06250i201706-202010
55328PIN, INSTRUMENT PANEL, NO.1
main55328-60090i¥340201706-202010
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-06340i202010
main55330-06460i201706-202010
55345ACLIP, INSTRUMENT PANEL, NO.1
main55345-12060i¥90201706-202010
55349ACUSHION, INSTRUMENT PANEL
main55349-06170i201706-202010
55394BRACKET, INSTRUMENT PANEL TO PEDAL
main55394-06190i201706-202010
55394BBOLT, INSTRUMENT PANEL
main90105-A0280i201706-202010
55394CBOLT, INSTRUMENT PANEL
main90119-A0312i201706-202010
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55401-06250-B0i201706-202006
NEUTRAL WARM GRAY,TRIM4#
sub55401-06251
main55401-06250-C1i201706-202006
SOFT BLACK,TRIM1#
sub55401-06251
main55401-06250-C1i201706-202006
SOFT BLACK,TRIM1#,2#
sub55401-06251
main55401-06250-C1i201706-202006
SOFT BLACK,TRIM1#,2#,3#
sub55401-06251
main55401-06250-C1i201909-202006
TRD PACKAGE,SOFT BLACK,TRIM2#
sub55401-06251
main55401-06251-B0i202007-202010
NEUTRAL WARM GRAY,TRIM4#
main55401-06251-C1i202007-202010
SOFT BLACK,TRIM1#,2#,3#
main55401-06251-C1i202007-202010
SOFT BLACK,TRIM1#,2#
main55401-06251-C1i202007-202010
SOFT BLACK,TRIM1#
main55401-06251-C1i202007-202010
TRD PACKAGE,SOFT BLACK,TRIM2#
main55401-06260-B1i201706-201809
HEAD UP DISPLAY-WITH,NEUTRAL WARM GRAY,TRIM4#
main55401-06260-B1i201706-201809
NEUTRAL WARM GRAY,TRIM4#
main55401-06260-C1i201706-201809
HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#
main55401-06260-C1i201706-201809
BLACK,TRIM1#,2#
main55401-06260-C1i201706-201809
BLACK,TRIM1#,2#,3#
main55401-06260-C1i201706-201809
HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#,3#
main55401-06261-B0i201809-201909
HEAD UP DISPLAY-WITH,NEUTRAL WARM GRAY,TRIM4#
sub55401-06262
main55401-06261-B0i201809-202006
NEUTRAL WARM GRAY,TRIM4#
sub55401-06262
main55401-06261-C2i201809-202006
SOFT BLACK,TRIM1#,2#
sub55401-06262
main55401-06261-C2i201809-202006
SOFT BLACK,TRIM1#,2#,3#
sub55401-06262
main55401-06261-C2i201809-201909
HEAD UP DISPLAY-WITH,SOFT BLACK,TRIM1#,2#
sub55401-06262
main55401-06261-C2i201809-201909
HEAD UP DISPLAY-WITH,SOFT BLACK,TRIM1#,2#,3#
sub55401-06262
main55401-06262-B0i202007-202010
DRIVER ASSIST PACKAGE,NEUTRAL WARM GRAY,TRIM4#
main55401-06262-B0i202007-202010
NEUTRAL WARM GRAY,TRIM4#
main55401-06262-C2i202007-202010
SOFT BLACK,TRIM1#,2#,3#
main55401-06262-C2i202007-202010
DRIVER ASSIST PACKAGE,SOFT BLACK,TRIM1#,2#,3#
main55401-06262-C2i202007-202010
DRIVER ASSIST PACKAGE,SOFT BLACK,TRIM1#,2#
main55401-06262-C2i202007-202010
SOFT BLACK,TRIM1#,2#
main55401-06570-B0i202010
NEUTRAL WARM GRAY,TRIM4#
main55401-06570-C0i202010
SOFT BLACK,TRIM1#,2#,3#
main55401-06570-C0i202010
TRD PACKAGE,SOFT BLACK,TRIM2#
main55401-06570-C0i202010
SOFT BLACK,TRIM1#,2#
main55401-06580-B0i202010
NEUTRAL WARM GRAY,TRIM4#
main55401-06580-B0i202010
DRIVER ASSIST PACKAGE,NEUTRAL WARM GRAY,TRIM4#
main55401-06580-C0i202010
DRIVER ASSIST PACKAGE,SOFT BLACK,TRIM1#,2#,3#
main55401-06580-C0i202010
SOFT BLACK,TRIM1#,2#
main55401-06580-C0i202010
SOFT BLACK,TRIM1#,2#,3#
main55401-06580-C0i202010
DRIVER ASSIST PACKAGE,SOFT BLACK,TRIM1#,2#
55401FCLIP(FOR SAFETY PAD)
main52161-02020i¥200201706-202010
55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1
main55472-06140-B0i201706-201809
NEUTRAL WARM GRAY,TRIM40
sub55472-06141
main55472-06140-C0i201706-201809
BLACK,TRIM1#,2#,3#
sub55472-06141
main55472-06140-C0i201706-201809
BLACK,TRIM1#,2#,40
sub55472-06141
main55472-06140-C0i201706-201809
BLACK,TRIM1#,2#
sub55472-06141
main55472-06141i201809-202010
55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2
main55473-06140-B0i201706-201809
NEUTRAL WARM GRAY,TRIM40
sub55473-06141
main55473-06140-C0i201706-201809
BLACK,TRIM1#,2#,40
sub55473-06141
main55473-06140-C0i201706-201809
BLACK,TRIM1#,2#,3#
sub55473-06141
main55473-06140-C0i201706-201809
BLACK,TRIM1#,2#
sub55473-06141
main55473-06141i201809-202010
55548ACOVER, INSTRUMENT PANEL HOLE
main55548-06080-B0i201706-201809
NEUTRAL WARM GRAY,TRIM40
main55548-06080-B0i201706-201809
HEAD UP DISPLAY-WITH,NEUTRAL WARM GRAY,TRIM40
main55548-06080-C0i201706-201809
BLACK,TRIM1#,2#,3#
main55548-06080-C0i201706-201809
BLACK,TRIM1#,2#,40
main55548-06080-C0i201706-201809
HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#,40
main55548-06080-C0i201706-201809
HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#,3#
main55548-06081i201809-201909
HEAD UP DISPLAY-WITH
main55548-06081i201809-202010
main55548-06081i202010
DRIVER ASSIST PACKAGE
55981GARNISH, DEFROSTER NOZZLE, NO.1
main55981-06110-B0i201706-201809
NEUTRAL WARM GRAY,TRIM40
sub55981-06111
main55981-06110-C0i201706-201809
BLACK,TRIM1#,2#
sub55981-06111
main55981-06110-C0i201706-201809
BLACK,TRIM1#,2#,3#
sub55981-06111
main55981-06110-C0i201706-201809
BLACK,TRIM1#,2#,40
sub55981-06111
main55981-06111i201809-202010
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-06230i201706-202010
8202
8301
9008011699
main90080-11699¥110
9008015073
main90080-15073
90105A0343
main90105-A0343
90119A0105
main90119-A0105
90119A0261
main90119-A0261
90178A0023
main90178-A0023
90178A0024
main90178-A0024
9017906278
main90179-06278¥100
9018305094
main90183-05094¥90
90183A0002
main90183-A0002
9046705171
main90467-05171¥60

32 parts on this diagram · 12 diagrams in section
