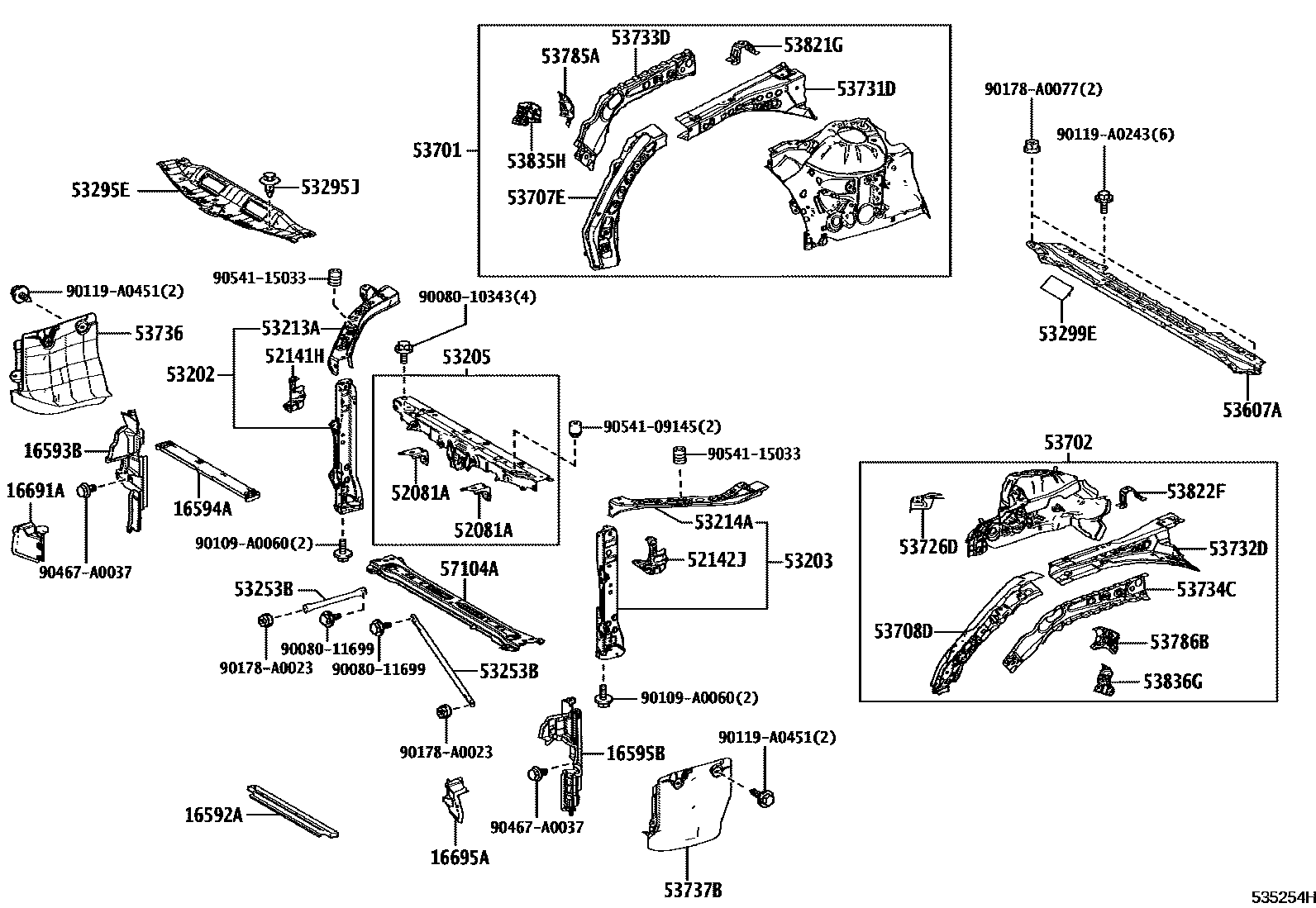

FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT & FENDER APR0002 1RADIATOR SUPPORT & FENDER APR0003 1RADIATOR SUPPORT & FENDER APR0004 1RADIATOR SUPPORT & FENDER APR0005 1RADIATOR SUPPORT & FENDER APR0006 1RADIATOR SUPPORT & FENDER APR0007 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0010iA25#,2GRFKS..AXVA70,AXVH7#,GSV70201706-202010

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F0010iA25AFXS..AXVH7#..LE,XLE201706-202010

main16593-F0050iA25AFKS..AXVA75..LE,XLE201706-202010

main16593-F0060iA25AFKS,2GRFKS..AXVA70,GSV70..SE,XSE201706-202010

main16593-F0070iA25AFXS..AXVH7#..SE201706-202010

main16593-F0340iA25AFXS..AXVH7#..LE,XLE202010

main16593-F0350iA25AFKS,2GRFKS..AXVA7#,GSV70..LE,XLE202010

main16593-F0360iA25AFXS..AXVH7#..SE,XSE202010

main16593-F0370iA25AFKS,2GRFKS..AXVA7#,GSV70..SE,XSE202010

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0010iA25#,2GRFKS..AXVA70,AXVH7#,GSV70201706-202010

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0010iA25AFXS..AXVH7#..LE,XLE201706-202010

main16595-F0050iA25AFKS,2GRFKS..AXVA70,GSV70..LE,N,XLE201706-202010

main16595-F0060iA25AFKS..AXVA75..SE,XSE201706-202010

main16595-F0070iA25AFXS..AXVH7#..SE201706-202010

main16595-F0360iA25AFXS..AXVH7#..LE,XLE202010

main16595-F0370iA25AFKS,2GRFKS..AXVA7#,GSV70..LE,XLE202010

main16595-F0380iA25AFXS..AXVH7#..SE,XSE202010

main16595-F0390iA25AFKS,2GRFKS..AXVA7#,GSV70..SE,XSE202010

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-F0010iA25AFKS..AXVA75..LE,XLE201706-202010

main16691-F0030iA25#,2GRFKS..AXVA70,AXVH7#,GSV70..SE,XSE201706-202010

main16691-F0100iA25#,2GRFKS..AXVA7#,AXVH7#,GSV70..LE,XLE202010

main16691-F0150iA25#,2GRFKS..AXVA7#,AXVH7#,GSV70..SE,XSE202010

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-F0010iA25#,2GRFKS..AXVA70,AXVH7#,GSV70..LE,N,XLE201706-202004

sub16695-F0011

main16695-F0011iA25#,2GRFKS..AXVA70,AXVH7#,GSV70..LE,N,XLE202004-202010

main16695-F0030iA25#,2GRFKS..AXVA70,AXVH7#,GSV70..SE,XSE201706-202004

sub16695-F0031

main16695-F0031iA25#,2GRFKS..AXVA70,AXVH7#,GSV70..SE,XSE202004-202010

main16695-F0100iA25#,2GRFKS..AXVA7#,AXVH7#,GSV70..LE,XLE202010

main16695-F0160iA25#,2GRFKS..AXVA7#,AXVH7#,GSV70..SE,XSE202010

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52081-06010iAXVA70,AXVH7#,GSV70201706-202010

52141HARM, FRONT BUMPER, UPPER RH

main52141-06170iAXVA70,AXVH7#,GSV70201706-202010

52142JARM, FRONT BUMPER, UPPER LH

main52142-06160iAXVA70,AXVH7#,GSV70201706-202010

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-06230iAXVA75¥7,700201706-202007

sub53202-06231

main53202-06231iAXVA75202008-202010

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-06270iAXVA70,AXVH7#,GSV70¥6,400201706-202010

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-06901iAXVA7#,AXVH7#,GSV70¥8,900201706-202010

53213ASUPPORT, RADIATOR, UPPER RH

main53213-06900iAXVA75201706-202008

sub53213-06905

main53213-06905iAXVA7#,AXVH7#,GSV70202008-202010

53214ASUPPORT, RADIATOR, UPPER LH

main53214-06900iAXVA70,AXVH7#,GSV70201706-202010

53253BBRACKET, RADIATOR MOUNTING, UPPER

main53253-06010iAXVA70,AXVH7#,GSV70201706-202010

53295ESEAL, COOL AIR INTAKE DUCT

main53295-06190iAXVA70,AXVH7#,GSV70201706-202010

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-07217iAXVA75¥80201706-202010

53299EPLATE, COOL AIR INTAKE DUCT

main53299-06010iAXVA70,AXVH7#,GSV70201706-202010

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-06010iAXVA70,AXVH7#,GSV70201706-202010

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-06260iAXVA70,AXVH7#,GSV70201706-202010

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-06240iAXVA70,AXVH7#,GSV70201706-202010

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-06060iAXVA70,AXVH7#,GSV70201706-202010

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-06010iAXVA70,AXVH7#,GSV70201706-202010

53726DAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-06090iAXVA70,AXVH7#,GSV70201706-202010

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-06190iAXVA70,AXVH7#,GSV70201706-202010

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-06180iAXVA70,AXVH7#,GSV70201706-202010

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-06150iAXVA70,AXVH7#,GSV70201706-202010

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-06150iAXVA70,AXVH7#,GSV70201706-202010

53736SEAL, FRONT FENDER APRON, RH

main53736-06070iAXVA70,AXVH7#,GSV70201706-202010

53737BSEAL, FRONT FENDER APRON, LH

main53737-06130iAXVA70,AXVH7#,GSV70201706-202010

53785AGUSSET, FRONT FENDER APRON, UPPER RH

main53785-06010iAXVA70,AXVH7#,GSV70201706-202010

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-06010iAXVA70,AXVH7#,GSV70201706-202010

53821GBRACKET, FRONT FENDER, REAR RH

main53821-06140iAXVA70,AXVH7#,GSV70201706-202010

53822FBRACKET, FRONT FENDER, REAR LH

main53822-06130iAXVA70,AXVH7#,GSV70201706-202010

53835HBRACE, FRONT FENDER TO EXTENSION, RH

main53835-06130iAXVA70,AXVH7#,GSV70201706-202010

53836GBRACE, FRONT FENDER TO EXTENSION, LH

main53836-06140iAXVA70,AXVH7#,GSV70201706-202010

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-06060iAXVA70,AXVH7#,GSV70201706-202010

9008010343

main90080-10343

9008011699

main90080-11699¥110

90109A0060

main90109-A0060

90119A0243

main90119-A0243

90119A0451

main90119-A0451

90178A0023

main90178-A0023

90178A0077

main90178-A0077

90467A0037

main90467-A0037

9054109145

main90541-09145¥160

9054115033

main90541-15033¥200

47 parts on this diagram · 7 diagrams in section
