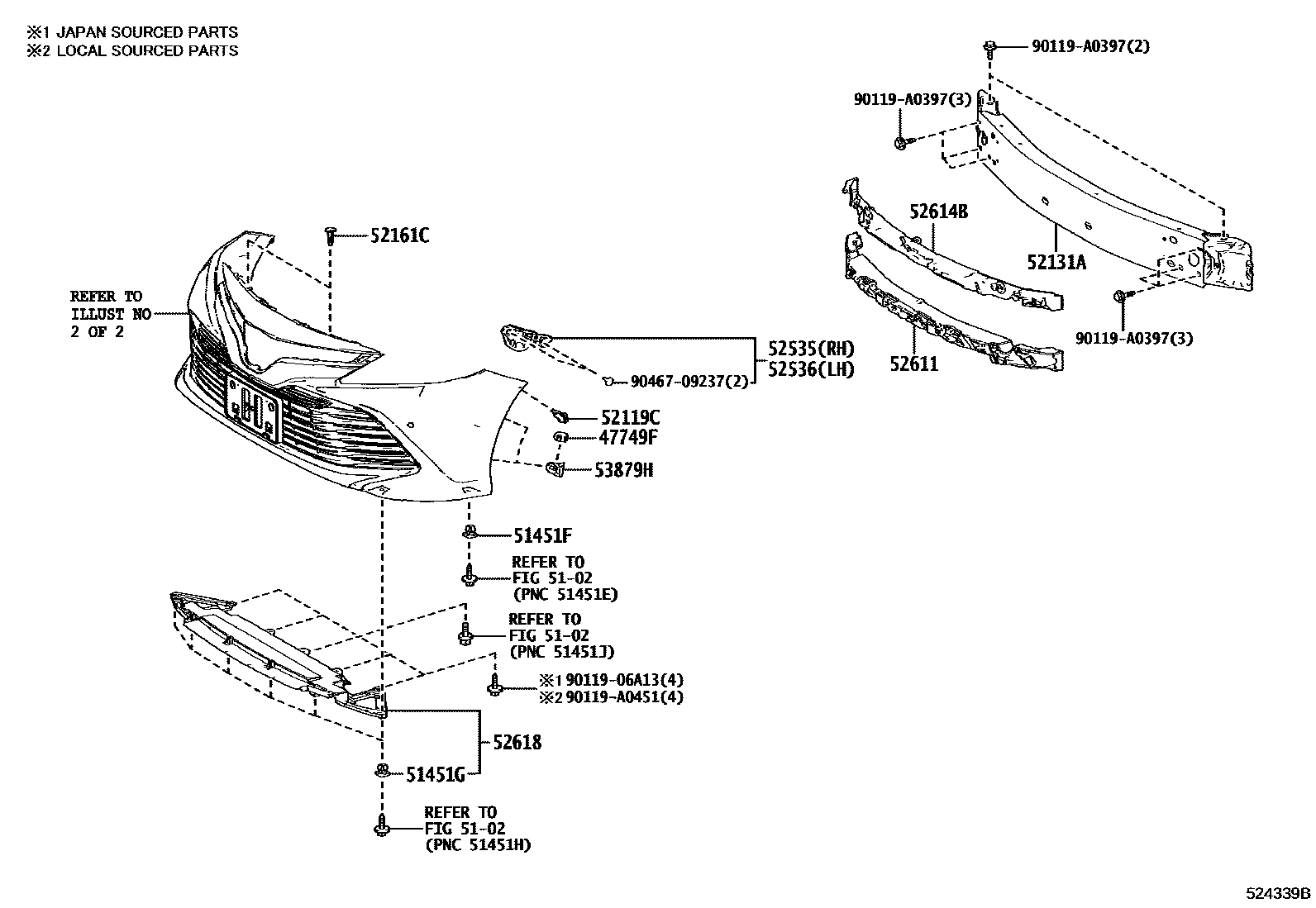

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1TRD PACKAGE 0006 1TRD PACKAGE 0007 1 0008 1 0009 1 0010 1

47749FCLIP, PIN HOLD

main47749-33030iAXVA75201706-202010

5102

51451FGROMMET, NO.1

main90189-06237iAXVA70,AXVH7#,GSV70201706-202010

51451GGROMMET, NO.2

main90189-06237iAXVA75201706-202010

52119CCLIP, FRONT BUMPER COVER

main90467-05170iAXVA7#,AXVH7#,GSV70201706-202010

52131AREINFORCEMENT, FRONT BUMPER

main52021-06160iAXVA75201706-202010

main52021-06170iAXVH7#202008-202010

52161CPIECE, FRONT BUMPER

main52161-02020iAXVA70,AXVH7#,GSV70201706-202010

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-06210iAXVA70,AXVH7#,GSV70201706-202010

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-06210iAXVA70,AXVH7#,GSV70201706-202010

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06460iAXVA75201706-202010

sub52611-06570

main52611-06570iAXVA7#,AXVH7#,GSV70202006-202010

52614BABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-06010iAXVA70,AXVH7#,GSV70201706-202010

52618ABSORBER, FRONT BUMPER, LOWER

main52618-06040iAXVA75201706-202010

53879HRETAINER, FRONT FENDER LINER

main53879-33030iAXVA70,AXVH7#,GSV70201706-202010

9011906A13

main90119-06A13

90119A0397

main90119-A0397

90119A0451

main90119-A0451

9046709237

main90467-09237

17 parts on this diagram · 10 diagrams in section
