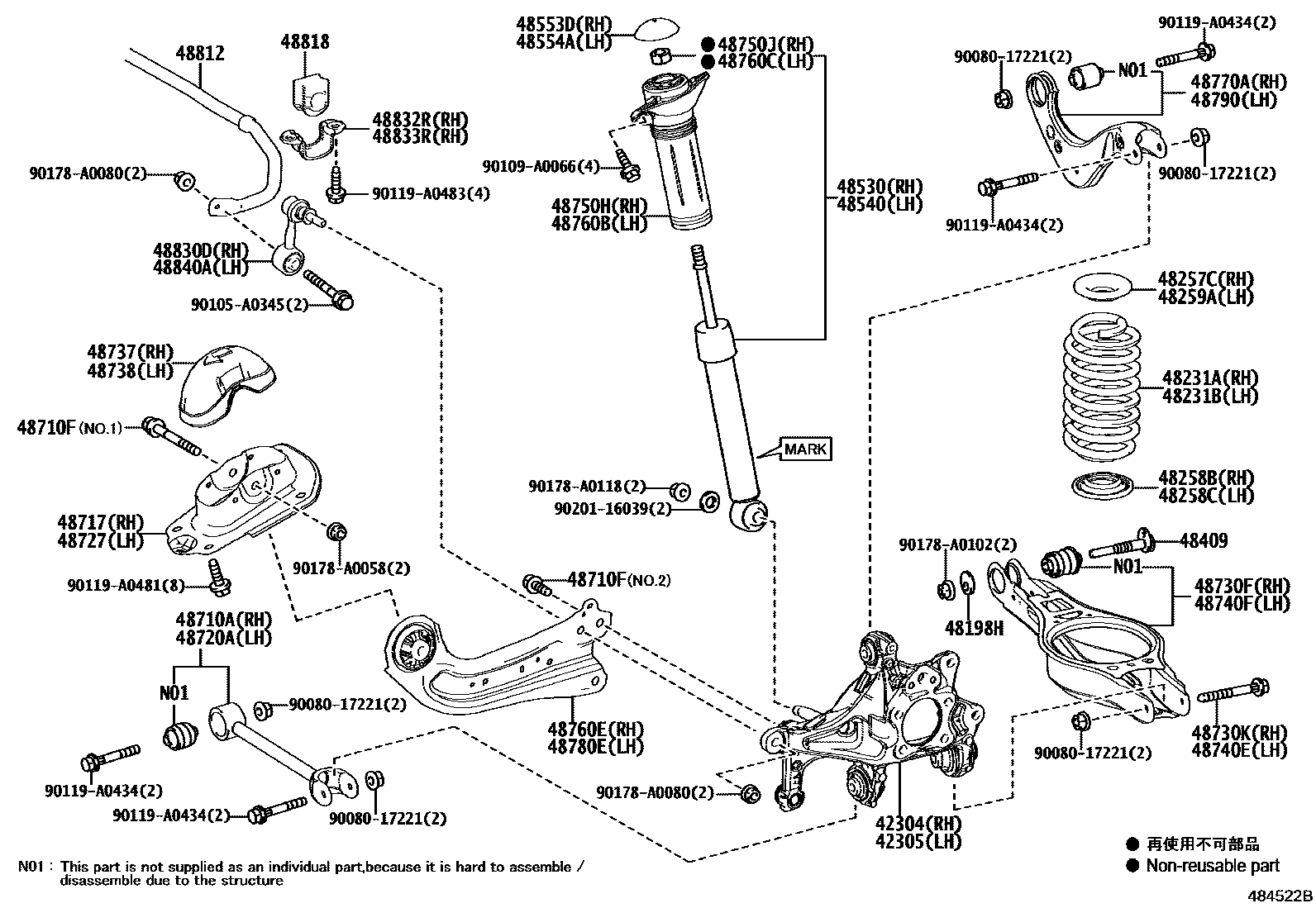

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-06270iAXVA70,AXVH7#,GSV70201706-202010

main42304-06320iAXVA75202003-202010

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-06270iAXVA70,AXVH7#,GSV70201706-202010

main42305-06320iAXVA75202003-202010

48198HCAM, CAMBER ADJUST, NO.2

main48198-07010iAXVA70,AXVH7#,GSV70201808-202010

main48198-47010iAXVA70,AXVH7#,GSV70201706-201807

48231ASPRING, COIL, REAR RH

main48231-06880iAXVA70..LE,N,XLE201706-202010

main48231-06890iAXVA70,GSV70..SE,XSE202010

main48231-06890iAXVA70,GSV70..SE,XSE201706-202010

TRD PACKAGE

main48231-06A00iAXVA70..LE,N,SE,XLE201706-202010

MEXICO SPEC

main48231-06A20iAXVH7#..LE,XLE201706-202010

main48231-06A30iAXVH7#..SE,XSE201706-202010

main48231-06B30iAXVA75..LE,XLE202003-202010

main48231-06B40iAXVA75..SE,XSE202003-202010

48231BSPRING, COIL, REAR LH

main48231-06880iAXVA70..LE,N,XLE201706-202010

main48231-06890iAXVA70,GSV70..SE,XSE202010

main48231-06890iAXVA70,GSV70..SE,XSE201706-202010

TRD PACKAGE

main48231-06A00iGSV70..XLE201706-202010

MEXICO SPEC

main48231-06A20iAXVH7#..LE,XLE201706-202010

main48231-06A30iAXVH7#..SE201706-202010

main48231-06B30iAXVA75..LE,XLE202003-202010

main48231-06B40iAXVA75..SE,XSE202003-202010

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-06030iAXVA70,AXVH7#,GSV70201706-202010

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06230iAXVA70,AXVH7#,GSV70201706-202010

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06230iAXVA75201706-202010

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-06030iAXVA7#,AXVH7#,GSV70201706-202010

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-06010iAXVA70,AXVH7#,GSV70201808-202010

main48409-47011iAXVA70,AXVH7#,GSV70201706-201807

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-8Z054iAXVA70,GSV70..LE,XLE201706-202010

MARK 48530-06830

main48530-8Z055iGSV70..XSE201706-202010

MARK 48530-06840,TRD PACKAGE

main48530-8Z055iAXVA70,GSV70..SE,XSE201706-202010

MARK 48530-06840

main48530-8Z056iAXVH7#..LE,XLE201706-202010

MARK 48530-06850

main48530-8Z057iAXVH7#..SE201706-202010

MARK 48530-06A40

main48530-8Z135iAXVA75..LE,XLE202003-202010

MARK 48530-06A90

main48530-8Z136iAXVA75..SE,XSE202003-202010

MARK 48530-06B00

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-8Z054iAXVA70,GSV70..LE,XLE201706-202010

MARK 48530-06830

main48530-8Z055iAXVA70,GSV70..SE,XSE201706-202010

MARK 48530-06840,TRD PACKAGE

main48530-8Z055iGSV70..XSE201706-202010

MARK 48530-06840

main48530-8Z056iAXVH7#..LE,XLE201706-202010

MARK 48530-06850

main48530-8Z057iAXVH7#..SE201706-202010

MARK 48530-06A40

main48530-8Z135iAXVA75..LE,XLE202003-202010

MARK 48530-06A90

main48530-8Z136iAXVA75..SE,XSE202003-202010

MARK 48530-06B00

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-06010iAXVA70,AXVH7#,GSV70201706-202010

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-06010iAXVA7#,AXVH7#,GSV70201706-202010

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-06160iAXVA70..SE201706-202010

MEXICO SPEC

main48710-06170iAXVH7#;AXVA70,GSV70..SE,XSE201706-202010

main48710-0R050iAXVA75202003-202010

48710FBOLT(FOR REAR TRAILING ARM)

main90105-A0346iAXVA70,AXVH7#,GSV70201706-202010

NO.2

main90105-A0365iAXVA7#,AXVH7#,GSV70201706-202010

NO.1

main90119-A0346iAXVA75202003-202010

NO.2

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-06030iAXVA70,AXVH7#,GSV70201706-202010

main48717-06160iAXVA75202003-202010

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-06160iAXVA70,GSV70..LE,XLE201706-202010

MEXICO SPEC

main48710-06170iAXVH7#;AXVA70,GSV70..SE,XSE201706-202010

main48710-0R050iAXVA75202003-202010

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-06060iAXVA70,AXVH7#,GSV70201706-202010

main48727-06100iAXVA75202003-202010

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-06120iAXVA70,AXVH7#,GSV70201706-202010

main48730-0R050iAXVA75202003-202105

main48730-0R050iAXVA75202105

(L)

main48730-42060iAXVA75202105

(J)

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-A0433iAXVA70,AXVH7#,GSV70201706-202010

48737COVER, REAR SUSPENSION ARM, RH

main48753-06080iAXVA75201706-202010

48738COVER, REAR SUSPENSION ARM, LH

main48753-06090iAXVA70,AXVH7#,GSV70201706-202010

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-A0433iAXVA70,AXVH7#,GSV70201706-202010

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-06120iAXVA70,AXVH7#,GSV70201706-202010

main48730-0R050iAXVA75202003-202105

main48730-0R050iAXVA75202105

(L)

main48730-42060iAXVA75202105

(J)

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-06300iAXVA75201706-202010

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-A0008iAXVA75201901-202010

(L)

main94130-61200iAXVA7#,AXVH7#,GSV70201901-202010

(J)

main94130-61200iAXVA70,AXVH7#,GSV70201706-201901

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-06300iAXVA75201706-202010

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-A0008iAXVA75201901-202010

(L)

main94130-61200iAXVA70,AXVH7#,GSV70201706-201901

main94130-61200iAXVA75201901-202010

(J)

48760EARM ASSY, TRAILING, REAR RH

main48760-06130iAXVA70..SE201706-202010

MEXICO SPEC

main48760-06310iAXVA75,AXVH7#;AXVA70,GSV70..SE,XSE201706-202010

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-06010iAXVA75201706-202010

48780EARM ASSY, TRAILING, REAR LH

main48780-06110iAXVA70..SE201706-202010

MEXICO SPEC

main48780-06120iAXVA75201706-202010

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-06010iAXVA75201706-202010

48812BAR, STABILIZER, REAR

main48812-06220iAXVA75202003-202010

main48812-06240iAXVA70..SE201706-202010

MEXICO SPEC

main48812-06250iAXVA70,GSV70..SE,XSE201706-202010

48818BUSH, STABILIZER, REAR

main48818-06330iAXVA70,AXVH7#,GSV70201706-202010

main48818-0R050iAXVA75202003-202010

48830DLINK ASSY, REAR STABILIZER, RH

main48830-06090iAXVA70,AXVH7#,GSV70201706-202010

main48830-0R030iAXVA75202003-202010

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-06060iAXVA70,AXVH7#,GSV70201706-202010

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48832-06060iAXVA70,AXVH7#,GSV70201706-202010

48840ALINK ASSY, REAR STABILIZER, LH

main48830-06090iAXVA70,AXVH7#,GSV70201706-202010

main48830-0R030iAXVA75202003-202010

9008017221

main90080-17221

90105A0345

main90105-A0345

90109A0066

main90109-A0066

90119A0434

main90119-A0434

90119A0481

main90119-A0481

90119A0483

main90119-A0483

90178A0058

main90178-A0058

90178A0080

main90178-A0080

90178A0102

main90178-A0102

90178A0118

main90178-A0118

9020116039

main90201-16039

50 parts on this diagram · 2 diagrams in section
