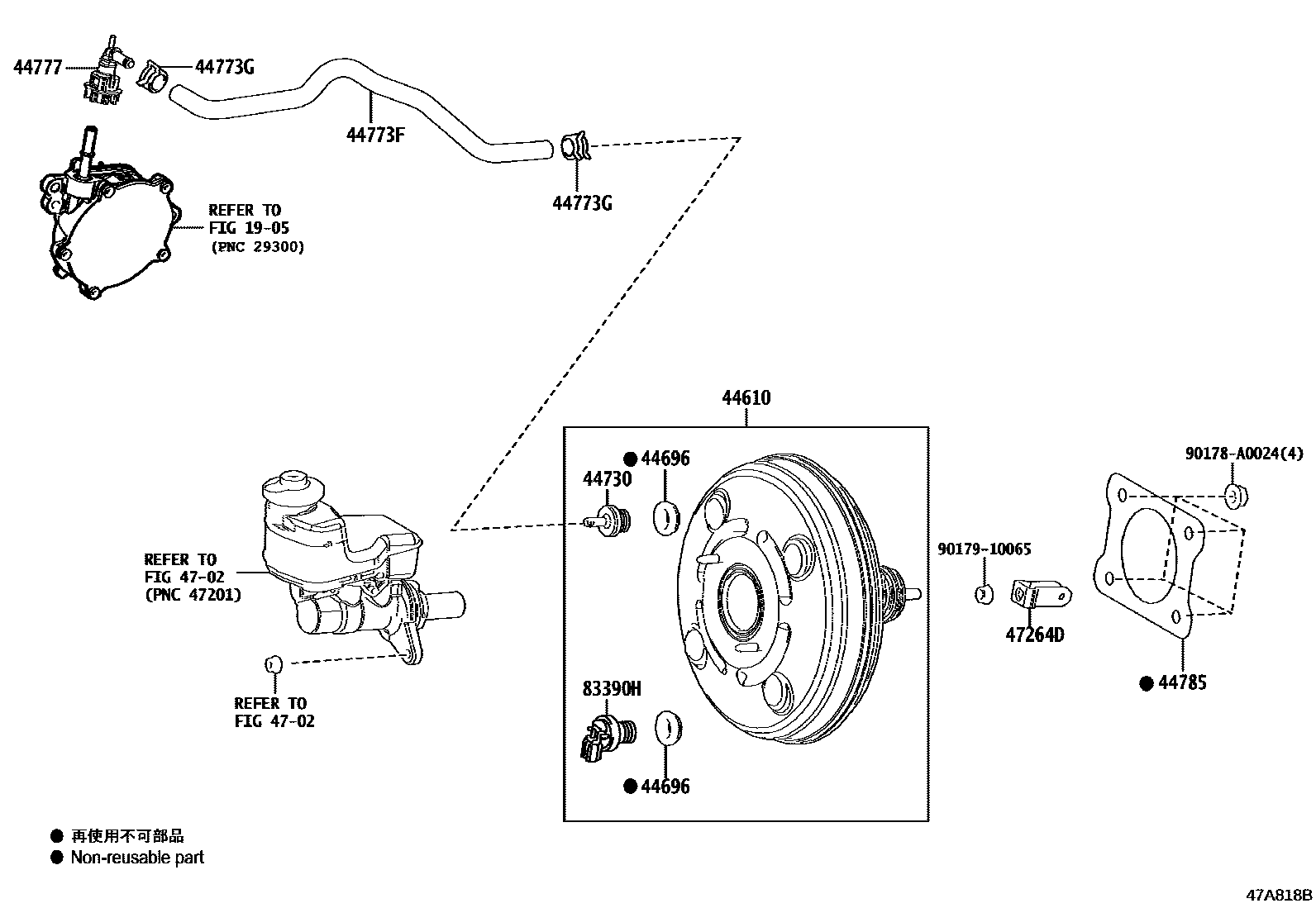

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-06670iAXVA70,GSV70201706-202010

44696GROMMET, CHECK VALVE

main90080-48071iAXVA70,GSV70201706-202010

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iAXVA7#,GSV70201706-202010

44773FHOSE, UNION TO CHECK VALVE

main44773-06170iAXVA70201706-201807

main44773-06180iGSV70201706-202010

main44773-33180iAXVA7#201807-202010

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iAXVA75201706-202010

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-06010iAXVA70201706-201807

main44777-33010iAXVA70201807-202010

44785GASKET, BRAKE BOOSTER

main44785-02060iAXVA7#,GSV70201706-202010

(L)

main44785-12040iAXVA75201706-202010

(J)

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-33030iAXVA70,GSV70201706-202010

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iAXVA70,GSV70201706-202010

90178A0024

main90178-A0024

9017910065

main90179-10065

13 parts on this diagram · 2 diagrams in section
