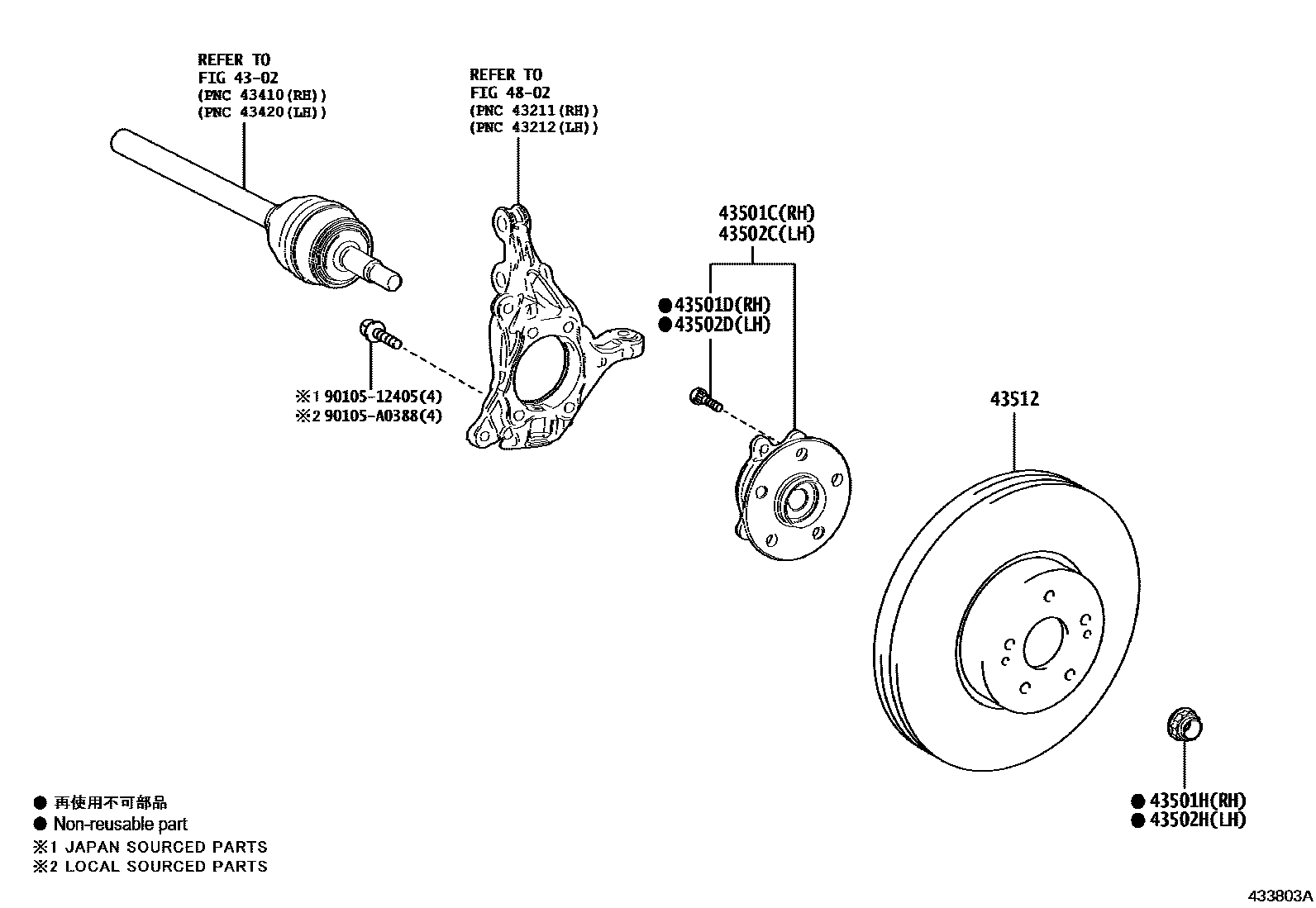

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-06010iAXVA70..SE,XSE;AXVA75..LE,XLE202010-202301

main43550-06050iGSV70202010

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iAXVA70,AXVH7#,GSV70201706-202010

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90080-17238iAXVA70,AXVH7#,GSV70201706-202010

(L)

main90177-22001iAXVA70,AXVH7#,GSV70201706-202010

(J)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-06010iAXVA70201706-202010

main43550-06050iAXVH7#,GSV70201706-202010

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iAXVA75202003-202010

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90080-17238iAXVA75202003-202010

(L)

main90177-22001iAXVA7#,AXVH7#,GSV70202010

(J)

43512DISC, FRONT

main43512-06200×2iAXVA70,AXVH7#,GSV70201706-202010

main43512-48130×2iGSV70..XSE201909-202010

TRD PACKAGE

4802

9010512405

main90105-12405

90105A0388

main90105-A0388

11 parts on this diagram · 1 diagram in section
