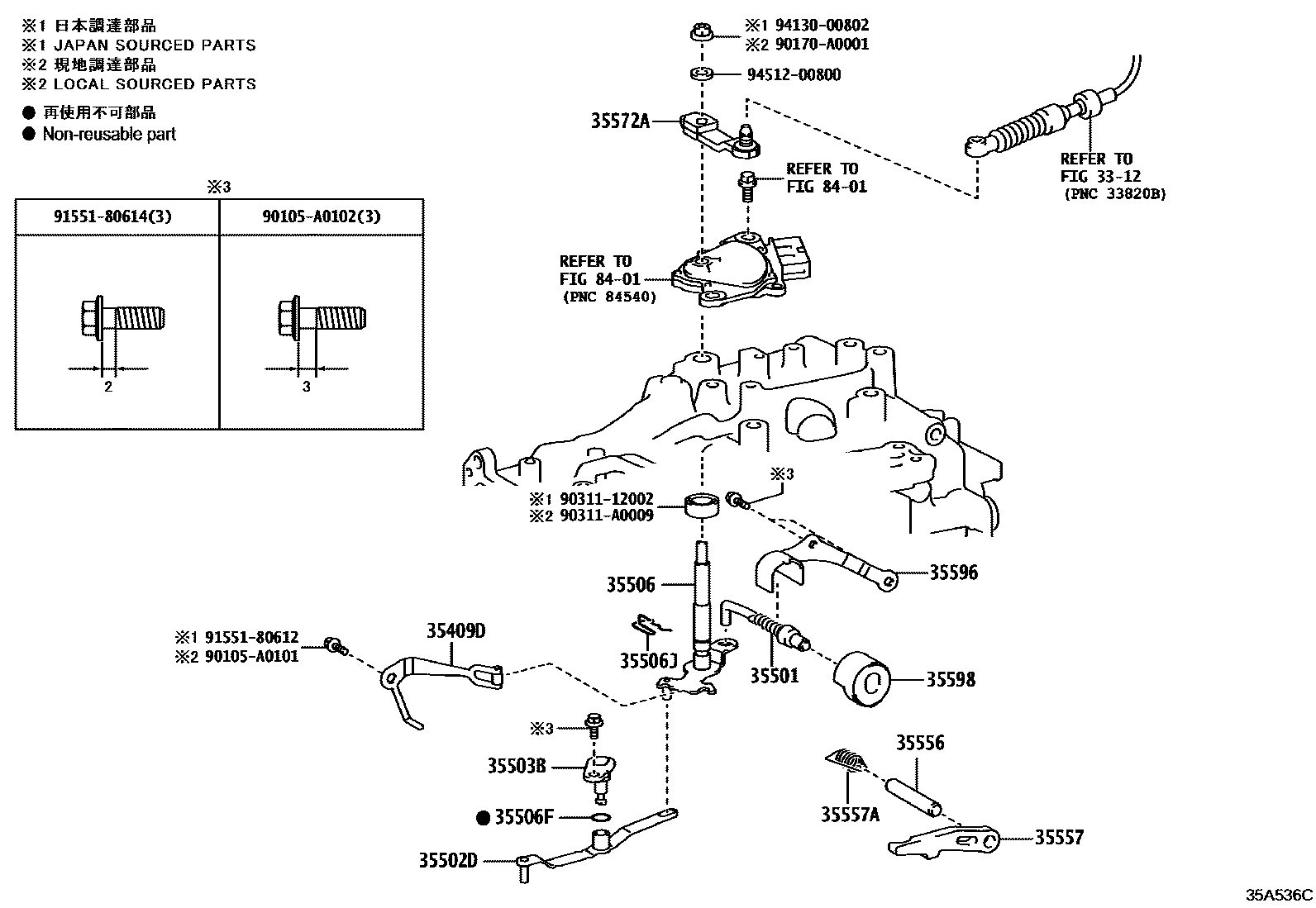

THROTTLE LINK & VALVE LEVER (ATM)

3312

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-48060iGSV70¥400201706-202010

35501ROD SUB-ASSY, PARKING LOCK

main35501-33030iAXVA7#¥1,240201706-202010

main35501-48040iGSV70¥1,210201706-202010

35502DLEVER SUB-ASSY, MANUAL VALVE LINK

main35502-33010iAXVA70¥230201706-202010

main35502-48010iGSV70¥230201706-202010

35503BSHAFT SUB-ASSY, MANUAL VALVE LINK

main35503-48010iGSV70¥300201706-202010

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-06021iGSV70202012-202111

TYPE C:REFER 35-01

sub35506-48011¥1,240

main35506-06022iGSV70202111-202210

TYPE C:REFER 35-01

main35506-06030iAXVA70201808-202111

TYPE C:REFER 35-01

main35506-06031iAXVA70202111-202210

TYPE C:REFER 35-01

main35506-33030iAXVA70201706-202202

TYPE D:REFER 35-01

main35506-33030iAXVA70201706-201807

TYPE C:REFER 35-01

main35506-33031iAXVA70202202-202210

TYPE D:REFER 35-01

main35506-33040iAXVA75202003-202010

main35506-33040iAXVA70201809-202205

TYPE A:REFER 35-01

main35506-33041iAXVA75202205

TYPE A:REFER 35-01

main35506-48010iGSV70¥1,240201706-201905

sub35506-48011¥1,240

main35506-48011iGSV70¥1,240201906-202004

main35506-48021iGSV70202006-202010

main35506-48021iGSV70202010-202202

TYPE A:REFER 35-01

main35506-48022iGSV70¥930202202

TYPE A:REFER 35-01

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90301-09173iGSV70¥140201706-202010

main90301-09173iAXVA70¥140201706-202010

(J)

main90301-A0063iGSV70201706-202210

(L)

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09004iGSV70¥60201706-202010

35556SHAFT, PARKING LOCK PAWL

main35556-06010iAXVA70201706-202010

TYPE C:REFER 35-01

sub35556-48030¥520

main35556-48030iGSV70¥520202012-202210

TYPE C:REFER 35-01

main35556-48030iGSV70¥520201706-202004

main35556-48030iAXVA70¥520201706-202010

TYPE D:REFER 35-01

main35556-48030iAXVA70¥520202010

TYPE C:REFER 35-01,TYPE D:REFER 35-01

main35556-48040iGSV70202003-202010

main35556-48040iAXVA70201809-202010

TYPE A:REFER 35-01

35557PAWL, PARKING LOCK

main35557-33040iAXVA70¥2,810201706-202010

main35557-48040iGSV70¥2,810201706-202010

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-29030iAXVA70¥180201706-202010

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-48050iAXVA70¥810201706-202010

sub35572-48051¥740

main35572-48050iAXVA70¥810202010-202111

TYPE C:REFER 35-01,TYPE D:REFER 35-01

sub35572-48051¥740

main35572-48050iAXVA70¥810202010-202111

TYPE B:REFER 35-01

sub35572-48051¥740

main35572-48050iAXVA70¥810202010-202111

TYPE A:REFER 35-01

sub35572-48051¥740

main35572-48050iGSV70¥810202012-202111

TYPE C:REFER 35-01

sub35572-48051¥740

main35572-48051iAXVA75¥740202111

TYPE A:REFER 35-01

main35572-48051iGSV70¥740202111-202210

TYPE C:REFER 35-01

main35572-48051iAXVA70¥740202111

TYPE C:REFER 35-01,TYPE D:REFER 35-01

main35572-48051iAXVA70¥740202111

TYPE B:REFER 35-01

35596PLATE, PAWL STOPPER

main35596-06010iGSV70202012-202210

(L)

main35596-33020iAXVA70201706-202010

main35596-48030iGSV70¥380201706-202010

main35596-48030iGSV70¥380202010

(J)

35598SLEEVE, PARKING LOCK

main35598-06020iAXVA70201706-202210

(L)

main35598-48040iAXVA7#,GSV70¥770201706-202010

(J)

main35598-48040iGSV70¥770201706-202010

8401

90105A0101

main90105-A0101

90105A0102

main90105-A0102¥60

90170A0001

main90170-A0001

9031112002

main90311-12002¥270

90311A0009

main90311-A0009

9155180612

main91551-80612¥60

9155180614

main91551-80614¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

24 parts on this diagram · 1 diagram in section
