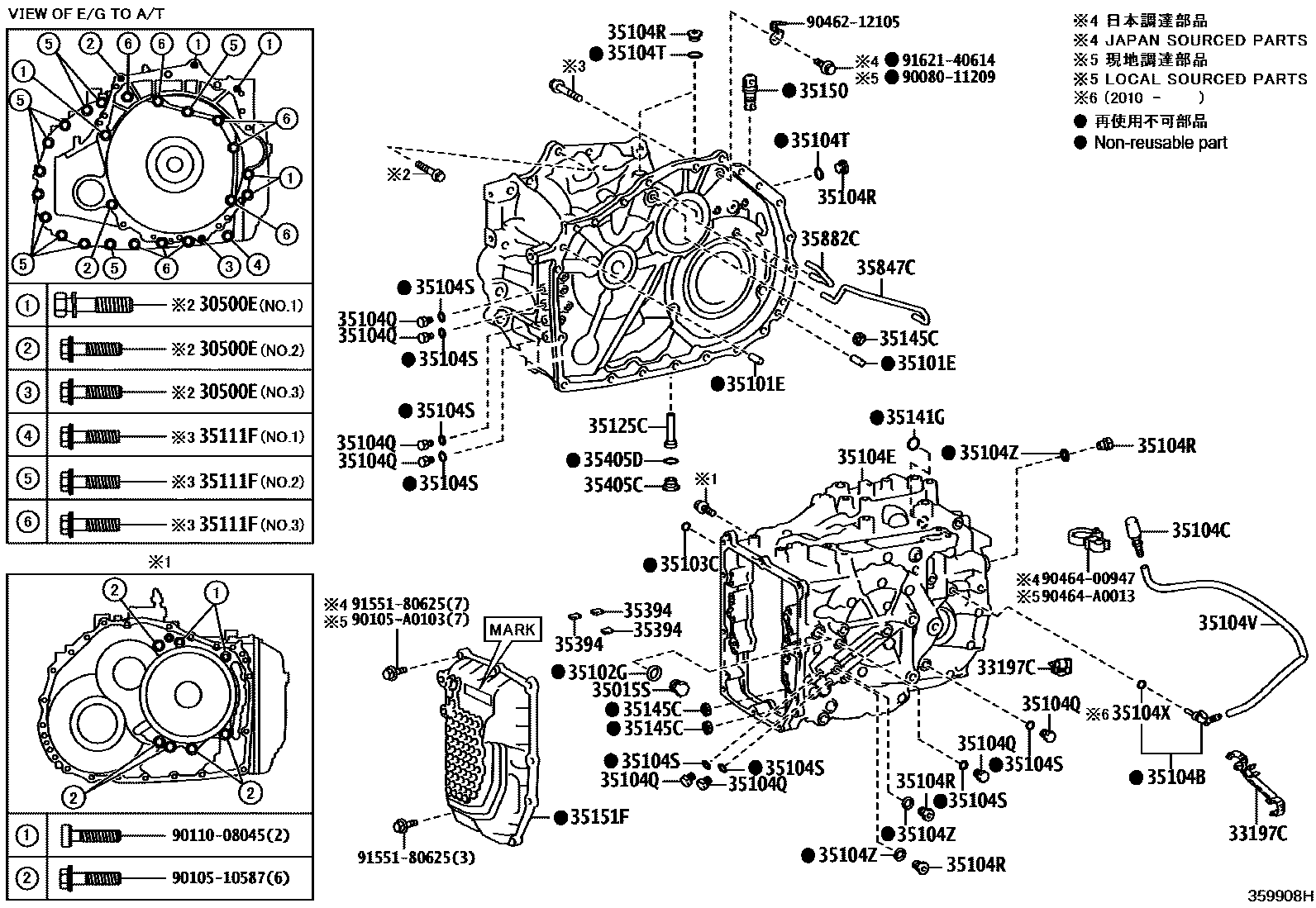

TRANSMISSION CASE & OIL PAN (ATM)

0001 1UB80E 0002 1UB80F 0003 1UA80E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-10338iGSV70201706-202010

*10-1.25PX41-30,NO.2

main90080-11310×7iGSV70201706-202010

*12-1.25PX55-30,NO.1

main90105-10425iGSV70202010

*10-1.25PX41-28,(J),NO.2

main90105-10591iAXVA70202010

*10-1.25PX45-36,(J),NO.1

main90105-A0225×2iAXVA70202010

*12-1.25PX50-30,(L),NO.3

main90105-A0269iAXVA70202010

*8-1.25PX35-22,(L),NO.3

main90105-A0393iAXVA70202010

*10-1.25PX45-36,(L),NO.2

main90119-12168×7iGSV70202010

*12-1.25PX55-30,(J),NO.1

main91552-81250×2iAXVA70202010

*12-1.25PX50-30,(J),NO.3

main91553-80830iAXVA70202010

*8-1.25PX35-22,(J),NO.3

33197CCLAMP, TRANSMISSION BREATHER

main33197-06010iAXVA70,GSV70201706-202010

main33197-33020iAXVA7#,GSV70202010

(J)

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iAXVA75202003-202010

(J)

main90341-A0003iAXVA7#202010

(L)

35101EPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)

main90250-10017×2iAXVA70201706-202010

TYPE C:REFER 35-01,TYPE D:REFER 35-01

main90250-10021×2iAXVA75202003-202010

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iAXVA75202010

(J)

main90430-A0003iGSV70202012-202210

(L)

35103CRING, O

main90301-06021iGSV70201706-202004

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03230iAXVA75202003-202010

main90930-A3009iGSV70202012-202210

(L)

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03216iAXVA70,GSV70201706-202010

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-06030iAXVA70201706-202010

TYPE C:REFER 35-01

main35104-06050iGSV70202012-202210

TYPE C:REFER 35-01

main35104-0R010iAXVA75202010

TYPE B:REFER 35-01

main35104-33130iAXVA70202010

TYPE D:REFER 35-01

main35104-33140iAXVA75202003-202010

TYPE A:REFER ILLUST.

main35104-48030iGSV70201706-202004

main35104-48040iGSV70202010

TYPE A:REFER 35-01

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×8iAXVA70201706-202010

(J)

main90341-A0001×8iAXVA7#202010

(L)

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×6iAXVA75202010

(J)

main90341-A0005×6iAXVA70201706-202010

(L)

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105×8iAXVA70202010

TYPE C:REFER 35-01

main90301-06196×8iAXVA70202010

TYPE A:REFER 35-01,TYPE D:REFER 35-01

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90430-14008×3iAXVA70201706-202010

35104VHOSE (FOR BREATHER PLUG)

main35121-33060iGSV70201706-202010

main35121-33070iAXVA75202003-202010

35104XRING, O (FOR BREATHER PLUG)

main90301-08015iGSV70202006-202010

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iAXVA70201706-202010

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-A0367×9iAXVA75202003-202010

*8-1.25PX40-22,(L),NO.1

main90105-A0430×11iAXVA75202010

*8-1.25PX35-22,(L),NO.2

main91551-00835×12iAXVA70202010

*8-1.25PX35-22,(J),NO.2

main91551-00840×6iAXVA70202010

*8-1.25PX40-22,(J),NO.1

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-06120iAXVA7#202010

(L)

main35125-06130iGSV70202012-202210

(L)

main35125-33110iAXVA70201706-202010

(J)

main35125-48090iGSV70202010

(J)

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10018iAXVA70202010

TYPE D:REFER 35-01

main90301-A0016iAXVA70201706-202010

TYPE C:REFER 35-01

35145CGASKET, TRANSAXLE CASE

main35145-07010×3iGSV70202012-202102

TYPE C:REFER 35-01

main35145-33010×3iGSV70202006-202010

main35145-33020×3iAXVA70202103

TYPE B:REFER 35-01

35150PLUG ASSY, TRANSMISSION CASE

main35150-45010iAXVA70,GSV70201706-202010

35151FCOVER, TRANSMISSION CASE, SIDE

main35151-06010iAXVA70201706-202010

MARK 35151-06010

main35151-33160iAXVA70,GSV70201706-201801

MARK 35151-33160

main35151-33161iGSV70202006-202010

MARK 35151-33161

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010×3iAXVA70201706-202010

TYPE C:REFER 35-01

main35394-48010×3iAXVA70201706-202010

TYPE D:REFER 35-01

35405CPLUG SUB-ASSY, W/HEAD STRAIGHT SCREW

main90341-18016iGSV70201706-201712

main90341-18023iAXVA75202010

(J)

main90341-A0009iAXVA75202003-202010

(L)

35405DRING, O (FOR STRAIGHT SCREW PLUG)

main90430-18008iAXVA70201706-202010

(J)

main90430-A0003iAXVA70201706-202010

(L)

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-06010iAXVA75202003-202010

TYPE B:REFER 35-01

main35847-48020iAXVA70202010

TYPE D:REFER 35-01

main35847-48030iAXVA70201809-202010

TYPE A:REFER 35-01

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-06030iAXVA70202010

TYPE B:REFER 35-01

main35882-48020iAXVA70201706-202010

TYPE D:REFER 35-01

main35882-48030iAXVA75202003-202010

TYPE A:REFER 35-01

9008011209

main90080-11209

9010510587

main90105-10587

90105A0103

main90105-A0103

9011008045

main90110-08045

9046212105

main90462-12105

9046400947

main90464-00947

90464A0013

main90464-A0013

9155180625

main91551-80625

9162140614

main91621-40614

36 parts on this diagram · 3 diagrams in section
