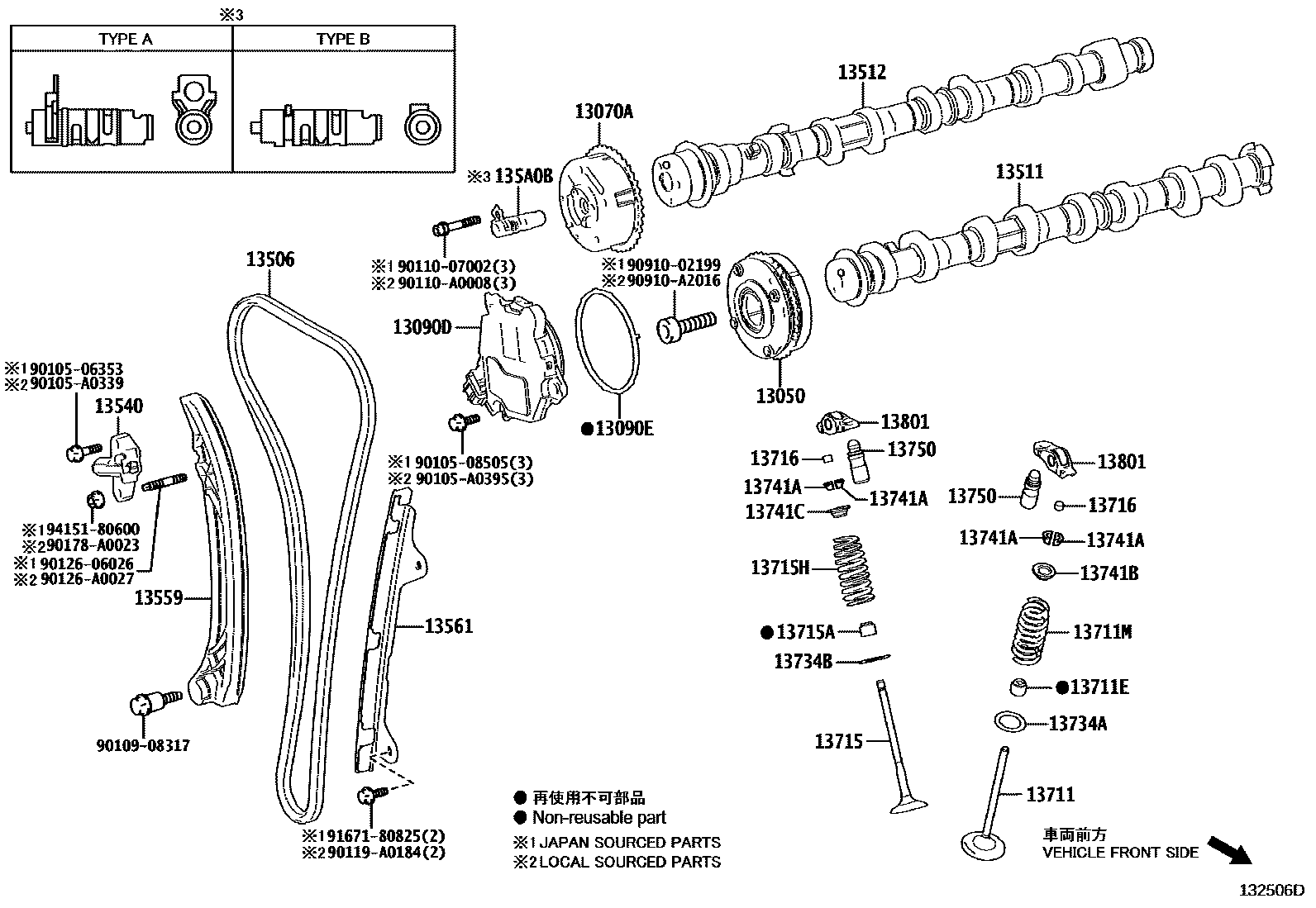

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
*132
*495
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
*132,PNC135A0B=T/P A
*132,PNC135A0B=T/P B
*132
*495
*495,PNC135A0B=T/P A
*495,PNC135A0B=T/P B
13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU
*132
*495
13090ERING, O(FOR CAM TIMING CONTROL MOTOR)
*495
*132
13506CHAIN SUB-ASSY
*132
*495
13540TENSIONER ASSY, CHAIN, NO.1
*132
*495
13559SLIPPER, CHAIN TENSIONER
*132
*495
135A0BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR INTAKE)
135A0BVALVE ASSY, CAMSHAFT TIMING
*132T/P A:REF.ILLUST
*132T/P B:REF.ILLUST
*132
*495T/P A:REF.ILLUST
*495
*495T/P B:REF.ILLUST
13711VALVE, INTAKE
*132
*495
13711ESEAL, INTAKE VALVE STEM OIL
*495
*132
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
*132
*495
*495
13715VALVE, EXHAUST
(L)
*132
(J)
*495
*495
13715ASEAL, EXHAUST VALVE STEM OIL
*495
*132
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
*132
*495
*495
13716CAP, VALVE STEM
*132
*495
13734SEAT, VALVE SPRING
(L)
(J)
13734ASEAT, INTAKE VALVE SPRING
*495
*132
13734BSEAT, EXHAUST VALVE SPRING
*495
*132
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
*132
*495
13741BRETAINER, INTAKE VALVE SPRING
*495
*132
13741CRETAINER, EXHAUST VALVE SPRING
*495
*132
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
*132
*495
9010506353
main90105-06353
9010508505
main90105-08505
90105A0339
main90105-A0339
90105A0395
main90105-A0395
9010908317
main90109-08317
9011007002
main90110-07002
90110A0008
main90110-A0008
90119A0184
main90119-A0184
9012606026
main90126-06026
90126A0027
main90126-A0027
90178A0023
main90178-A0023
9091002199
main90910-02199
90910A2016
main90910-A2016
9167180825
main91671-80825
9415180600
main94151-80600
43 parts on this diagram · 2 diagrams in section
