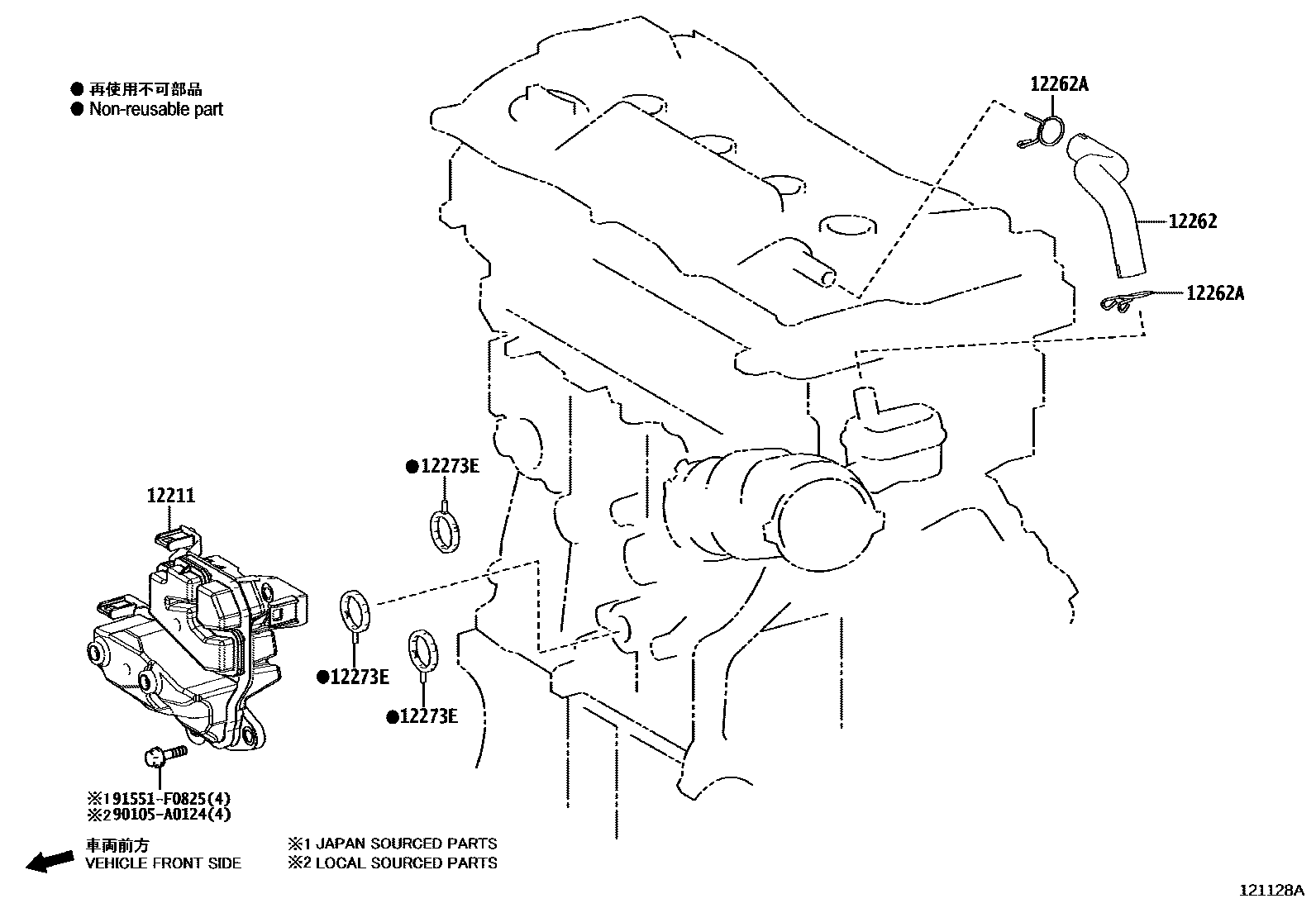

VENTILATION HOSE

0001 1 0002 1 0003 1

12211CASE, VENTILATION, NO.1

main12211-25010iA25AFKS..AXVA70201706-202007

*132

sub12211-25011

main12211-25011iA25AFKS..AXVA70202008-202204

*132

main12211-F0010iA25AFKS..AXVA75202003-202010

sub12211-F0011

main12211-F0010iA25#..AXVA70,AXVH7#201706-202010

*495

sub12211-F0011

main12211-F0011iA25#..AXVA7#,AXVH7#202010-202208

*495

12262HOSE, VENTILATION, NO.2

main12262-25030iA25AFKS..AXVA75201706-202010

main12262-25040iA25AFXS..AXVH7#201706-202010

main12262-31190i2GRFKS..GSV70201706-202010

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-A0028iA25#..AXVA70,AXVH7#201706-202010

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iA25#..AXVA7#,AXVH7#201709-202208

*495

main12273-24010iA25#..AXVA70,AXVH7#201709-202204

*132

main12273-24010iA25AFKS..AXVA75202003-202010

main12273-25010iA25#..AXVA70,AXVH7#201706-201708

*132

sub12273-24010

main12273-25010iA25AFKS..AXVA70201706-201708

*495

sub12273-24010

90105A0124

main90105-A0124

91551F0825

main91551-F0825

6 parts on this diagram · 3 diagrams in section
