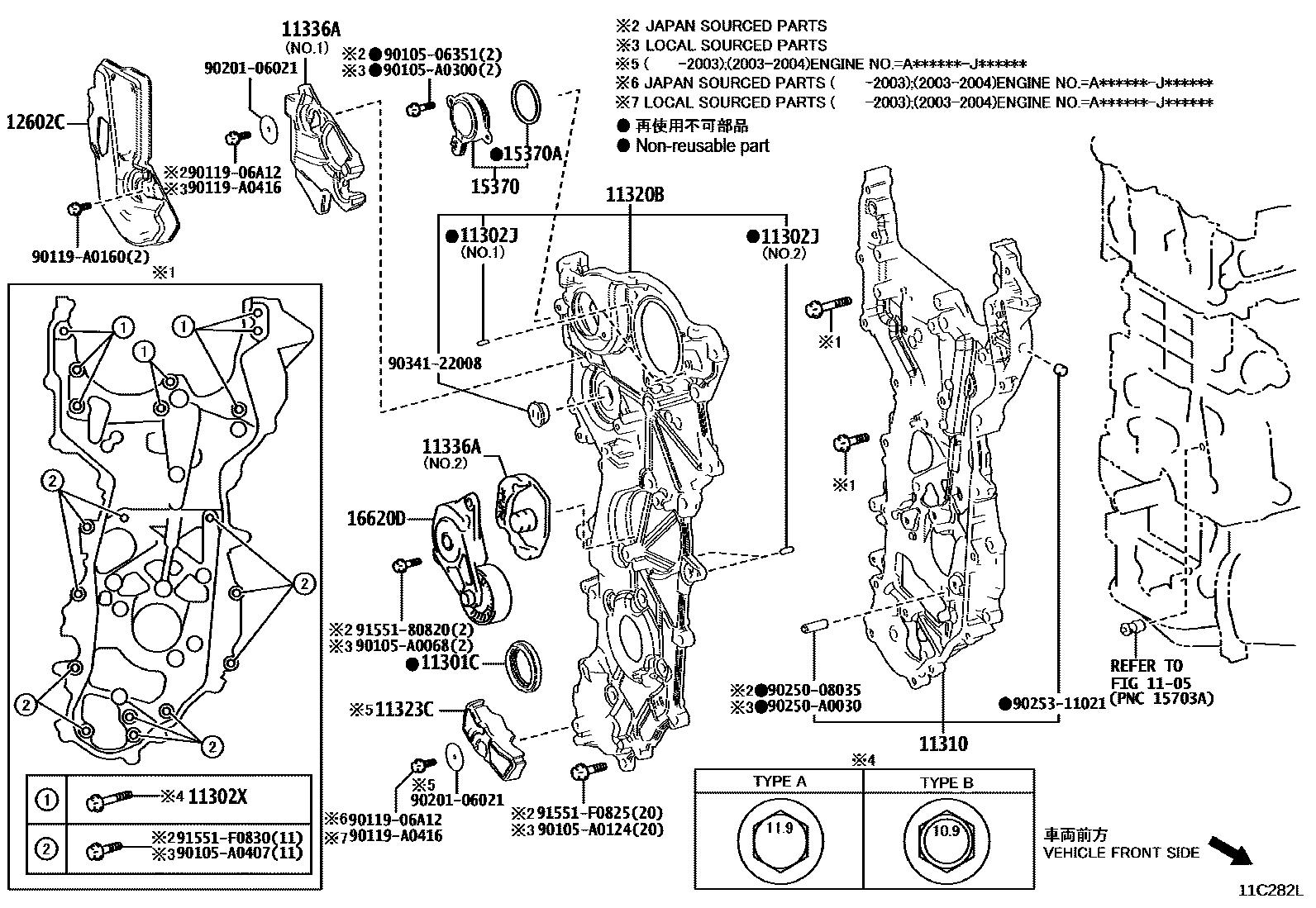

TIMING GEAR COVER & REAR END PLATE
1105
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
*132
*495
11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)
*132,NO.1:REFER ILL.
*132,NO.2:REFER ILL.
*495,NO.2:REFER ILL.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
*495,NO.1:REFER ILL.
11302XBOLT, FLANGE
*495T/P A:REF.ILLUST
*495
*495T/P B:REF.ILLUST
*132
*132T/P B:REF.ILLUST
*132T/P A:REF.ILLUST
11310COVER ASSY, TIMING CHAIN
*132
*495
11320BCOVER ASSY, TIMING CHAIN, NO.2
*132
*495
11323CCOVER, TIMING CHAIN, NO.3
*132
*495
11336AINSULATOR, TIMING GEAR COVER
*132,NO.1:REFER ILL.
NO.1:REFER ILLUST.
*495,NO.1:REFER ILL.
*132,NO.2:REFER ILL.
NO.2:REFER ILLUST.
*495,NO.2:REFER ILL.
12602CCOVER, ENGINE, NO.2
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
*132
*495
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
*132
(J),*495
(L),*495
*495
16620DTENSIONER ASSY, V-RIBBED BELT
(J)
(J),*495,*132
*132
(J),*495
(L),*495
9010506351
main90105-06351
90105A0068
main90105-A0068
90105A0124
main90105-A0124
90105A0300
main90105-A0300
90105A0407
main90105-A0407
9011906A12
main90119-06A12
90119A0160
main90119-A0160
90119A0416
main90119-A0416
9020106021
main90201-06021
9025008035
main90250-08035
90250A0030
main90250-A0030
9025311021
main90253-11021
9034122008
main90341-22008
9155180820
main91551-80820
91551F0825
main91551-F0825
91551F0830
main91551-F0830
28 parts on this diagram · 4 diagrams in section
