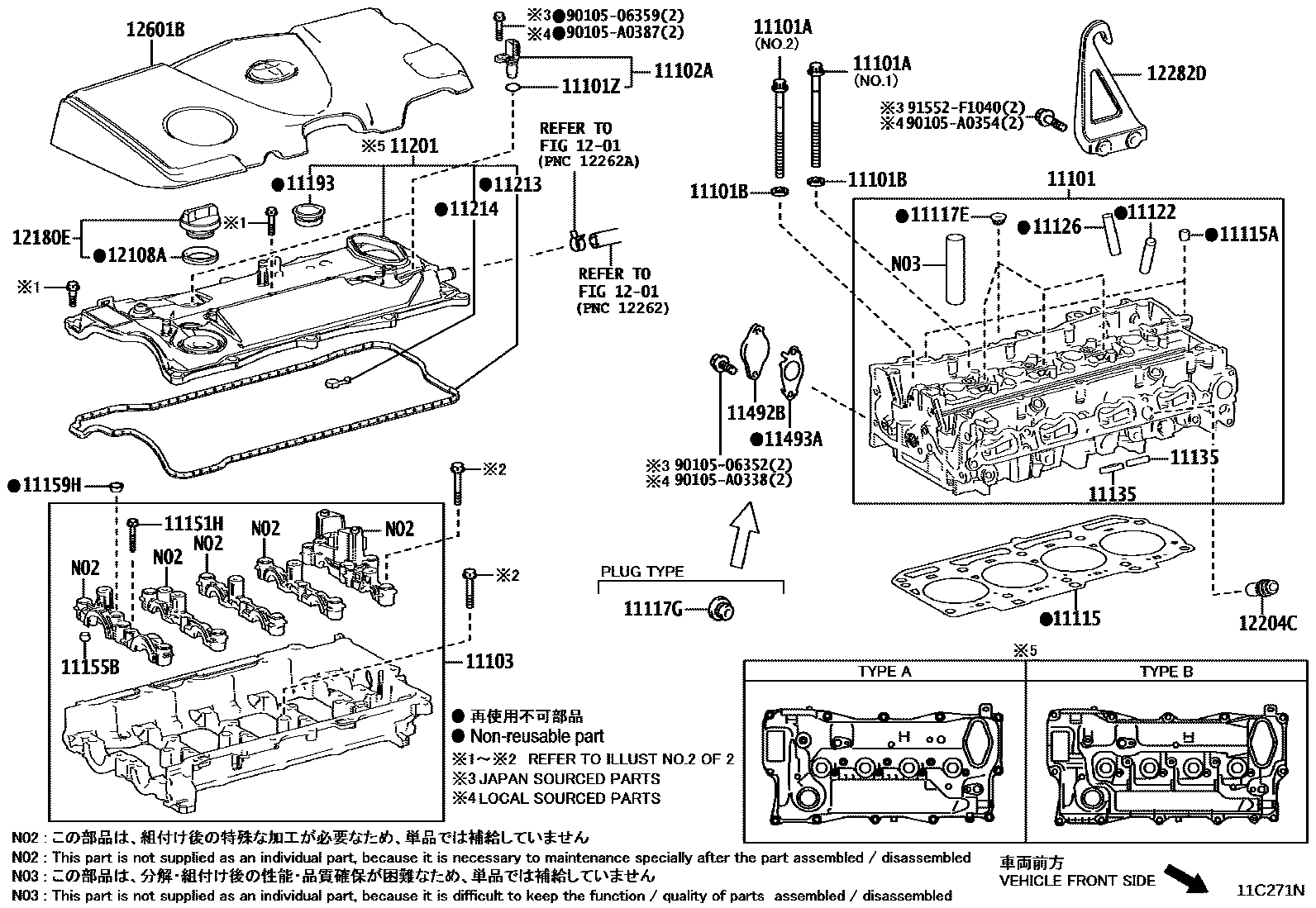

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
(J)
*132,NO.1:REFER ILL.
*132,NO.2:REFER ILL.
(L)
NO.1:REFER ILLUST.
*495,NO.1:REFER ILL.
*495,NO.2:REFER ILL.
NO.2:REFER ILLUST.
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
(J)
*132
*495
(L)
11101ZO RING, CAM POSITION SENSOR
*132
*495
11102ASENSOR, CAMSHAFT POSITION
*132
*495
11115GASKET, CYLINDER HEAD
(L)
*132
(J)
*495
11115APIN, RING
*132
*495
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*132
(J),*495
(J),*132
(J)
*495
(L),*495
(L)
(L),*132
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
(J)
*495
*132
(L)
11122BUSH, INTAKE VALVE GUIDE
STD
STD,*132
STD,*132
STD,*495
STD
O/S 0.05,*132
O/S 0.05,*495
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD,*495
STD
O/S 0.05,*132
O/S 0.05,*495
O/S 0.05
11135SEAT, EXHAUST VALVE
STD
STD,(L)
STD,*132
STD,(J),*495
STD,*495
STD
STD
STD,(J)
STD,(L),*495
STD
O/S 0.03,(L)
O/S 0.03
O/S 0.03,*132
O/S 0.03,*495
O/S 0.03
O/S 0.03,(J)
O/S 0.03
O/S 0.03,*495
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
*132
(J),*495
(J)
(L)
*495
(L),*495
11155BPIN, RING
*132
*495
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
(L)
*132
*495
(J)
11193GASKET, SPARK PLUG TUBE
(L)
(J)
*495
*132
*495
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
*132
*132T/P A:REF.ILLUST
*132T/P B:REF.ILLUST
(J)
sub11201-F0012
*495T/P B:REF.ILLUST
11213GASKET, CYLINDER HEAD COVER
(L)
*495
*132
(J)
11214GASKET, CYLINDER HEAD COVER, NO.2
*132
*495
(L)
(J)
11492BPLATE, WATER SEAL
*132
*495
11493AGASKET, WATER SEAL PLATE
*132
*495
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
*132
*495
12180ECAP ASSY, OIL FILLER
*132
*495
12204CVALVE SUB-ASSY, VENTILATION
*132
(J),*495
(J)
12282DHANGER, ENGINE, NO.2
*132
*495
9010506352
9010506359
90105A0338
main90105-A0338
90105A0354
main90105-A0354
90105A0387
main90105-A0387
91552F1040
36 parts on this diagram · 7 diagrams in section
