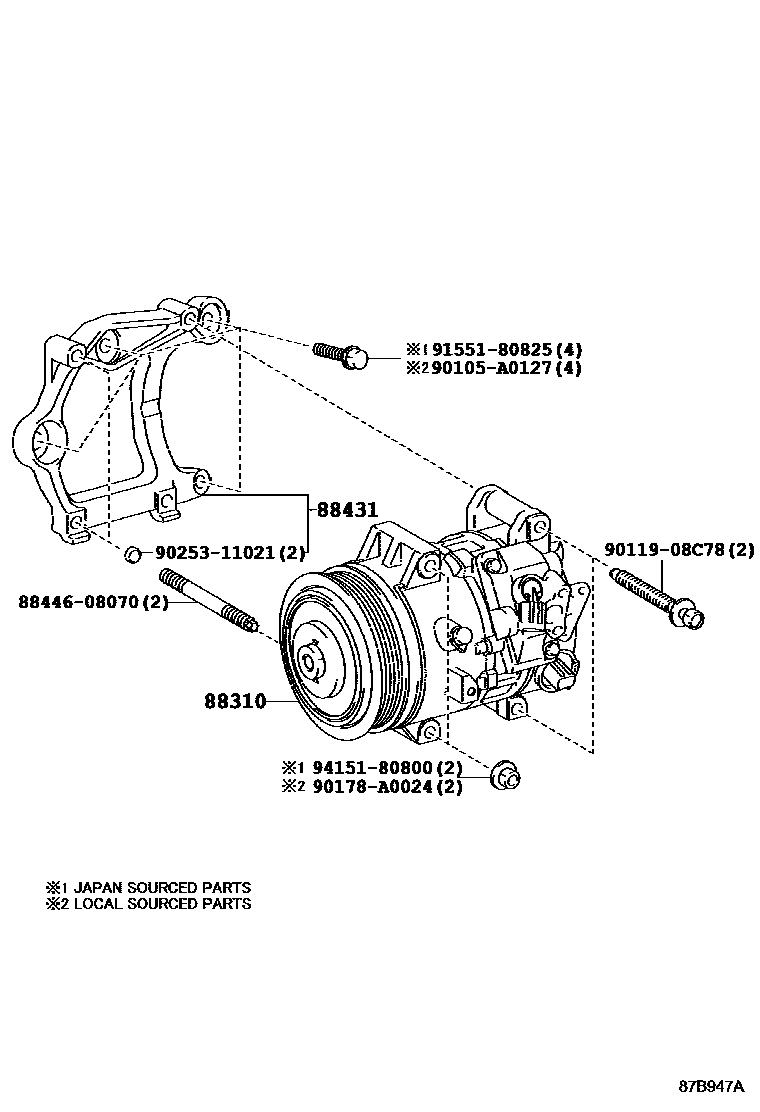

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-0R013iASV50201109-201210

sub88310-0R014

main88310-0R014iASV50201211-201409

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-0V040iASV50201210-201409

(L)

main12502-36010iASV50201109-201210

main12502-36010iASV50201210-201409

(J)

main88431-06020iAVV50201110-201409

8844608070BOLT, IDLE PULLEY

main88446-08070

90105A0127

main90105-A0127

9011908C78

main90119-08C78

90178A0024

main90178-A0024

9025311021

main90253-11021

9155180825

main91551-80825

9415180800

main94151-80800

9 parts on this diagram · 3 diagrams in section
