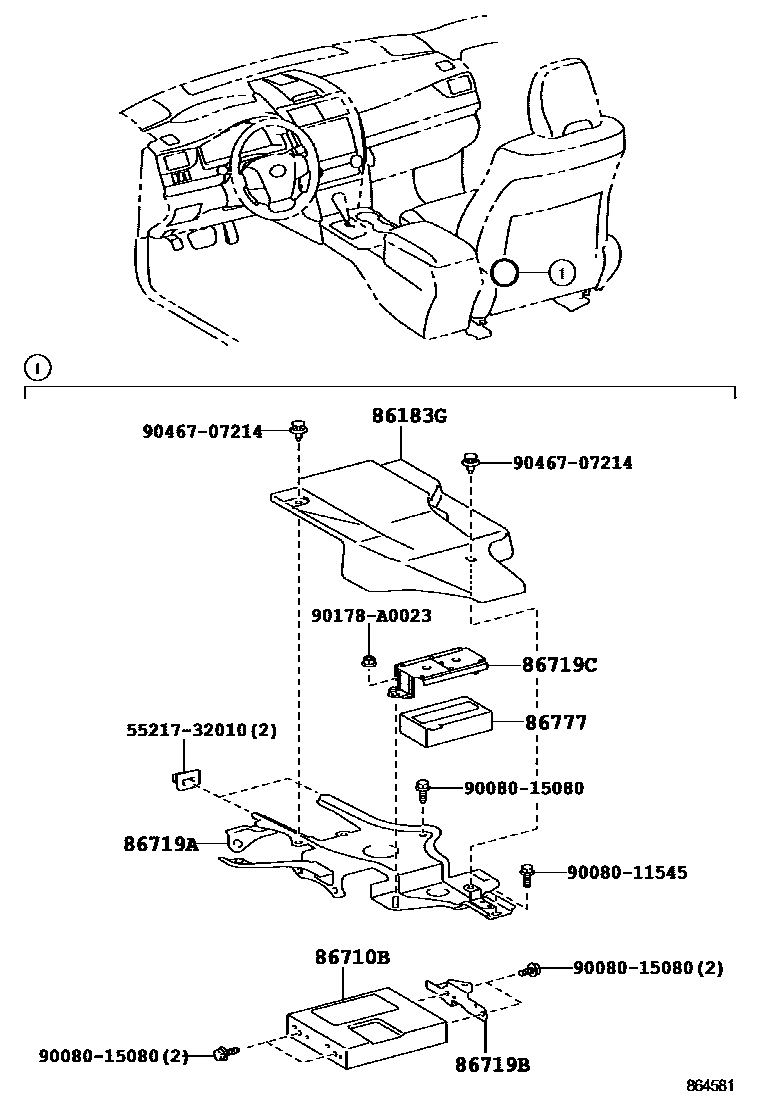

TELEPHONE & MAYDAY

86183GCOVER, AUDIO AMPLIFIER

main86183-06030i201109-201409

AUDIO-AVN JBL 8SPEAKER

main86183-06030i201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER

main86183-06030i201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER

main86183-06030i201109-201312

AUDIO-DISPLAY JBL SDARS 8SPEAKER

main86183-06030i201212-201312

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86183-06030i201212-201312

AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86183-06030i201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86183-06030i201212-201409

AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86183-06030i201409

MAYDAY SYSTEM-WITH

86710BCOMPUTER ASSY, MAYDAY

main86710-07011i201409

MAYDAY SYSTEM-WITH

main86710-08020i201109-201312

AUDIO-DISPLAY JBL SDARS 8SPEAKER

main86710-08020i201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER

main86710-08020i201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER

main86710-08020i201109-201409

AUDIO-AVN JBL 8SPEAKER

main86710-08020i201212-201312

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86710-08020i201212-201312

AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86710-08020i201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86710-08020i201212-201409

AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

86719ABRACKET, TELEPHONE NO.1

main86719-33150i201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER

main86719-33150i201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER

main86719-33150i201109-201312

AUDIO-DISPLAY JBL SDARS 8SPEAKER

main86719-33150i201109-201409

AUDIO-AVN JBL 8SPEAKER

main86719-33150i201212-201312

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86719-33150i201212-201312

AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86719-33150i201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86719-33150i201212-201409

AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86719-33150i201409

MAYDAY SYSTEM-WITH

86719BBRACKET, TELEPHONE NO.2

main86719-33160i201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER

main86719-33160i201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER

main86719-33160i201109-201312

AUDIO-DISPLAY JBL SDARS 8SPEAKER

main86719-33160i201109-201409

AUDIO-AVN JBL 8SPEAKER

main86719-33160i201212-201312

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86719-33160i201212-201312

AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86719-33160i201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86719-33160i201212-201409

AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86719-33160i201409

MAYDAY SYSTEM-WITH

86719CBRACKET, TELEPHONE NO.3

main86719-33170i201109-201409

AUDIO-AVN JBL 8SPEAKER

main86719-33170i201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER

main86719-33170i201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER

main86719-33170i201109-201312

AUDIO-DISPLAY JBL SDARS 8SPEAKER

main86719-33170i201212-201312

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86719-33170i201212-201312

AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86719-33170i201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86719-33170i201212-201409

AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86719-33170i201409

MAYDAY SYSTEM-WITH

86777BATTERY, MAYDAY

main86777-0W060i201109-201210

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER

sub86777-76040

main86777-0W060i201109-201210

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER

sub86777-76040

main86777-0W060i201109-201210

AUDIO-DISPLAY JBL SDARS 8SPEAKER

sub86777-76040

main86777-0W060i201109-201210

AUDIO-AVN JBL 8SPEAKER

sub86777-76040

main86777-76020i201211-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER

sub86777-76040

main86777-76020i201211-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER

sub86777-76040

main86777-76020i201211-201304

AUDIO-DISPLAY JBL SDARS 8SPEAKER

sub86777-76040

main86777-76020i201211-201304

AUDIO-AVN JBL 8SPEAKER

sub86777-76040

main86777-76020i201212-201304

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

sub86777-76040

main86777-76020i201212-201304

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

sub86777-76040

main86777-76020i201212-201304

AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

sub86777-76040

main86777-76020i201212-201304

AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

sub86777-76040

main86777-76040i201305-201312

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86777-76040i201305-201312

AUDIO-DISPLAY JBL SDARS 8SPEAKER

main86777-76040i201305-201312

AUDIO-DISPLAY JBL SDARS 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86777-76040i201305-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86777-76040i201305-201409

AUDIO-AVN JBL 8SPEAKER

main86777-76040i201305-201409

AUDIO-AVN JBL 8SPEAKER&LANE CHANGE ASSIST-BLIND SPOT DETECTION

main86777-76040i201409

MAYDAY SYSTEM-WITH

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010

9008011545

main90080-11545

9008015080

main90080-15080

90178A0023

main90178-A0023

9046707214

main90467-07214

11 parts on this diagram · 1 diagram in section
