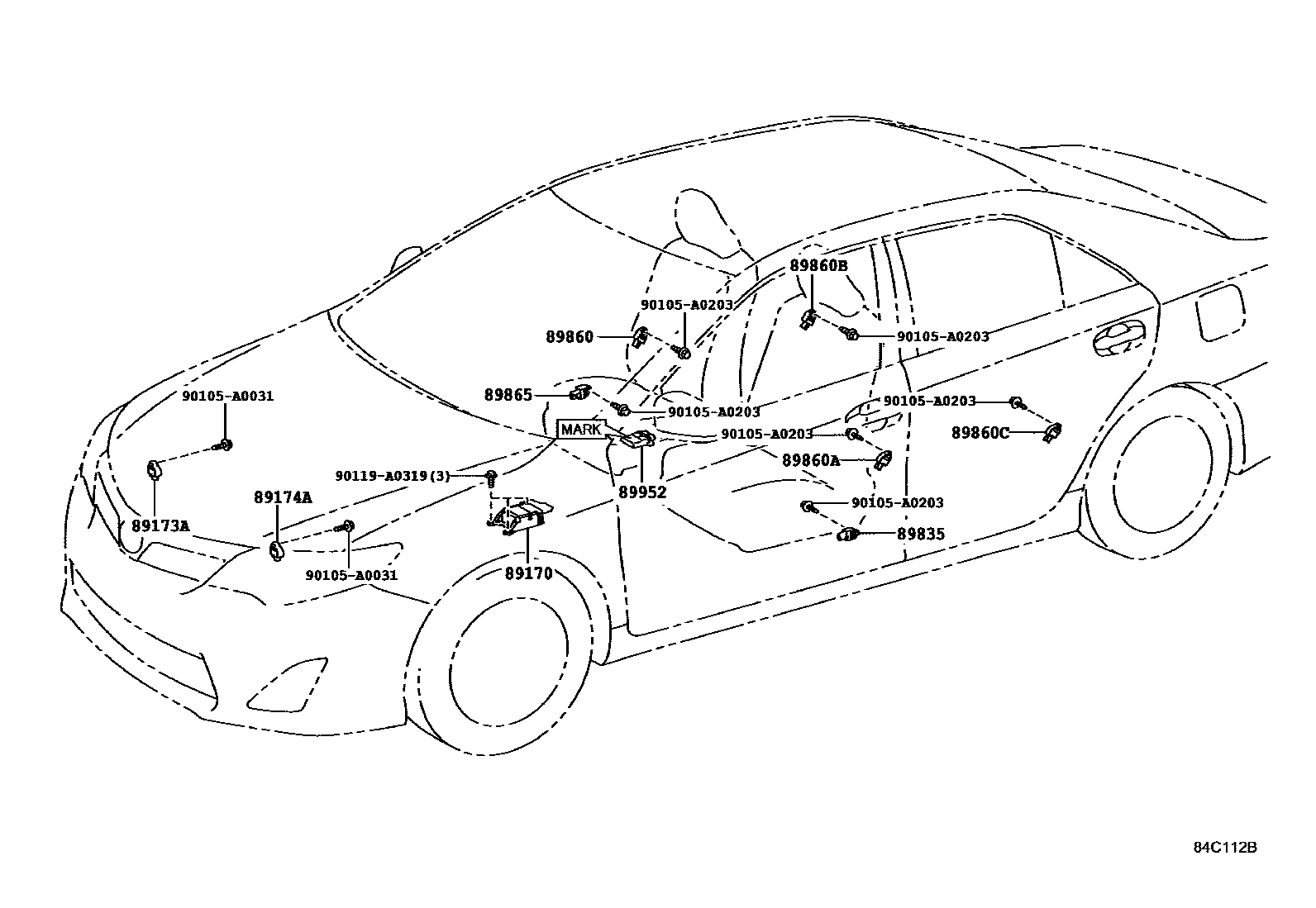

AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-06650iAVV50201110-201207

main89170-06660iASV50,GSV50201109-201207

89173ASENSOR, AIRBAG, FRONT RH

main89173-09820iASV50,AVV50,GSV50201207-201409

main89173-09A00iASV50,AVV50,GSV50201109-201207

89174ASENSOR, AIRBAG, FRONT LH

main89173-09820iASV50,AVV50,GSV50201207-201409

main89173-09A00iASV50,AVV50,GSV50201109-201207

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-06070iASV50,AVV50,GSV50201207-201409

main89831-0E020iASV50,AVV50,GSV50201109-201207

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-06060iASV50,AVV50,GSV50201207-201409

main89831-0R010iASV50,AVV50,GSV50201109-201207

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-06060iASV50,AVV50,GSV50201207-201409

main89831-0R010iASV50,AVV50,GSV50201109-201207

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-06060iASV50,AVV50,GSV50201207-201409

main89831-0R010iASV50,AVV50,GSV50201109-201207

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-06060iASV50,AVV50,GSV50201207-201409

main89831-0R010iASV50,AVV50,GSV50201109-201207

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-06070iASV50,AVV50,GSV50201207-201409

main89831-0E020iASV50,AVV50,GSV50201109-201207

89952COMPUTER, OCCUPANT DETECTION

main89952-06010iASV50,AVV50,GSV50201109-201202

MARK G

sub89952-06011

main89952-06011iASV50,AVV50,GSV50201202-201409

MARK AN

main89952-0E011iASV50,AVV50,GSV50201409-201706

90105A0031

main90105-A0031

90105A0203

main90105-A0203

90119A0319

main90119-A0319

13 parts on this diagram · 2 diagrams in section
