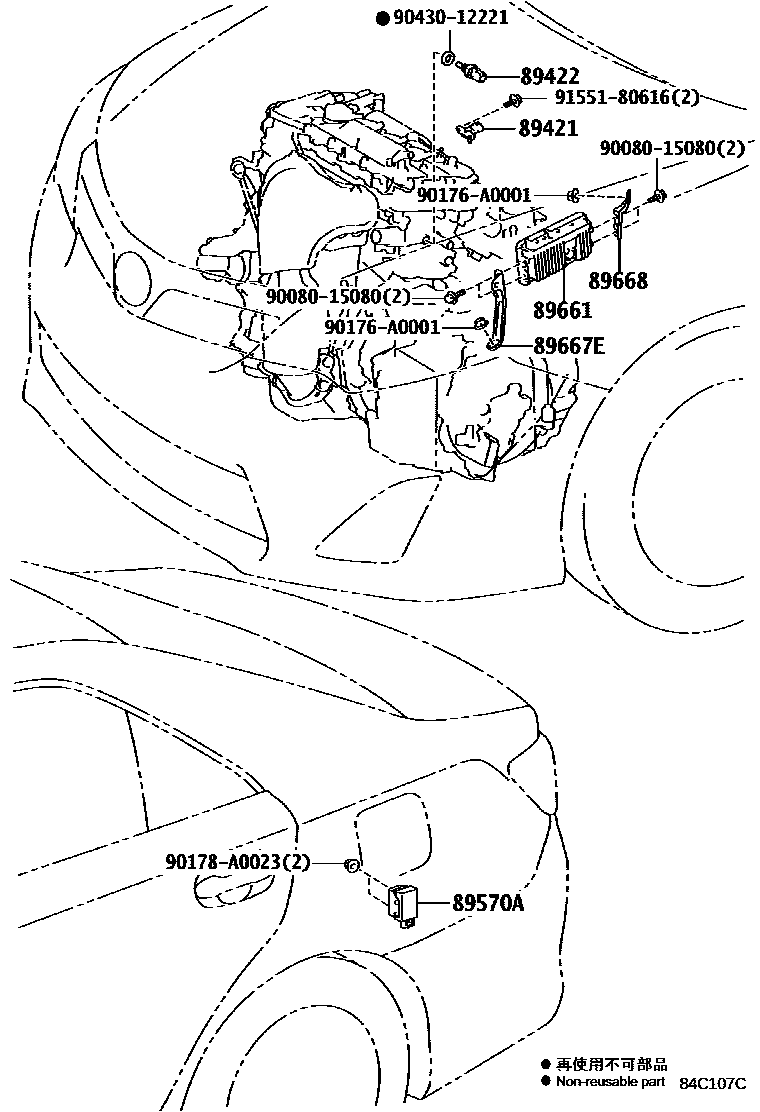

ELECTRONIC FUEL INJECTION SYSTEM
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
89661COMPUTER, ENGINE CONTROL
sub89661-06K21
sub89661-06K22
sub89661-06K41
sub89661-06K42
sub89661-06K61
sub89661-06K62
sub89661-06K63
sub89661-06K71
sub89661-06K72
sub89661-06K73
sub89661-06N11
sub89661-06N12
sub89661-06T21
sub89661-06T22
sub89661-06T91
sub89661-06U11
sub89661-0X182
sub89661-0X231
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
CALIFORNIA SPEC
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
CALIFORNIA SPEC
9008015080
main90080-15080
90176A0001
main90176-A0001
90178A0023
main90178-A0023
9043012221
main90430-12221
9155180616
main91551-80616
11 parts on this diagram · 2 diagrams in section
