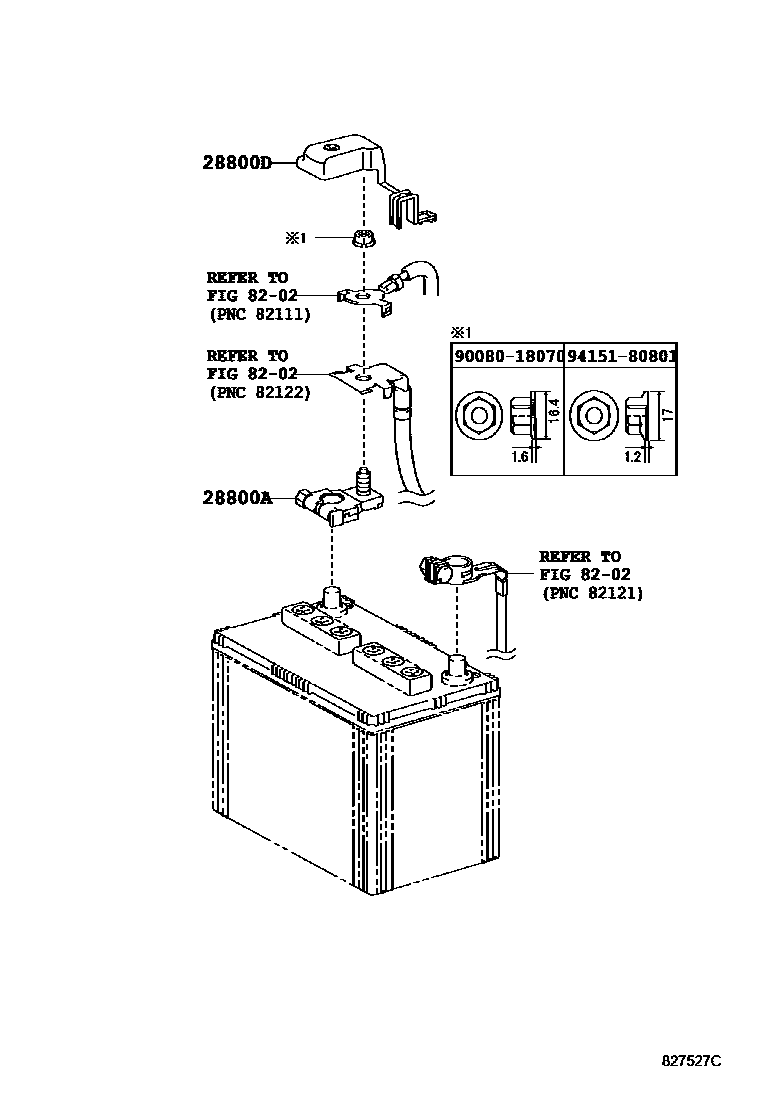

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-28100i2ARFXE..AVV50201110-201409

S55D23R

sub28800-28101

main28800-36050i2ARFXE..AVV50..SE,XLE201409

S65D26R,MOON ROOF-WITH(TILT & SLIDE)

sub28800-36051

main28800-36050i2ARFXE..AVV50..SE,XLE201110-201409

S65D26R,MOON ROOF-WITH

sub28800-36051

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2ARFE,2GRFE..ASV50,GSV50201109-201409

main90982-05061i2ARFXE..AVV50201206-201409

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i2ARFE,2GRFE..ASV50,GSV50201109-201409

main82821-47110i2ARFXE..AVV50201110-201409

8202

9008018070

main90080-18070

9415180801

main94151-80801

6 parts on this diagram · 5 diagrams in section
