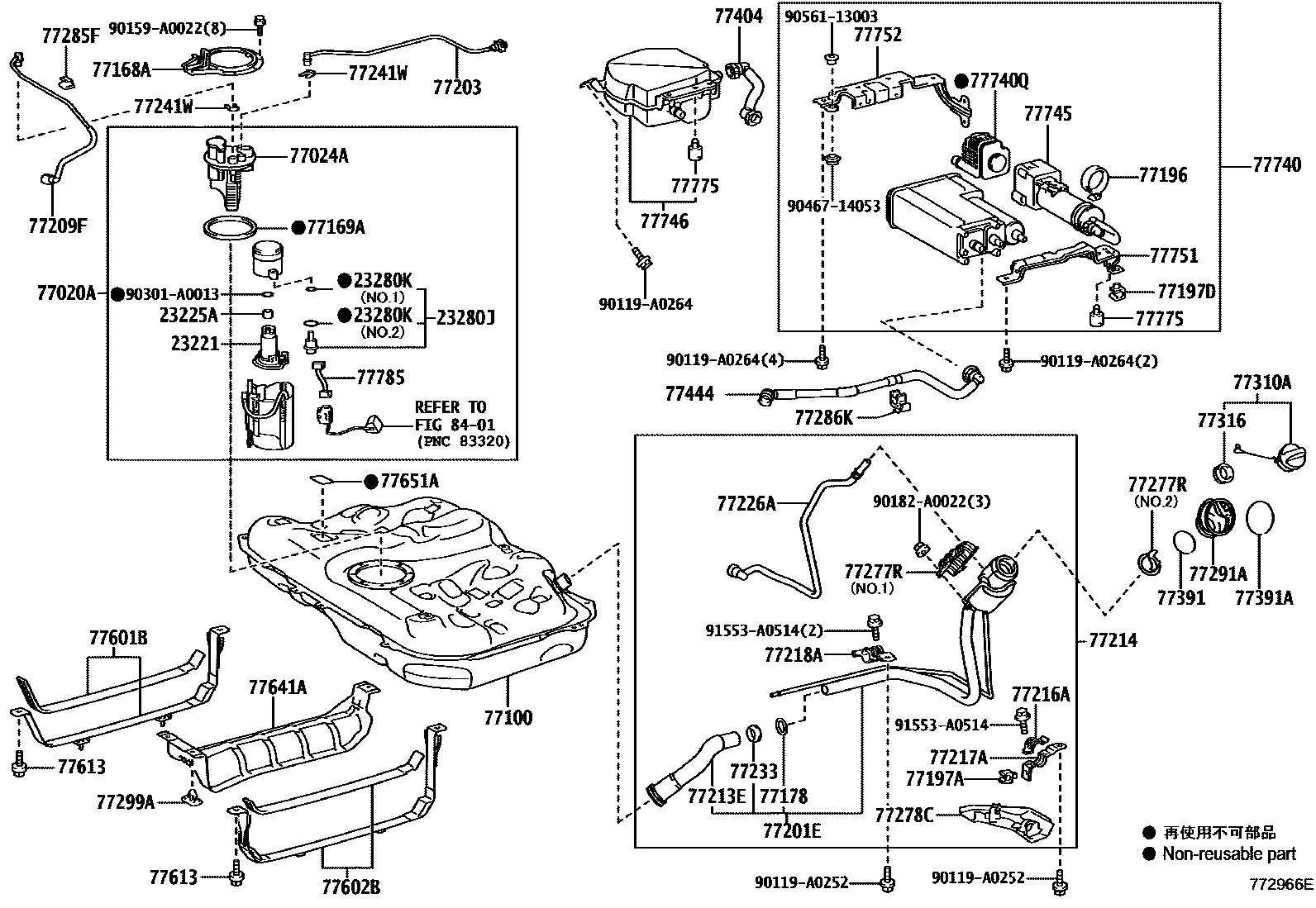

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL LID OPENER

23221PUMP, FUEL

main23220-0P180i2GRFE..GSV50201409-201706

main23220-0V040i2AR#..ASV50,AVV50201109-201203

sub23220-0V150

sub77785-06080

main23220-0V150i2AR#..ASV50,AVV50201203-201706

main23220-31370i2GRFE..GSV50201109-201409

23225ASPACER, FUEL PUMP

main23225-0V010i2AR#..ASV50,AVV50201109-201706

main23225-21010i2GRFE..GSV50201109-201409

main23225-23010i2GRFE..GSV50201409-201706

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2AR#..ASV50,AVV50201109-201706

main23280-38020i2GRFE..GSV50201109-201706

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2AR#,2GRFE..ASV50,AVV50,GSV50201109-201706

NO.1

main90301-15024i2AR#,2GRFE..ASV50,AVV50,GSV50201109-201706

NO.2

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-06282iASV50201109-201410

sub77020-06285

main77020-06285iASV50201410-201502

sub77020-06286

main77020-06286iASV50201503-201706

main77020-06292iGSV50201109-201409

sub77020-06297

main77020-06295iGSV50201409-201410

sub77020-06296

main77020-06296iGSV50201410-201502

sub77020-06297

main77020-06297iGSV50201503-201706

main77020-06302iAVV50201110-201409

sub77020-06305

main77020-06302iAVV50201409-201410

CALIFORNIA SPEC

sub77020-06305

main77020-06305iAVV50201410-201502

CALIFORNIA SPEC

sub77020-06306

main77020-06306iASV50201503-201706

CALIFORNIA SPEC

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-06151iASV50201109-201410

sub77024-06152

main77024-06152iASV50201410-201502

sub77024-06153

main77024-06153iASV50201503-201706

main77024-06211iAVV50201110-201409

sub77024-06212

main77024-06211iAVV50201409-201410

CALIFORNIA SPEC

sub77024-06212

main77024-06212iASV50201410-201502

CALIFORNIA SPEC

sub77024-06213

main77024-06213iAVV50201503-201706

CALIFORNIA SPEC

main77024-06220iGSV50201409-201410

sub77024-06221

main77024-06221iGSV50201410-201706

main77024-06271iGSV50201109-201406

sub77024-06273

77100TANK ASSY, FUEL

main77001-06190iASV50,AVV50,GSV50201109-201706

77168APLATE, FUEL TANK VENT TUBE SET

main77168-33070iASV50,AVV50,GSV50201109-201706

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iASV50,GSV50201109-201706

main77169-53010iAVV50201110-201409

main77169-53010iAVV50201409-201706

CALIFORNIA SPEC

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-06010iASV50,AVV50,GSV50201109-201409

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-33030iAVV50201110-201409

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-0R010iASV50,AVV50,GSV50201109-201409

77197DCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42020iAVV50201110-201409

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-06160iASV50,GSV50201109-201212

main77201-06161iASV50,GSV50201212-201409

main77201-06170iAVV50201110-201212

main77201-06171iAVV50201212-201409

EXHAUST EMISSION CONTROL-USA PZEV

main77201-06171iAVV50201409

CALIFORNIA SPEC

77203TUBE SUB-ASSY, FUEL TANK BREATHER ELBOW

main77203-06070iASV50,AVV50,GSV50201109-201409

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-06050iASV50,AVV50,GSV50201109-201208

main77209-06051iASV50,AVV50,GSV50201209-201409

sub77209-06052

main77209-06052iASV50,AVV50,GSV50201409-201706

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-06060iASV50,AVV50,GSV50201109-201409

77214PIPE, FUEL TANK FILLER

main77210-06160iASV50,GSV50201109-201212

main77210-06161iASV50,GSV50201212-201301

sub77210-06162

main77210-06162iASV50,GSV50201301-201409

main77210-06180iAVV50201110-201212

main77210-06181iAVV50201212-201301

sub77210-06182

main77210-06182iAVV50201301-201409

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-06100iASV50,AVV50,GSV50201109-201409

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-06090iASV50,AVV50,GSV50201109-201409

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-06090iASV50,AVV50,GSV50201109-201301

sub77218-33031

main77218-06091iASV50,AVV50,GSV50201401-201409

(L)

main77218-33031iASV50,AVV50,GSV50201401-201409

(J)

main77218-33031iASV50,AVV50,GSV50201301-201401

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-06120iASV50,GSV50201109-201409

main77226-06130iAVV50201110-201409

77233JOINT, FUEL HOSE

main77233-06020iASV50,AVV50,GSV50201109-201212

main77233-06030iASV50,AVV50,GSV50201212-201409

77241WCLIP, TUBE JOINT

main77241-06020iASV50,AVV50,GSV50201109-201706

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-06050iASV50,AVV50,GSV50201109-201409

NO.1

main77277-33090iASV50,AVV50,GSV50201109-201212

NO.2

main77277-33100iASV50,AVV50,GSV50201212-201409

NO.2

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-06050iASV50,AVV50,GSV50201109-201409

77285FCLAMP, FUEL TUBE, NO.1

main77285-33110iASV50,AVV50,GSV50201109-201706

77286KCLAMP, FUEL TUBE, NO.2

main77286-06050iASV50,AVV50,GSV50201109-201409

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-06110iASV50,AVV50,GSV50201109-201409

main77291-06160iASV50,AVV50,GSV50201409

77299ACLAMP, FUEL TUBE, NO.5

main77299-06070iASV50,AVV50,GSV50201402-201409

main77299-52010iASV50,AVV50,GSV50201109-201401

77310ACAP ASSY, FUEL TANK

main77300-06040iASV50,GSV50201109-201212

main77300-07010iASV50,GSV50201212-201308

main77300-07020iAVV50201212-201308

EXHAUST EMISSION CONTROL-USA PZEV

main77300-07030iASV50,GSV50201308-201409

main77300-07040iAVV50201409

CALIFORNIA SPEC

main77300-07040iAVV50201308-201409

EXHAUST EMISSION CONTROL-USA PZEV

main77300-75010iAVV50201110-201212

77316GASKET, FUEL TANK CAP

main77316-06070iASV50,GSV50201109-201409

main77316-06090iASV50..LE,N201212-201409

EXHAUST EMISSION CONTROL-USA PZEV

main77316-06090iASV50201409

CALIFORNIA SPEC

main77316-75020iAVV50201110-201212

77391RING, FUEL INLET BOX

main77391-02041iASV50,AVV50,GSV50201109-201409

77391ARING, FUEL INLET BOX

main77391-06070iASV50,AVV50,GSV50201109-201409

main77391-06130iASV50,AVV50,GSV50201409

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-06180iAVV50201110-201409

77444HOSE, FUEL TANK VENT

main77404-06100iASV50,AVV50,GSV50201109-201409

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-06080iASV50,AVV50,GSV50201109-201411

main77601-06150iASV50,AVV50,GSV50201412

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-06080iASV50..SE;AVV50,GSV50201109-201411

main77602-06090iASV50..LE,N,XLE201109-201411

sub77602-06160

main77602-06150iAVV50;ASV50,GSV50..LE,SE,XSE201412

main77602-06160iASV50,GSV50..XLE201412

77613BOLT, FUEL TANK BAND SET

main90119-10971iASV50,AVV50,GSV50201109-201409

(J)

main90119-A0267iASV50,AVV50,GSV50201109-201409

(L)

77641APROTECTOR, FUEL TANK, NO.1

main77641-06010iASV50,AVV50,GSV50201109-201409

77651ACUSHION, FUEL TANK, NO.1

main77651-20090iASV50,AVV50,GSV50201109-201409

77740CANISTER ASSY, CHARCOAL

main77740-06180iASV50,GSV50201109-201409

main77740-33200iAVV50201110-201409

77740QLEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER

main90910-14005iAVV50201110-201503

sub90910-14008

main90910-14008iAVV50201504

main90910-AF004iASV50,GSV50201109-201503

sub90910-AF006

main90910-AF006iASV50,GSV50201504

77745FILTER, CHARCOAL CANISTER, NO.1

main77745-33030iAVV50201110-201409

77746FILTER, CHARCOAL CANISTER, NO.2

main77746-06020iAVV50201110-201409

77751BRACKET, CHARCOAL CANISTER BASE

main77751-06110iASV50,GSV50201109-201409

main77751-33130iAVV50201110-201409

77752BRACKET, CHARCOAL CANISTER SUPPORT

main77752-06050iASV50,GSV50201109-201706

main77752-33060iAVV50201110-201706

77775GUIDE, CHARCOAL CANISTER OUTLET

main77775-47010iAVV50201109-201409

77785HARNESS, FUEL PUMP

main77785-06080iASV50,AVV50201203-201706

main77785-06100iASV50,AVV50201109-201203

main77785-06110iGSV50201109-201409

main77785-06120iGSV50201409-201706

sub77785-06260

8401

90119A0252

main90119-A0252

90119A0264

main90119-A0264

90159A0022

main90159-A0022

90182A0022

main90182-A0022

90301A0013

main90301-A0013

9046714053

main90467-14053

9056113003

main90561-13003

91553A0514

main91553-A0514

58 parts on this diagram · 6 diagrams in section
