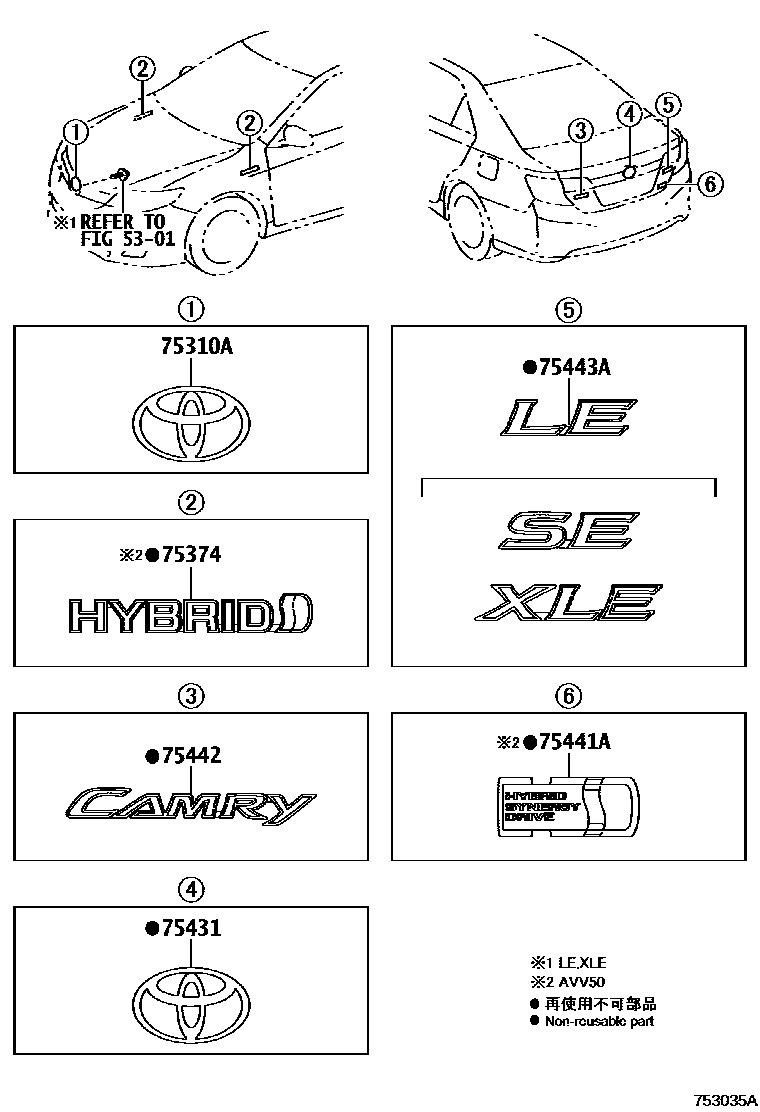

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

5301

75310AEMBLEM ASSY, RADIATOR GRILLE

main53141-07010iASV50,GSV50..XLE,XSE201409-201501

PRE-COLLISION SYSTEM-WITH

main53141-0W010iASV50..XSE201502-201606

PRE-COLLISION SYSTEM-WITH

main53141-0W010iASV50..XSE201606

WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN PREMIUM SURROUND & 8SPEAKER

main53141-47011iAVV50..XLE201502

PRE-COLLISION SYSTEM-WITH

main53141-47012iAVV50..XLE201409-201501

PRE-COLLISION SYSTEM-WITH

sub53141-47011

main75310-06010iASV50,GSV50..LE,XLE201109-201409

main75310-06060iAVV50..SE201402-201409

main75310-47010iAVV50201110-201409

main90975-A2002iASV50,GSV50..N,SE201109-201409

75374EMBLEM, SIDE PANEL

main75374-12050iAVV50201412

RH

main75374-12060iAVV50201412

LH

main75374-33090iAVV50201110-201411

RH

main75374-33100iAVV50201110-201411

LH

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75403-06090iAVV50201409

main75403-48010iAVV50201110-201409

main75431-02080iASV50,GSV50201109-201409

main90975-A2003iASV50,GSV50201409

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-33170iAVV50201110-201409

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-06190iASV50,AVV50,GSV50201109-201409

CAMRY

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-06180iASV50,AVV50..LE201109-201409

LE

main75443-06200iASV50..XSE201508-201606

SE,SPECIAL EDITION

main75443-06200iASV50,AVV50..SE201109-201409

SE

main75443-06660iASV50,AVV50,GSV50..XLE201109-201409

XLE

main75443-06B60iASV50,GSV50..XSE201409

XSE

7 parts on this diagram · 2 diagrams in section
