SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM1#
GRAY,TRIM1#,2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM1#,2#
GRAY,TRIM1#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM1#,2#
73230BELT ASSY, FRONT SEAT INNER, RH
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM1#,2#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
IVORY,TRIM0#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
GRAY,TRIM1#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM10
GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM15,2#
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM1#,2#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
7215106010RAIL, SEAT TRACK, LOWER RH
main72151-06010
7247606020SCREW, HORIZONTAL JACK, INNER
main72476-06020
9008011699
main90080-11699
9008017195
main90080-17195
90105A0088
main90105-A0088
90105A0186
main90105-A0186
9010911060
main90109-11060

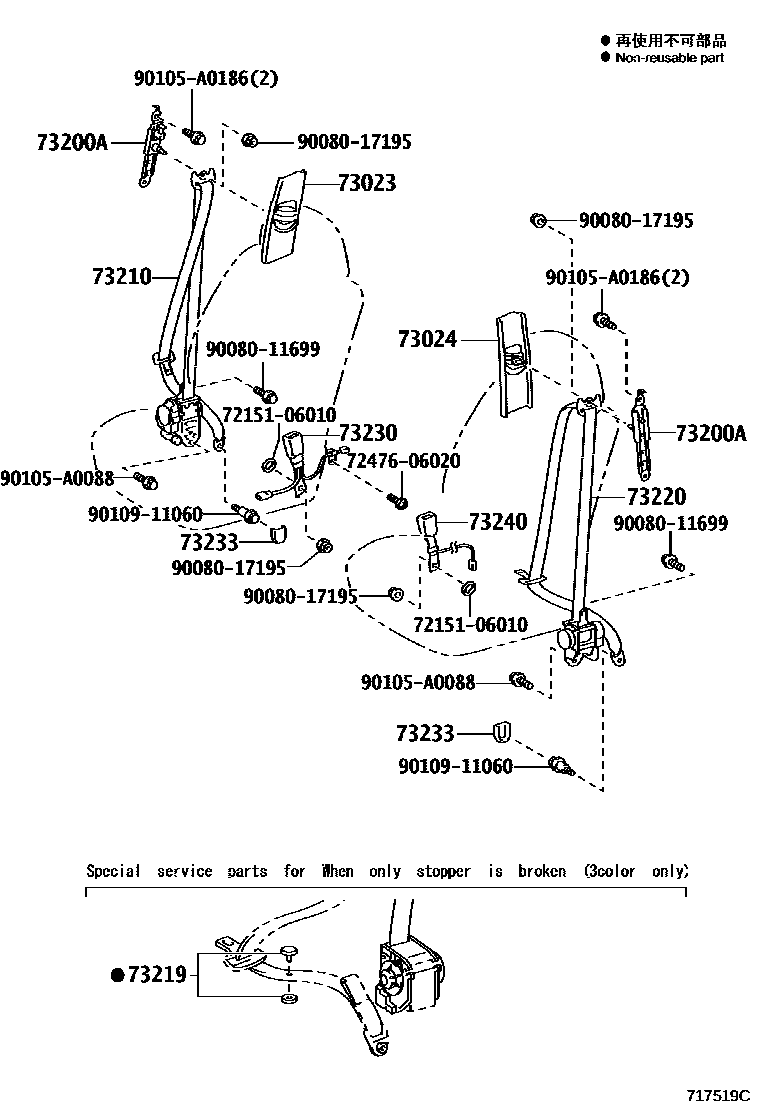

16 parts on this diagram · 2 diagrams in section
