EPC Data

REAR SEAT & SEAT TRACK

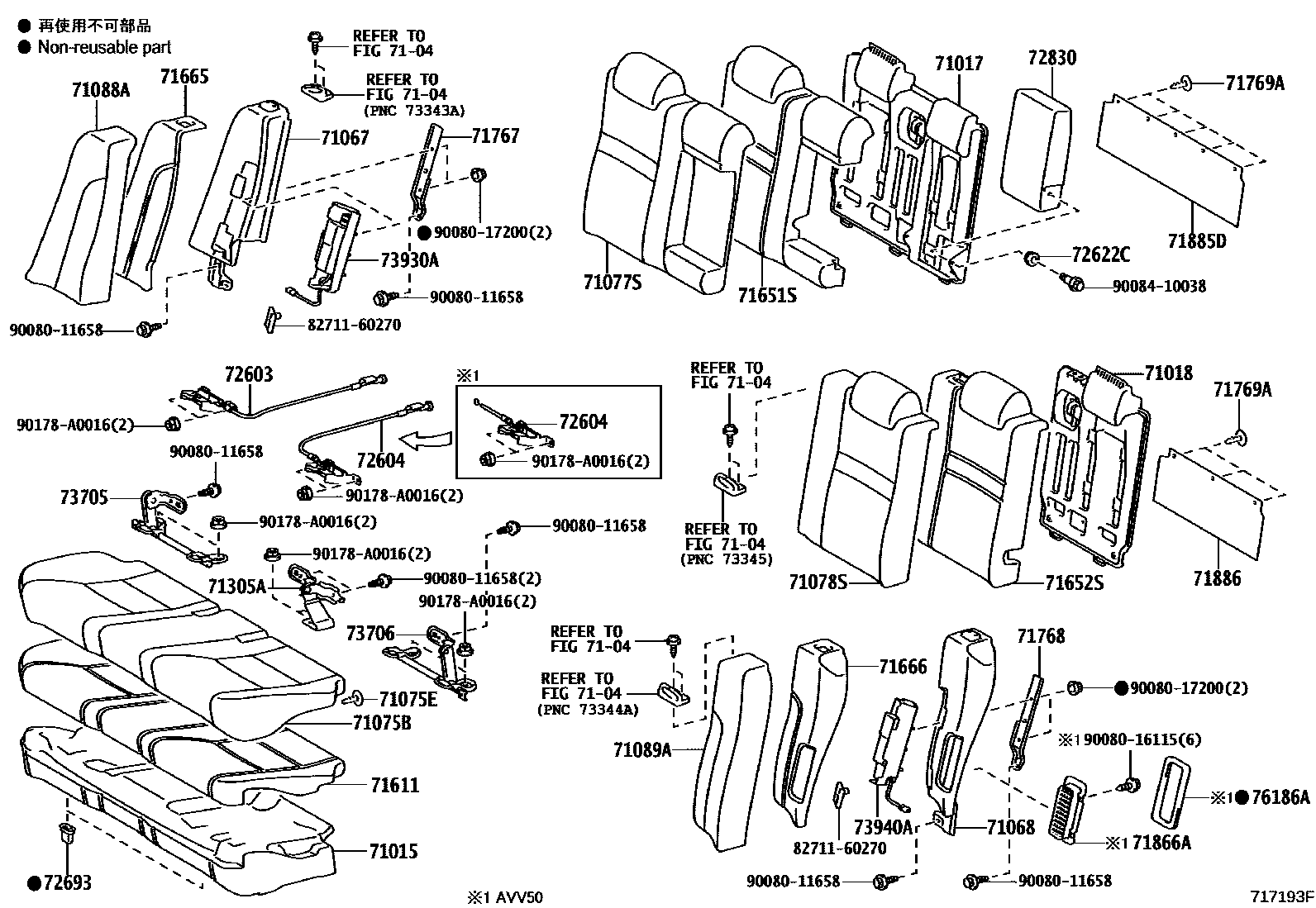

Parts diagram
71015FRAME SUB-ASSY, REAR SEAT CUSHION
main71015-06060i201109-201409
main71015-06140i201409
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-06170-C1i201109-201706
BLACK,TRIM1#,2#
main71017-06170-C1i201109-201409
BLACK,TRIM0#,1#
main71017-06170-C1i201409-201706
BLACK,TRIM0#,1#,2#
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-06120-C1i201109-201409
BLACK,TRIM0#,1#
main71018-06120-C1i201109-201706
BLACK,TRIM1#,2#
main71018-06120-C1i201409-201706
BLACK,TRIM0#,1#,2#
7104
71067FRAME SUB-ASSY, REAR SIDE SEATBACK, RH
main71067-06030i201109-201409
71068FRAME SUB-ASSY, REAR SIDE SEATBACK, LH
main71068-06030i201109-201409
main71068-06040i201110-201409
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-06A80-B1i201109-201212
GRAY,TRIM1#
main71075-06A80-B4i201109-201212
IVORY,TRIM0#
main71075-06A81-A0i201212-201409
LT IVORY,TRIM0#
main71075-06A81-B1i201212-201409
GRAY,TRIM1#
main71075-06A90-B2i201110-201311
BLACK,TRIM1#
sub71075-06A91
main71075-06A90-C2i201110-201311
BLACK,TRIM2#
sub71075-06A91
main71075-06A91-B2i201312-201409
GRAY/BLACK,TRIM1#
main71075-06A91-C2i201312-201409
BLACK,TRIM2#
main71075-06B00-A0i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71075-06B00-A0i201110-201212
IVORY,TRIM0#
main71075-06B00-A0i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71075-06B00-B3i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71075-06B00-B3i201110-201212
GRAY,TRIM1#
main71075-06B00-B3i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71075-06B01-A0i201212-201409
IVORY,TRIM0#
main71075-06B01-A0i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71075-06B01-A0i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71075-06B01-B3i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71075-06B01-B3i201212-201409
GRAY,TRIM1#
main71075-06B01-B3i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71075-06B21-A0i201409-201706
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#
main71075-06B21-A0i201409-201706
FLAXEN,TRIM0#
main71075-06B21-B0i201409-201706
GRAY,TRIM1#
main71075-06B21-B0i201409-201706
*DRP:WITH(POWER SEAT),GRAY,TRIM1#
main71075-06B21-C0i201409-201706
*DRP:WITH(POWER SEAT),BLACK,TRIM2#
main71075-06B21-C0i201409-201706
BLACK,TRIM2#
main71075-06B71-A2i201409-201706
CREAM,TRIM0#
main71075-06B71-B2i201409-201706
NEUTRAL GRAY,TRIM1#
main71075-06B71-C3i201409-201706
BLACK,TRIM2#
main71075-06C51-B2i201409-201508
*DRP:WITH(POWER SEAT),GRAY,TRIM1#
main71075-06C51-B2i201409-201508
GRAY,TRIM1#
main71075-06C51-C2i201409-201508
BLACK,TRIM2#
main71075-06C51-C2i201409-201508
*DRP:WITH(POWER SEAT),BLACK,TRIM2#
main71075-06C71-B2i201409-201706
GRAY,TRIM1#
main71075-06C71-B2i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71075-06C71-C2i201409-201706
BLACK,TRIM2#
main71075-06C71-C2i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71075-06D70-B0i201110-201409
IVORY,TRIM0#
main71075-06D70-E0i201110-201409
LT GRAY,TRIM1#
main71075-06E80-A0i201109-201110
IVORY,TRIM0#
main71075-06E80-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71075-06E80-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71075-06E80-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71075-06E80-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71075-06E80-B0i201109-201110
GRAY,TRIM1#
main71075-06E90-B0i201109-201110
BLACK,TRIM1#
main71075-06E90-C0i201109-201110
BLACK,TRIM2#
main71075-06M70-B0i201508-201706
GRAY,TRIM1#
main71075-06M70-C0i201508-201706
BLACK,TRIM2#
71075ECLIP(FOR REAR SEAT)
main71769-06010-C0i201409-201706
BLACK,TRIM0#,1#,2#
main71769-06010-C0i201111-201706
BLACK,TRIM1#,2#
main71769-06010-C0i201111-201409
BLACK,TRIM0#,1#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-06C40-A6i201110-201212
IVORY,TRIM0#
main71077-06C40-B7i201110-201212
GRAY,TRIM1#
main71077-06C41-A7i201212-201409
IVORY,TRIM0#
main71077-06C41-B7i201212-201409
GRAY,TRIM1#
main71077-06C50-20i201110-201311
BLACK,TRIM2#
sub71077-06C51
main71077-06C50-21i201110-201311
GRAY/BLACK,TRIM1#
sub71077-06C51
main71077-06C51-20i201312-201409
BLACK,TRIM2#
main71077-06C51-21i201312-201409
GRAY/BLACK,TRIM1#
main71077-06C60-A5i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71077-06C60-A5i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71077-06C60-A5i201110-201212
IVORY,TRIM0#
main71077-06C60-B4i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71077-06C60-B4i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71077-06C60-B4i201110-201212
GRAY,TRIM1#
main71077-06C61-A6i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71077-06C61-A6i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71077-06C61-A6i201212-201409
IVORY,TRIM0#
main71077-06C61-B5i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71077-06C61-B5i201212-201409
GRAY,TRIM1#
main71077-06C61-B5i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71077-06E30-A1i201409-201706
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#
main71077-06E30-A1i201409-201706
FLAXEN,TRIM0#
main71077-06E30-B1i201409-201706
GRAY,TRIM1#
main71077-06E30-B1i201409-201706
*DRP:WITH(POWER SEAT),GRAY,TRIM1#
main71077-06E30-C1i201409-201706
*DRP:WITH(POWER SEAT),BLACK,TRIM2#
main71077-06E30-C1i201409-201706
BLACK,TRIM2#
main71077-06E60-A3i201409-201604
FLAXEN,TRIM0#
main71077-06E60-B3i201409-201604
GRAY,TRIM1#
main71077-06E60-C3i201409-201604
BLACK,TRIM2#
main71077-06E61-A3i201604-201706
FLAXEN,TRIM0#
main71077-06E61-B3i201604-201706
GRAY,TRIM1#
main71077-06E61-C3i201604-201706
BLACK,TRIM2#
main71077-06E70-B4i201409-201508
*DRP:WITH(POWER SEAT),GRAY,TRIM1#
main71077-06E70-B4i201409-201508
GRAY,TRIM1#
main71077-06E70-C3i201409-201508
*DRP:WITH(POWER SEAT),BLACK,TRIM2#
main71077-06E70-C3i201409-201508
BLACK,TRIM2#
main71077-06E80-B3i201409-201604
GRAY,TRIM1#
main71077-06E80-B3i201409-201604
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71077-06E80-C2i201409-201604
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71077-06E80-C2i201409-201604
BLACK,TRIM2#
main71077-06E81-B3i201604-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71077-06E81-B3i201604-201706
GRAY,TRIM1#
main71077-06E81-C2i201604-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71077-06E81-C2i201604-201706
BLACK,TRIM2#
main71077-06J10-A3i201110-201409
IVORY,TRIM0#
main71077-06J10-B3i201110-201409
LT.GRAY,TRIM1#
main71077-06K00-A0i201109-201110
IVORY,TRIM0#
main71077-06K00-B0i201109-201110
GRAY,TRIM1#
main71077-06K10-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71077-06K10-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71077-06K10-A0i201109-201110
IVORY,TRIM0#
main71077-06K10-B0i201109-201110
GRAY,TRIM1#
main71077-06K10-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71077-06K10-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71077-06K40-C0i201109-201110
BLACK,TRIM2#
main71077-06K40-C1i201109-201110
BLACK,TRIM1#
main71077-06S10-B0i201508-201604
GRAY,TRIM1#
main71077-06S10-C0i201508-201604
BLACK,TRIM2#
main71077-06S11-B0i201604-201706
GRAY,TRIM1#
main71077-06S11-C0i201604-201706
BLACK,TRIM2#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-06600-A6i201110-201212
IVORY,TRIM0#
main71078-06600-B7i201110-201212
GRAY,TRIM1#
main71078-06601-A7i201212-201409
IVORY,TRIM0#
main71078-06601-B7i201212-201409
GRAY,TRIM1#
main71078-06610-20i201110-201311
BLACK,TRIM2#
sub71078-06611
main71078-06610-21i201110-201311
BLACK,TRIM1#
sub71078-06611
main71078-06611-20i201312-201409
BLACK,TRIM2#
main71078-06611-21i201312-201409
GRAY/BLACK,TRIM1#
main71078-06620-A5i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71078-06620-A5i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71078-06620-A5i201110-201212
IVORY,TRIM0#
main71078-06620-B4i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71078-06620-B4i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71078-06620-B4i201110-201212
GRAY,TRIM1#
main71078-06621-A6i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71078-06621-A6i201212-201409
IVORY,TRIM0#
main71078-06621-A6i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71078-06621-B5i201212-201409
GRAY,TRIM1#
main71078-06621-B5i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71078-06621-B5i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71078-06640-A1i201409-201706
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#
main71078-06640-A1i201409-201706
FLAXEN,TRIM0#
main71078-06640-B1i201409-201706
GRAY,TRIM1#
main71078-06640-B1i201409-201706
*DRP:WITH(POWER SEAT),GRAY,TRIM1#
main71078-06640-C1i201409-201706
BLACK,TRIM2#
main71078-06640-C1i201409-201706
*DRP:WITH(POWER SEAT),BLACK,TRIM2#
main71078-06680-A3i201409-201706
FLAXEN,TRIM0#
main71078-06680-B3i201409-201706
GRAY,TRIM1#
main71078-06680-C3i201409-201706
BLACK,TRIM2#
main71078-06750-B4i201409-201508
*DRP:WITH(POWER SEAT),GRAY,TRIM1#
main71078-06750-B4i201409-201508
GRAY,TRIM1#
main71078-06750-C3i201409-201508
*DRP:WITH(POWER SEAT),BLACK,TRIM2#
main71078-06750-C3i201409-201508
BLACK,TRIM2#
main71078-06770-B3i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71078-06770-B3i201409-201706
GRAY,TRIM1#
main71078-06770-C2i201409-201706
BLACK,TRIM2#
main71078-06770-C2i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71078-06A10-A3i201110-201409
IVORY,TRIM0#
main71078-06A10-B3i201110-201409
LT GRAY,TRIM1#
main71078-06A70-A0i201109-201110
IVORY,TRIM0#
main71078-06A70-B0i201109-201110
GRAY,TRIM1#
main71078-06A80-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71078-06A80-A0i201109-201110
IVORY,TRIM0#
main71078-06A80-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71078-06A80-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71078-06A80-B0i201109-201110
GRAY,TRIM1#
main71078-06A80-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71078-06A90-C0i201109-201110
BLACK,TRIM2#
main71078-06A90-C1i201109-201110
BLACK,TRIM1#
main71078-06F40-B0i201508-201706
GRAY,TRIM1#
main71078-06F40-C0i201508-201706
BLACK,TRIM2#
71088ACOVER SUB-ASSY, REAR SIDE SEATBACK, RH
main71088-06130-A2i201109-201409
IVORY,TRIM0#
main71088-06130-B2i201109-201409
GRAY,TRIM1#
main71088-06140-C3i201110-201311
BLACK,TRIM1#,2#
sub71088-06141
main71088-06141-C3i201312-201409
BLACK,TRIM1#,2#
main71088-06150-A2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71088-06150-A2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71088-06150-A2i201110-201212
IVORY,TRIM0#
main71088-06150-B4i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71088-06150-B4i201110-201212
GRAY,TRIM1#
main71088-06150-B4i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71088-06151-A2i201212-201409
IVORY,TRIM0#
main71088-06151-A2i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71088-06151-A2i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71088-06151-B4i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71088-06151-B4i201212-201409
GRAY,TRIM1#
main71088-06151-B4i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71088-06170-A1i201409-201706
FLAXEN,TRIM0#
main71088-06170-A1i201409-201706
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#
main71088-06170-B1i201409-201706
*DRP:WITH(POWER SEAT),GRAY,TRIM1#
main71088-06170-B1i201409-201706
GRAY,TRIM1#
main71088-06170-C1i201409-201706
*DRP:WITH(POWER SEAT),BLACK,TRIM2#
main71088-06170-C1i201409-201706
BLACK,TRIM2#
main71088-06200-A0i201110-201409
IVORY,TRIM0#
main71088-06200-B0i201110-201409
LT GRAY,TRIM1#
main71088-06230-A0i201109-201110
IVORY,TRIM0#
main71088-06230-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71088-06230-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71088-06230-B1i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71088-06230-B1i201109-201110
GRAY,TRIM1#
main71088-06230-B1i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71088-06240-C0i201109-201110
BLACK,TRIM1#,2#
main71088-06260-A4i201409-201706
FLAXEN,TRIM0#
main71088-06260-B5i201409-201706
GRAY,TRIM1#
main71088-06260-B6i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71088-06260-B6i201409-201706
GRAY,TRIM1#
main71088-06260-C4i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71088-06260-C4i201409-201706
BLACK,TRIM2#
main71088-06260-C5i201409-201706
BLACK,TRIM2#
main71088-06270-B1i201409-201706
GRAY,TRIM1#
main71088-06270-C1i201409-201706
BLACK,TRIM2#
71089ACOVER SUB-ASSY, REAR SIDE SEATBACK, LH
main71089-06130-A1i201109-201409
IVORY,TRIM0#
main71089-06130-B1i201109-201409
GRAY,TRIM1#
main71089-06140-A1i201409-201706
FLAXEN,TRIM0#
main71089-06140-A1i201409-201706
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#
main71089-06140-B1i201409-201706
*DRP:WITH(POWER SEAT),GRAY,TRIM1#
main71089-06140-B1i201409-201706
GRAY,TRIM1#
main71089-06140-C1i201409-201706
BLACK,TRIM2#
main71089-06140-C1i201409-201706
*DRP:WITH(POWER SEAT),BLACK,TRIM2#
main71089-06150-C3i201110-201311
BLACK,TRIM1#,2#
sub71089-06151
main71089-06151-C3i201312-201409
BLACK,TRIM1#,2#
main71089-06160-A2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71089-06160-A2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71089-06160-A2i201110-201212
IVORY,TRIM0#
main71089-06160-B2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71089-06160-B2i201110-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71089-06160-B2i201110-201212
GRAY,TRIM1#
main71089-06161-A2i201212-201409
IVORY,TRIM0#
main71089-06161-A2i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71089-06161-A2i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71089-06161-B2i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71089-06161-B2i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71089-06161-B2i201212-201409
GRAY,TRIM1#
main71089-06190-A1i201110-201409
IVORY,TRIM0#
main71089-06190-B1i201110-201409
LT GRAY,TRIM1#
main71089-06240-A0i201109-201110
IVORY,TRIM0#
main71089-06240-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main71089-06240-A0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main71089-06240-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71089-06240-B0i201109-201110
GRAY,TRIM1#
main71089-06240-B0i201109-201110
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71089-06250-C0i201109-201110
BLACK,TRIM1#,2#
main71089-06270-A4i201409-201706
FLAXEN,TRIM0#
main71089-06270-B5i201409-201706
GRAY,TRIM1#
main71089-06270-B6i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main71089-06270-B6i201409-201706
GRAY,TRIM1#
main71089-06270-C4i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main71089-06270-C4i201409-201706
BLACK,TRIM2#
main71089-06270-C5i201409-201706
BLACK,TRIM2#
main71089-06280-B1i201409-201706
GRAY,TRIM1#
main71089-06280-C1i201409-201706
BLACK,TRIM2#
main71089-06291-C0i201402-201409
BLACK,TRIM1#,2#
main71089-06300-A1i201409-201706
FLAXEN,TRIM0#
main71089-06300-A1i201409-201706
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#
main71089-06300-B1i201409-201706
GRAY,TRIM1#
main71089-06300-B1i201409-201706
*DRP:WITH(POWER SEAT),GRAY,TRIM1#
main71089-06300-C1i201409-201706
BLACK,TRIM2#
main71089-06300-C1i201409-201706
*DRP:WITH(POWER SEAT),BLACK,TRIM2#
main71089-06310-A2i201409-201706
FLAXEN,TRIM0#
main71089-06310-B2i201409-201706
GRAY,TRIM1#
main71089-06310-C2i201409-201706
BLACK,TRIM2#
main71089-06320-B1i201409-201706
GRAY,TRIM1#
main71089-06320-C1i201409-201706
BLACK,TRIM2#
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-06060i201109-201409
71611PAD, REAR SEAT CUSHION
main71503-06220i201109-201409
sub71503-06221
main71503-06221i201409
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-06340i201109-201409
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-06150i201109-201409
71665PAD, REAR SEATBACK SIDE, RH
main71665-06051i201109-201409
71666PAD, REAR SEATBACK SIDE, LH
main71666-06061i201109-201409
main71666-06071i201110-201409
71767BRACKET, REAR SIDE SEATBACK SET, REAR RH
main71767-06010i201109-201409
71768BRACKET, REAR SIDE SEATBACK SET, REAR LH
main71768-06010i201109-201409
71769ACLIP, REAR SEATBACK BOARD
main71769-06010-C0i201409-201706
BLACK,TRIM0#,1#,2#
main71769-06010-C0i201109-201409
BLACK,TRIM0#,1#
main71769-06010-C0i201109-201706
BLACK,TRIM1#,2#
71866ABEZEL, REAR SEAT COVER, NO.2
main71866-06010-A0i201110-201409
IVORY,TRIM0#
main71866-06010-A1i201409-201706
FLAXEN,TRIM0#
main71866-06010-B0i201110-201409
LT.GRAY,TRIM1#
main71866-06010-B1i201409-201706
GRAY,TRIM1#
main71866-06010-C0i201409-201706
BLACK,TRIM2#
main71866-06010-C0i201402-201409
BLACK,TRIM1#,2#
71885DCARPET, REAR SEATBACK, RH
main71885-06050-C1i201109-201409
BLACK,TRIM0#,1#
main71885-06050-C1i201109-201706
BLACK,TRIM1#,2#
main71885-06050-C1i201409-201706
BLACK,TRIM0#,1#,2#
main71885-06080-C0i201409-201706
BLACK,TRIM0#,1#,2#
main71885-06080-C0i201402-201706
BLACK,TRIM1#,2#
main71885-06080-C0i201110-201409
BLACK,TRIM0#,1#
71886CARPET, REAR SEATBACK, LH
main71886-06040-C1i201409-201706
BLACK,TRIM0#,1#,2#
main71886-06040-C1i201109-201409
BLACK,TRIM0#,1#
main71886-06040-C1i201109-201706
BLACK,TRIM1#,2#
72603LOCK SUB-ASSY, REAR SEATBACK, RH
main72630-06040i201109-201409
72604LOCK SUB-ASSY, REAR SEATBACK, LH
main72640-06040i201109-201409
main72640-06070i201110-201409
72622CBUSH, REAR SEATBACK PROTECTOR SHAFT
main72622-0T020i201109-201409
72693HOOK, REAR SEAT CUSHION LOCK
main72693-06030i201209-201409
main72693-12080i201109-201208
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-06670-A1i201409-201706
*DRP:WITH(POWER SEAT),FLAXEN,TRIM0#
main72830-06670-A1i201409-201706
FLAXEN,TRIM0#
main72830-06670-B1i201409-201706
GRAY,TRIM1#
main72830-06670-B1i201409-201706
*DRP:WITH(POWER SEAT),GRAY,TRIM1#
main72830-06670-C1i201409-201706
*DRP:WITH(POWER SEAT),BLACK,TRIM2#
main72830-06670-C1i201409-201706
BLACK,TRIM2#
main72830-06730-A2i201109-201409
IVORY,TRIM0#
main72830-06730-B2i201109-201409
GRAY,TRIM1#
main72830-06740-C2i201109-201311
BLACK,TRIM1#,2#
sub72830-06741
main72830-06741-B0i201409-201706
GRAY,TRIM1#
main72830-06741-C2i201312-201409
BLACK,TRIM1#,2#
main72830-06741-C2i201409-201706
BLACK,TRIM2#
main72830-06750-A1i201109-201212
IVORY,TRIM0#
main72830-06750-A1i201109-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main72830-06750-A1i201109-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main72830-06750-B3i201109-201212
GRAY,TRIM1#
main72830-06750-B3i201109-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main72830-06750-B3i201109-201212
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main72830-06751-A1i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
main72830-06751-A1i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#
main72830-06751-A1i201212-201409
IVORY,TRIM0#
main72830-06751-A3i201409-201706
FLAXEN,TRIM0#
main72830-06751-B3i201212-201409
GRAY,TRIM1#
main72830-06751-B3i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main72830-06751-B3i201212-201409
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main72830-06751-B7i201409-201706
GRAY,TRIM1#
main72830-06751-B9i201409-201706
GRAY,TRIM1#
main72830-06751-B9i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#
main72830-06751-C4i201409-201706
BLACK,TRIM2#
main72830-06751-C4i201409-201706
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#
main72830-06C60-A1i201110-201409
IVORY,TRIM0#
main72830-06C60-B1i201110-201409
LT GRAY,TRIM1#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-06050i201109-201409
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-06050i201109-201409
73930AAIRBAG ASSY, REAR SEAT, RH
main73930-06040i201109-201409
main73930-06050i201409
73940AAIRBAG ASSY, REAR SEAT, LH
main73940-06040i201109-201409
main73940-06050i201409
76186ASEAL, AIR INTAKE
main76186-06010i201110-201409
8271160270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-60270
9008011658
main90080-11658
9008016115
main90080-16115
9008017200
main90080-17200
9008410038
main90084-10038
90178A0016
main90178-A0016

40 parts on this diagram · 1 diagram in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
