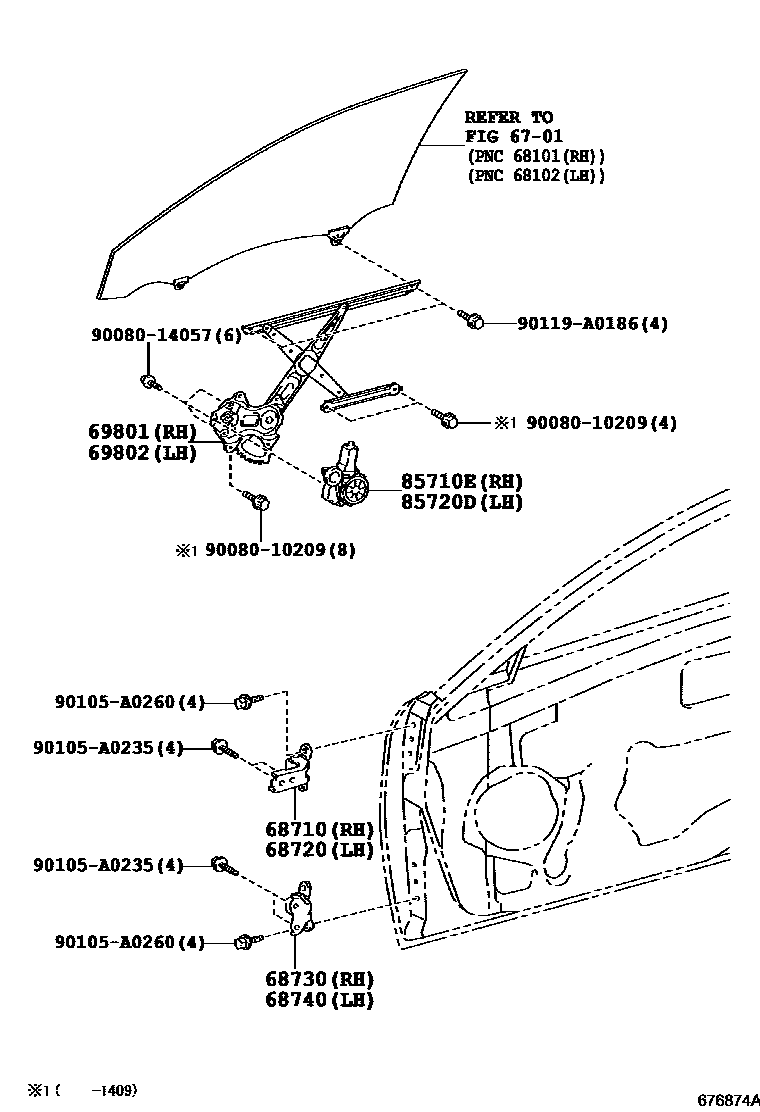

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iASV50,AVV50,GSV50201109-201409

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iASV50,AVV50,GSV50201109-201409

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02080iASV50,AVV50,GSV50201109-201409

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02080iASV50,AVV50,GSV50201109-201409

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-06080iASV50,AVV50,GSV50201109-201409

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06080iASV50,AVV50,GSV50201109-201409

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-06260iASV50,AVV50,GSV50201409-201511

sub85710-06261

main85710-06261iASV50,AVV50,GSV50201512

main85710-AE010iASV50,AVV50,GSV50201109-201409

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-06080iASV50,AVV50,GSV50201109-201308

sub85720-0R050

main85720-06280iASV50,AVV50,GSV50201409-201511

sub85720-06281

main85720-06281iASV50,AVV50,GSV50201512

main85720-0R050iASV50,AVV50,GSV50201309-201409

9008010209

main90080-10209

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90119A0186

main90119-A0186

14 parts on this diagram · 1 diagram in section
