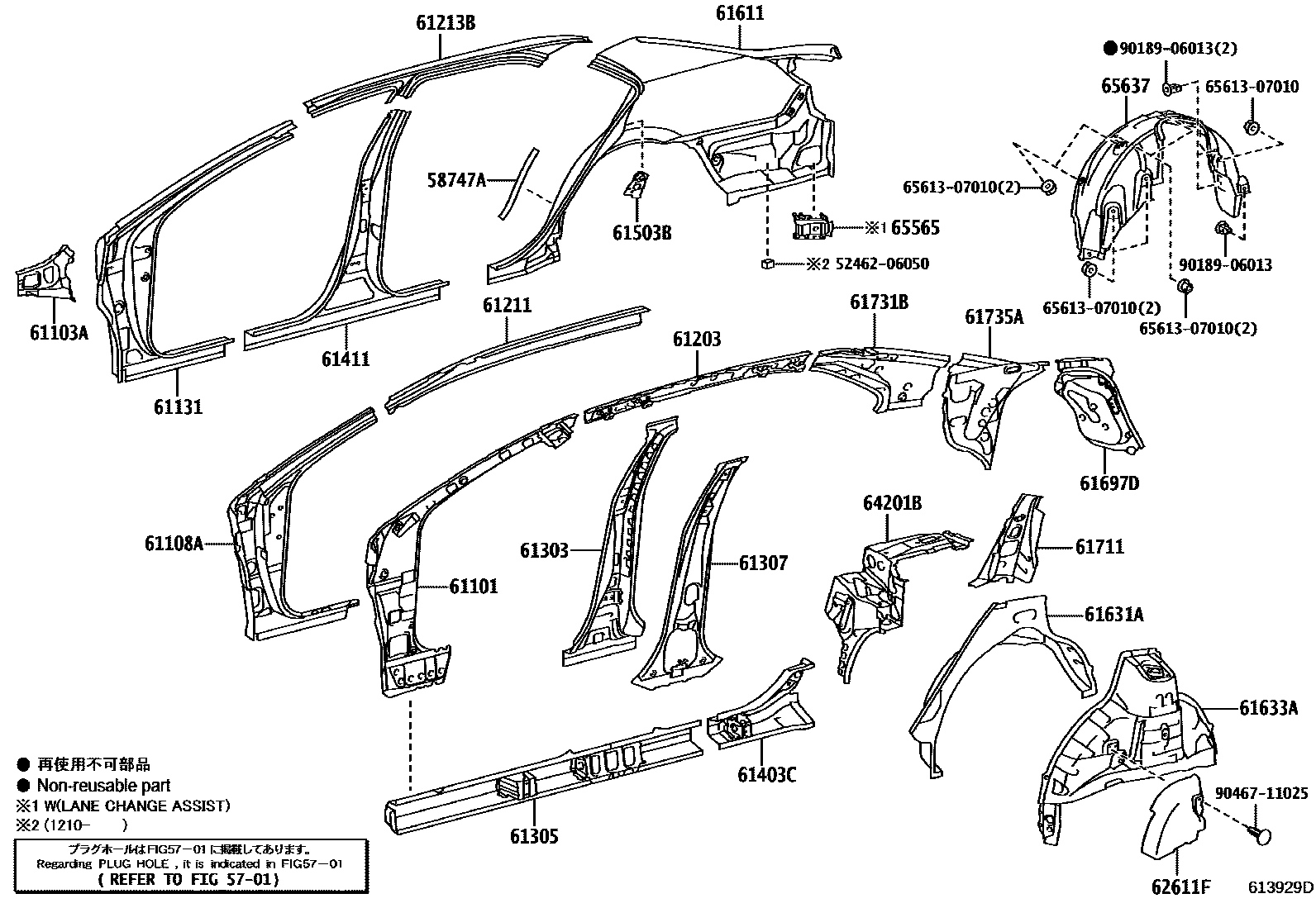

SIDE MEMBER
5701
58747APROTECTOR, QUARTER PANEL, REAR RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61211RAIL, ROOF SIDE, OUTER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61611PANEL, QUARTER, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61697DHOUSING, QUARTER PANEL END, RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
62611FINSULATOR, QUARTER WHEEL HOUSE, RH
64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH
65637LINER, REAR WHEEL HOUSE, RH
5246206050PAD, REAR BUMPER, RH
main52462-06050
6561307010STRIP, SIDE GATE HINGE, INSIDE
main65613-07010
9018906013
main90189-06013
9046711025
main90467-11025
30 parts on this diagram · 4 diagrams in section
