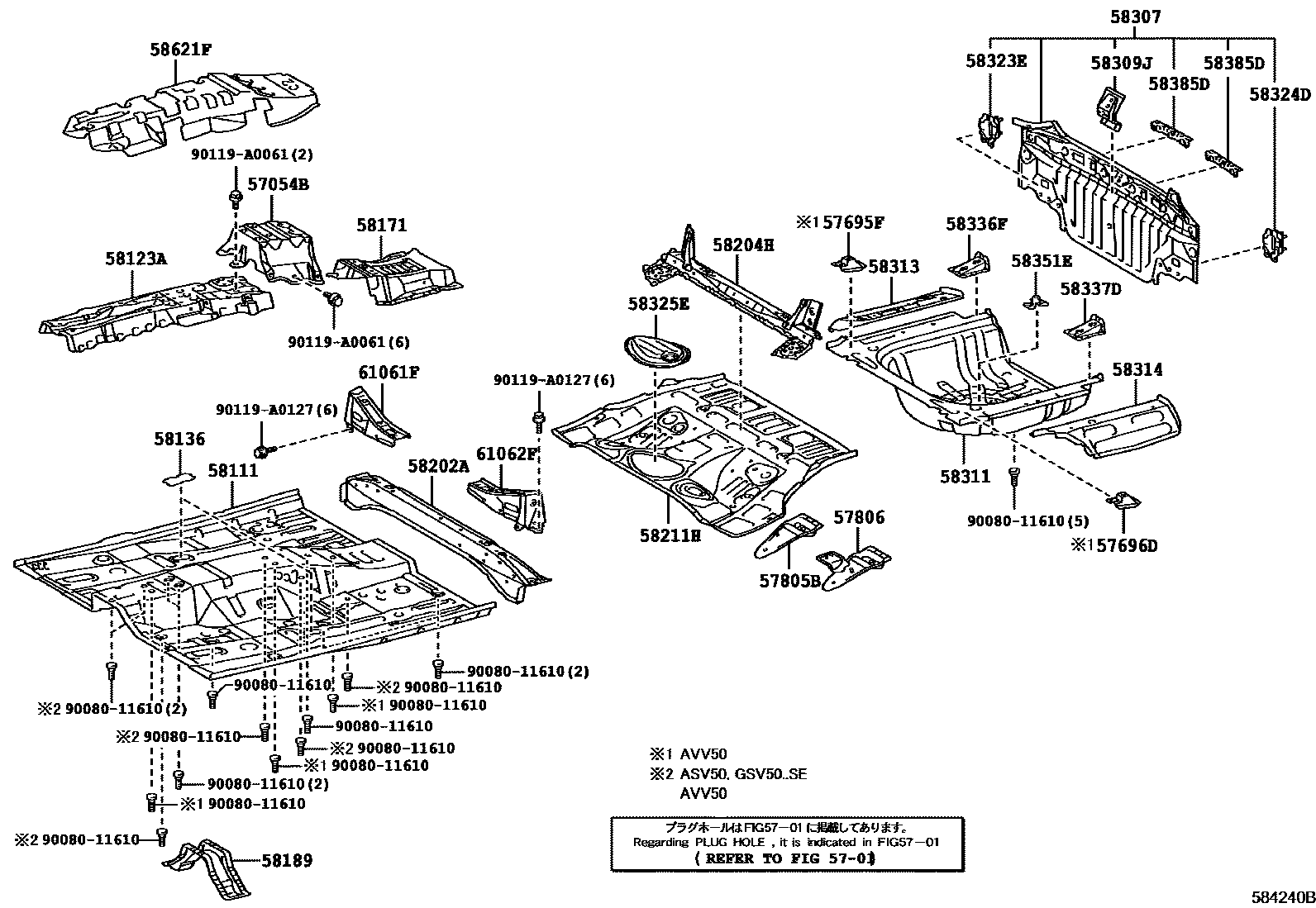

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL 0002 1FLOOR PANEL 0003 1UNDER COVER 0004 1UNDER COVER 0005 1UNDER COVER 0006 1UNDER COVER(KOREA SPEC) 0007 1UNDER COVER 0008 1UNDER COVER 0009 1UNDER COVER 0010 1UNDER COVER

5701

57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4

main57054-06040iASV50,AVV50,GSV50201109-201409

57695FEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH

main57695-06020iAVV50201110-201409

57696DEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH

main57696-06010iAVV50201110-201409

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-06020iASV50,AVV50,GSV50201109-201409

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-06020iASV50,AVV50,GSV50201109-201409

58111PAN, FRONT FLOOR

main58111-06060iASV50,AVV50,GSV50201109-201407

sub58111-06061

main58111-06061iASV50,AVV50,GSV50201408-201409

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-06050iASV50,AVV50,GSV50201109-201409

58136COVER, FRONT FLOOR HOLE

main58136-06050iASV50,AVV50,GSV50201109-201706

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-06040iASV50,AVV50,GSV50201109-201409

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-07030iASV50,AVV50,GSV50201109-201510

main58189-07030iASV50,AVV50,GSV50201510

(L)

main58189-33050iASV50,AVV50,GSV50201510

(J)

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-06050iASV50,AVV50,GSV50201109-201409

58204HPAN SUB-ASSY, CENTER FLOOR, REAR

main58204-07010iASV50,AVV50,GSV50201109-201409

58211HPAN, CENTER FLOOR

main58211-06201iASV50,GSV50201109-201409

main58211-06211iAVV50201110-201409

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-06150iASV50,AVV50,GSV50201109-201409

main58307-06200iASV50,AVV50,GSV50201409

58309JRETAINER SUB-ASSY, LUGGAGE DOOR LOCK STRIKER

main58309-06090iASV50,AVV50,GSV50201109-201409

58311PAN, REAR FLOOR

main58311-06151iASV50,GSV50201109-201409

main58311-06171iAVV50201110-201409

58313PANEL, REAR FLOOR SIDE, RH

main58313-06120iASV50,GSV50201109-201409

main58313-06130iAVV50201110-201409

58314PANEL, REAR FLOOR SIDE, LH

main58314-06120iASV50,AVV50,GSV50201109-201409

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58303-06010iASV50,AVV50,GSV50201109-201409

main58303-06020iASV50,AVV50,GSV50201409

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58304-06020iASV50,AVV50,GSV50201109-201409

main58304-06030iASV50,AVV50,GSV50201409

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06060iASV50,AVV50,GSV50201109-201403

sub58325-06061

main58325-06061iASV50,AVV50,GSV50201403-201409

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-06070iASV50,AVV50,GSV50201109-201409

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58336-06070iASV50,AVV50,GSV50201109-201409

58351EBRACKET, SPARE WHEEL CLAMP

main58351-06030iASV50,AVV50,GSV50201109-201409

58385DBRACKET, REAR BUMPER COVER

main58385-06080iASV50,AVV50,GSV50201109-201409

main58385-06130iASV50,AVV50,GSV50201409

58621FSILENCER, CENTER CONSOLE, NO.1

main58621-06160iASV50,AVV50,GSV50201109-201211

sub58621-06161

main58621-06161iASV50,AVV50,GSV50201212-201409

main58621-07020iASV50,AVV50,GSV50201409

61061FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1

main61061-06031iASV50,AVV50,GSV50201109-201207

sub61061-06032

main61061-06032iASV50,AVV50,GSV50201208-201409

61062FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2

main61062-06031iASV50,AVV50,GSV50201109-201207

sub61062-06032

main61062-06032iASV50,AVV50,GSV50201208-201409

9008011610

main90080-11610

90119A0061

main90119-A0061

90119A0127

main90119-A0127

32 parts on this diagram · 10 diagrams in section
