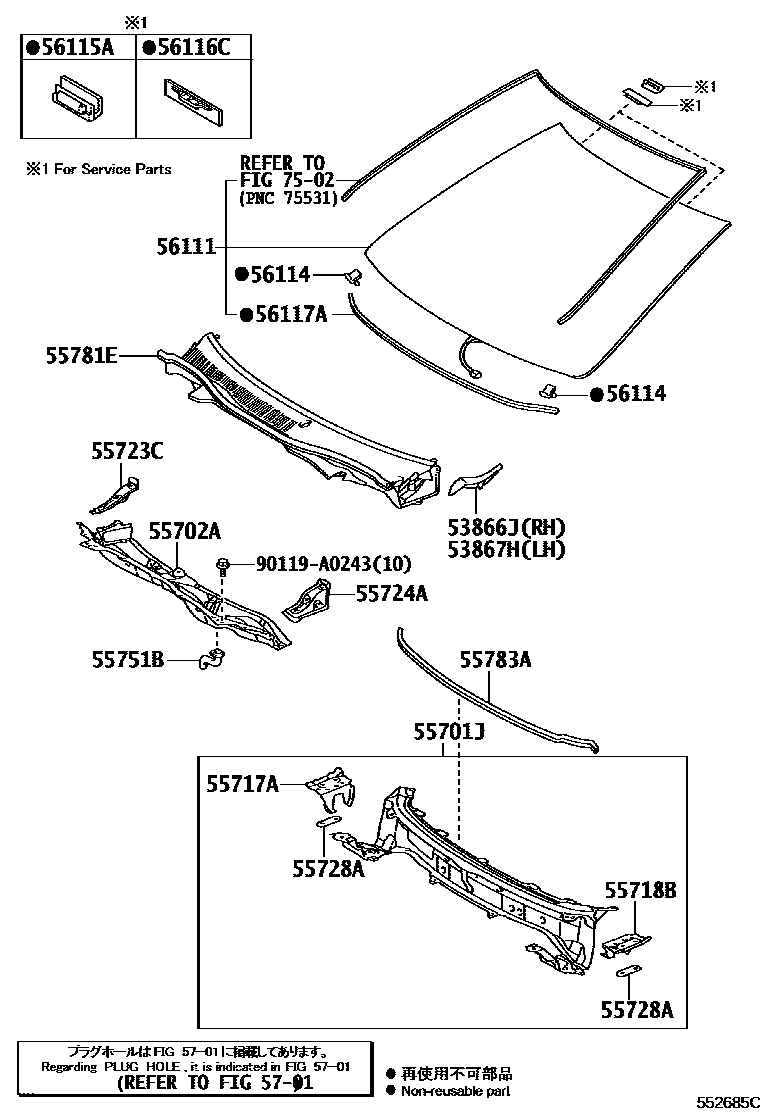

COWL PANEL & WINDSHIELD GLASS
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55723CREINFORCEMENT, COWL TOP SIDE, RH
55724AREINFORCEMENT, COWL TOP SIDE, LH
55728AREINFORCEMENT, HOOD STOPPER
55751BHOSE, COWL WATER EXTRACT, NO.1
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
COLD AREA SPEC
55783APAD, COWL TOP SILENCER
56111GLASS, WINDSHIELD
*HSEAL,T=4.76,GREEN
*HSEAL,T=4.56,GREEN
*HSEAL,T=4.56,GREEN
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1358
*D,L=1358,PRE-COLLISION SYSTEM-WITH
5701
7502
90119A0243
main90119-A0243
20 parts on this diagram · 2 diagrams in section
