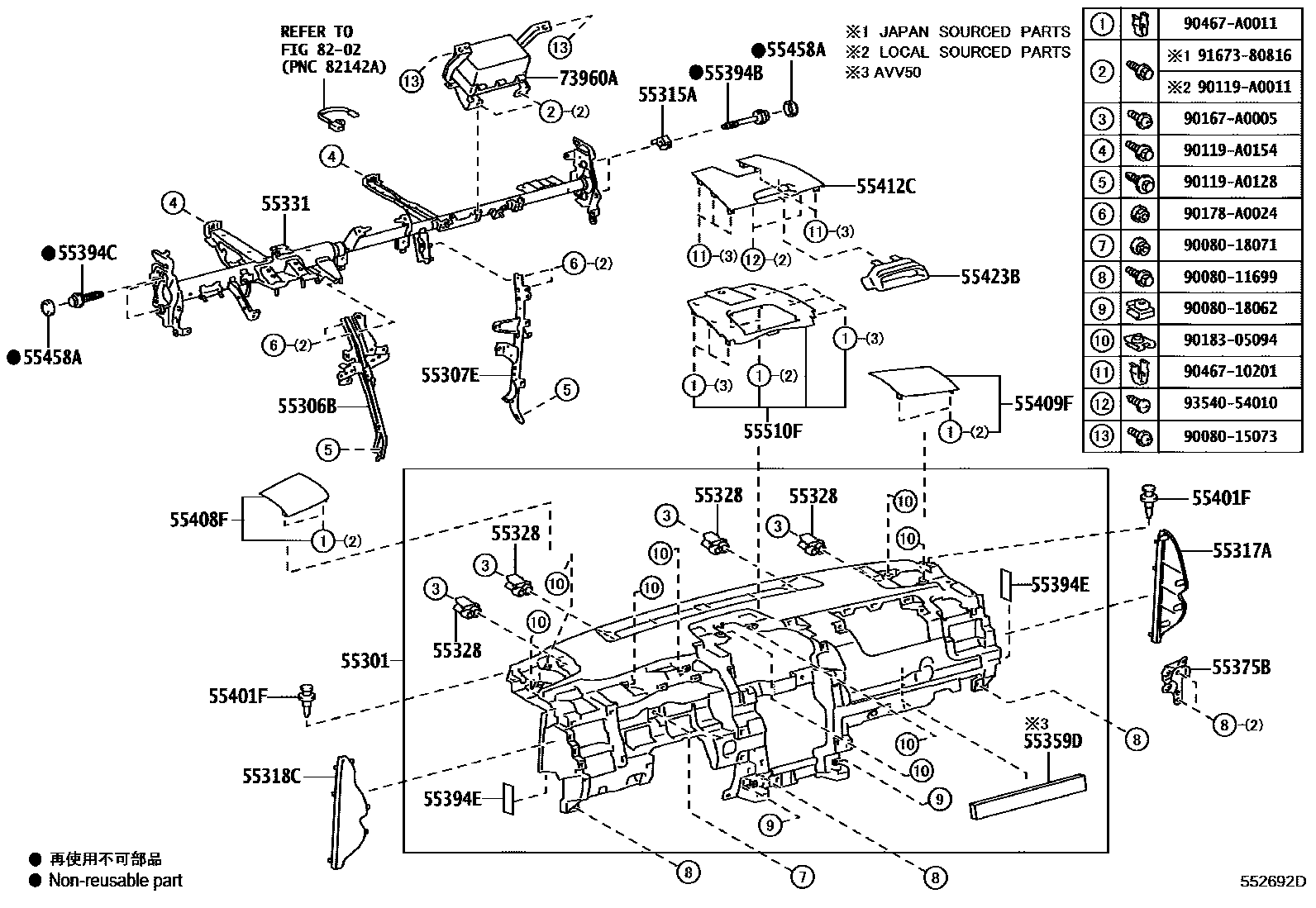

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-06210-C0iASV50,GSV50..SE,XSE201409-201706

BLACK,TRIM1#,2#

main55301-06210-C0iASV50,GSV50..LE,XLE201409-201706

BLACK,TRIM0#,1#,2#

main55301-06240-C0iAVV50..LE,XLE201409-201706

BLACK,TRIM1#,2#

main55301-06240-C0iAVV50..LE,XLE201409-201706

BLACK,TRIM0#,1#,2#

main55301-06260-C0iASV50,GSV50..LE,N,XLE201109-201409

BLACK,TRIM0#,1#

main55301-06260-C0iASV50,GSV50..SE201109-201409

BLACK,TRIM1#,2#

main55301-06270-C0iAVV50..SE201402-201409

BLACK,TRIM1#,2#

main55301-06270-C0iAVV50..LE,XLE201110-201409

BLACK,TRIM0#,1#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-06070iASV50,AVV50,GSV50201109-201409

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-06060iASV50,AVV50,GSV50201109-201409

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-48160iASV50,AVV50,GSV50201109-201409

55317APANEL, INSTRUMENT SIDE, RH

main55317-06090-C0iASV50,AVV50,GSV50..LE,N,XLE201109-201409

BLACK,TRIM0#,1#

main55317-06090-C0iASV50,AVV50,GSV50..LE,N,XLE201109-201409

BLACK,TRIM1#,2#

main55317-06140-C0iASV50,AVV50,GSV50..SE,XSE201409-201706

BLACK,TRIM0#,1#,2#

main55317-06140-C0iASV50,AVV50,GSV50..LE,XLE201409-201706

BLACK,TRIM1#,2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-06080-C0iASV50,AVV50,GSV50..LE,N,XLE201109-201409

BLACK,TRIM0#,1#

main55318-06080-C0iASV50,AVV50,GSV50..LE,N,XLE201109-201409

BLACK,TRIM1#,2#

main55318-06160-C0iASV50,AVV50,GSV50..LE,XLE201409-201706

BLACK,TRIM0#,1#,2#

main55318-06160-C0iASV50,AVV50,GSV50..LE,XLE201409-201706

BLACK,TRIM1#,2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iASV50,AVV50,GSV50201109-201409

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-06290iASV50,AVV50,GSV50201109-201311

sub55330-06292

main55330-06292iASV50,AVV50,GSV50201312-201409

main55330-06330iASV50,AVV50,GSV50201409-201509

sub55330-06331

main55330-06331iASV50,AVV50,GSV50201510

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-06120iAVV50201110-201409

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-06210iASV50,AVV50,GSV50201109-201409

55394BBOLT, INSTRUMENT PANEL

main55394-08050iASV50,AVV50,GSV50201109-201111

sub90119-T0358

main90119-A0306iASV50,AVV50,GSV50201112-201409

55394CBOLT, INSTRUMENT PANEL

main55394-08030iASV50,AVV50,GSV50201109-201111

sub90119-T0357

main90119-A0305iASV50,AVV50,GSV50201112-201409

55394ECUSHION, INSTRUMENT PANEL, LOWER NO.4

main55394-06140iASV50,AVV50,GSV50201109-201409

55401FCLIP(FOR SAFETY PAD)

main52161-02020iASV50,AVV50,GSV50201109-201409

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-06070-C0iASV50,AVV50,GSV50..SE201109-201409

BLACK,TRIM0#,1#

main55472-06070-C0iASV50,AVV50,GSV50..SE201109-201706

BLACK,TRIM1#,2#

main55472-06070-C0iASV50,AVV50,GSV50..LE,XLE201409-201706

BLACK,TRIM0#,1#,2#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-06070-C0iASV50,AVV50,GSV50..LE,N,XLE201109-201409

BLACK,TRIM0#,1#

main55473-06070-C0iASV50,AVV50,GSV50..LE,N,XLE201109-201706

BLACK,TRIM1#,2#

main55473-06070-C0iASV50,AVV50,GSV50..LE,XLE201409-201706

BLACK,TRIM0#,1#,2#

55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55412-06120iASV50,AVV50,GSV50201109-201409

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-06020iASV50,AVV50,GSV50201109-201409

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110iASV50,AVV50,GSV50201109-201409

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-06010-C0iASV50,AVV50,GSV50..LE,N,XLE201109-201409

BLACK,TRIM1#,2#

main55510-06010-C0iASV50,AVV50,GSV50..SE201109-201409

BLACK,TRIM0#,1#

main55510-06030-C0iASV50,AVV50,GSV50..LE,XLE201409-201706

BLACK,TRIM0#,1#,2#

main55510-06030-C0iASV50,AVV50,GSV50..LE,XLE201409-201706

BLACK,TRIM1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06180iASV50,AVV50,GSV50201109-201409

main73960-06181iASV50,AVV50,GSV50201409

8202

9008011699

main90080-11699

9008015073

main90080-15073

9008018062

main90080-18062

9008018071

main90080-18071

90119A0011

main90119-A0011

90119A0128

main90119-A0128

90119A0154

main90119-A0154

90167A0005

main90167-A0005

90178A0024

main90178-A0024

9018305094

main90183-05094

9046710201

main90467-10201

90467A0011

main90467-A0011

9167380816

main91673-80816

9354054010

main93540-54010

36 parts on this diagram · 8 diagrams in section
