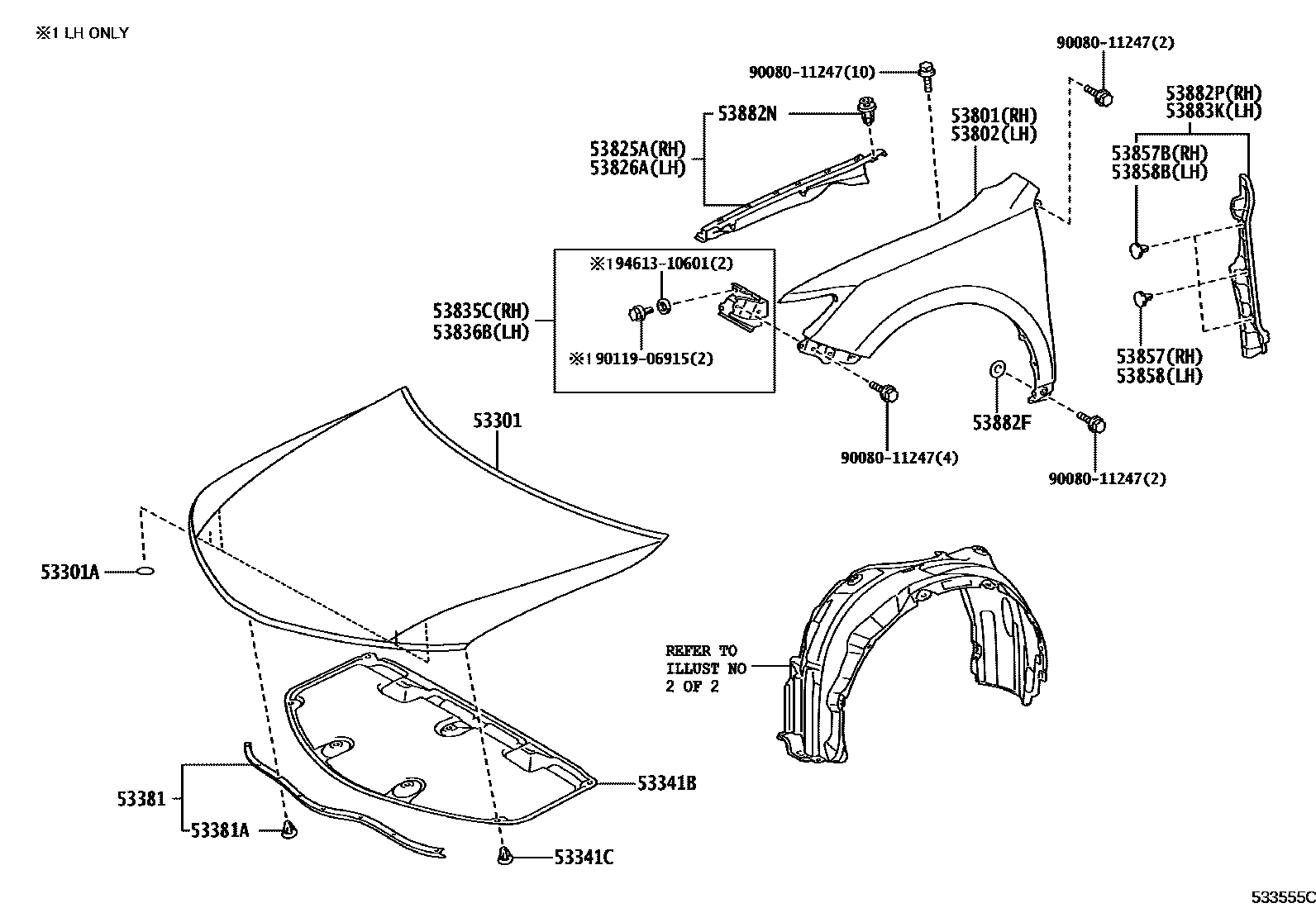

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53301APLUG, HOLE(FOR HOOD)
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53835CBRACKET, FRONT SIDE PANEL, RH
53836BBRACKET, FRONT SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882FSEAL, FRONT FENDER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
53882NCLIP(FOR FRONT FENDER SEAL)
53882PSEAL, FRONT FENDER, RH
53883KSEAL, FRONT FENDER, LH
9008011247
main90080-11247
9011906915
main90119-06915
9461310601
main94613-10601
23 parts on this diagram · 8 diagrams in section
