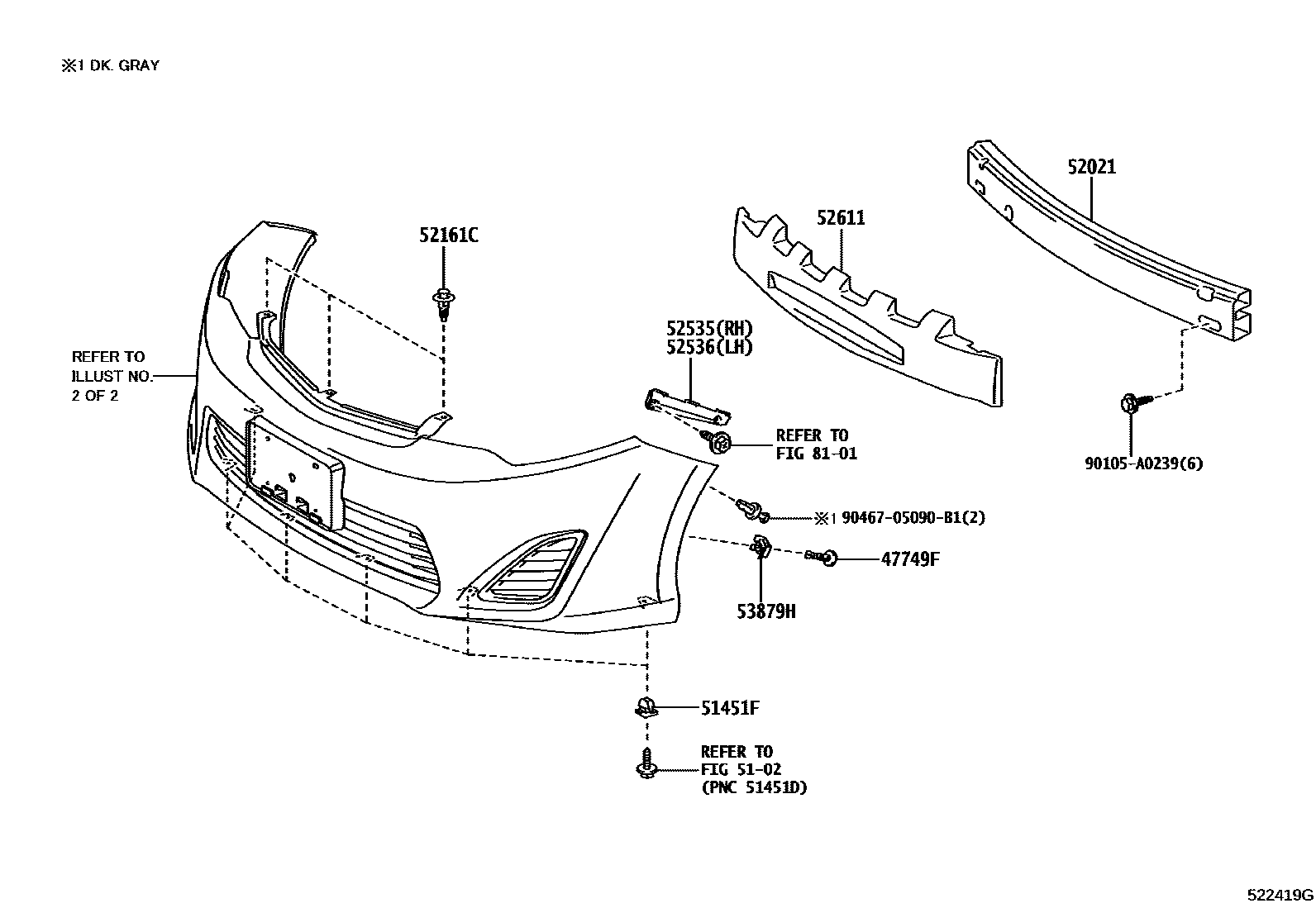

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

47749FCLIP, PIN HOLD

main47749-06010iASV50,AVV50,GSV50201501-201706

main47749-50090iASV50,AVV50,GSV50201109-201412

5102

51451FGROMMET, NO.1

main90189-06193iASV50,AVV50,GSV50201109-201704

main90189-06237iASV50,AVV50,GSV50201705-201706

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-06130iASV50,AVV50,GSV50201409

main52021-06140iASV50,AVV50,GSV50201312-201409

main52131-06101iASV50,AVV50,GSV50201109-201312

52161CPIECE, FRONT BUMPER

main52161-02020iASV50,AVV50,GSV50201109-201409

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-06130iASV50,AVV50,GSV50201109-201409

main52535-06190iASV50,AVV50,GSV50201409

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-06120iASV50,AVV50,GSV50201109-201409

main52536-06190iASV50,AVV50,GSV50201409

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06120iASV50,AVV50,GSV50..LE,N,XLE201109-201312

main52611-06121iASV50,AVV50,GSV50..LE,N,XLE201312-201409

main52611-06230iASV50,GSV50..SE201109-201312

main52611-06231iASV50,AVV50,GSV50..SE201312-201405

sub52611-06232

main52611-06232iASV50,AVV50,GSV50..SE201406-201409

main52611-06380iASV50,AVV50,GSV50201409

53879HRETAINER, FRONT FENDER LINER

main53879-06100iASV50,AVV50,GSV50201501

main53879-30040iASV50,AVV50,GSV50201109-201412

8101

90105A0239

main90105-A0239

9046705090B1

main90467-05090B1

12 parts on this diagram · 10 diagrams in section
