SPARE WHEEL CARRIER

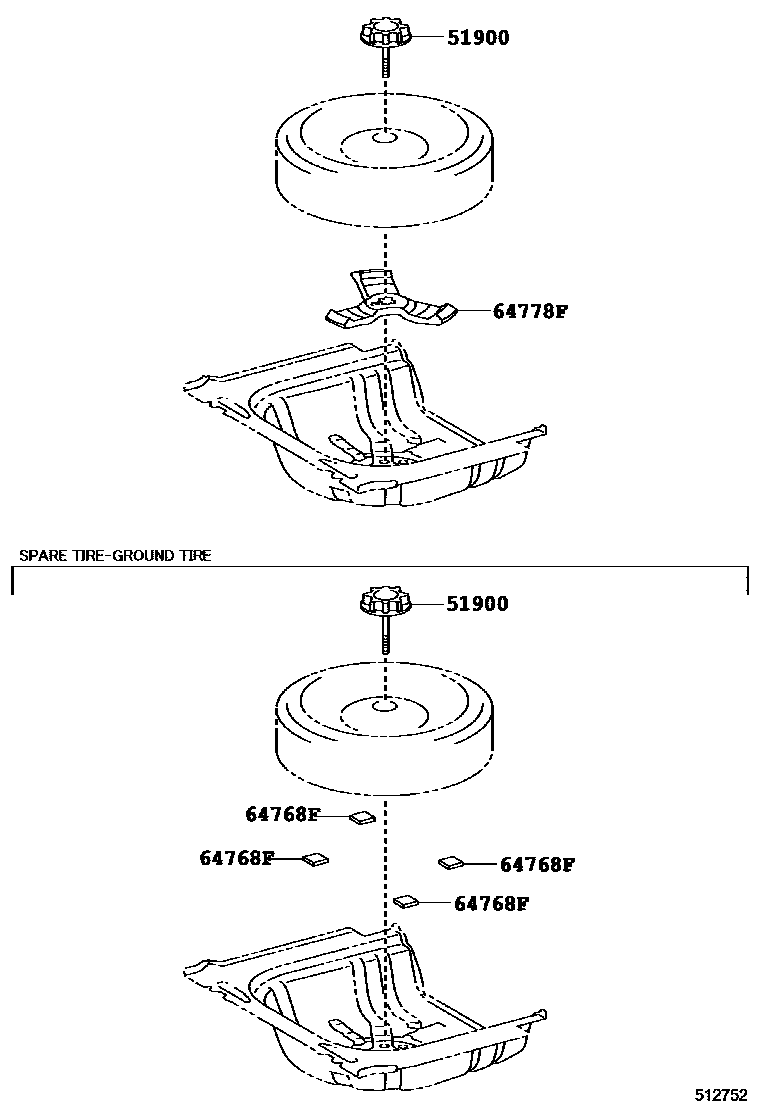

Parts diagram

51900CARRIER ASSY, SPARE WHEEL

main51931-06130i201109-201409

main51931-06170i201109-201409

MEXICO SPEC

64768FSTOPPER, JACK COVER

main64768-06010i201109-201409

MEXICO SPEC

64778FPROTECTOR, SPARE WHEEL

main64778-06070i201203-201409

3 parts on this diagram · 1 diagram in section
