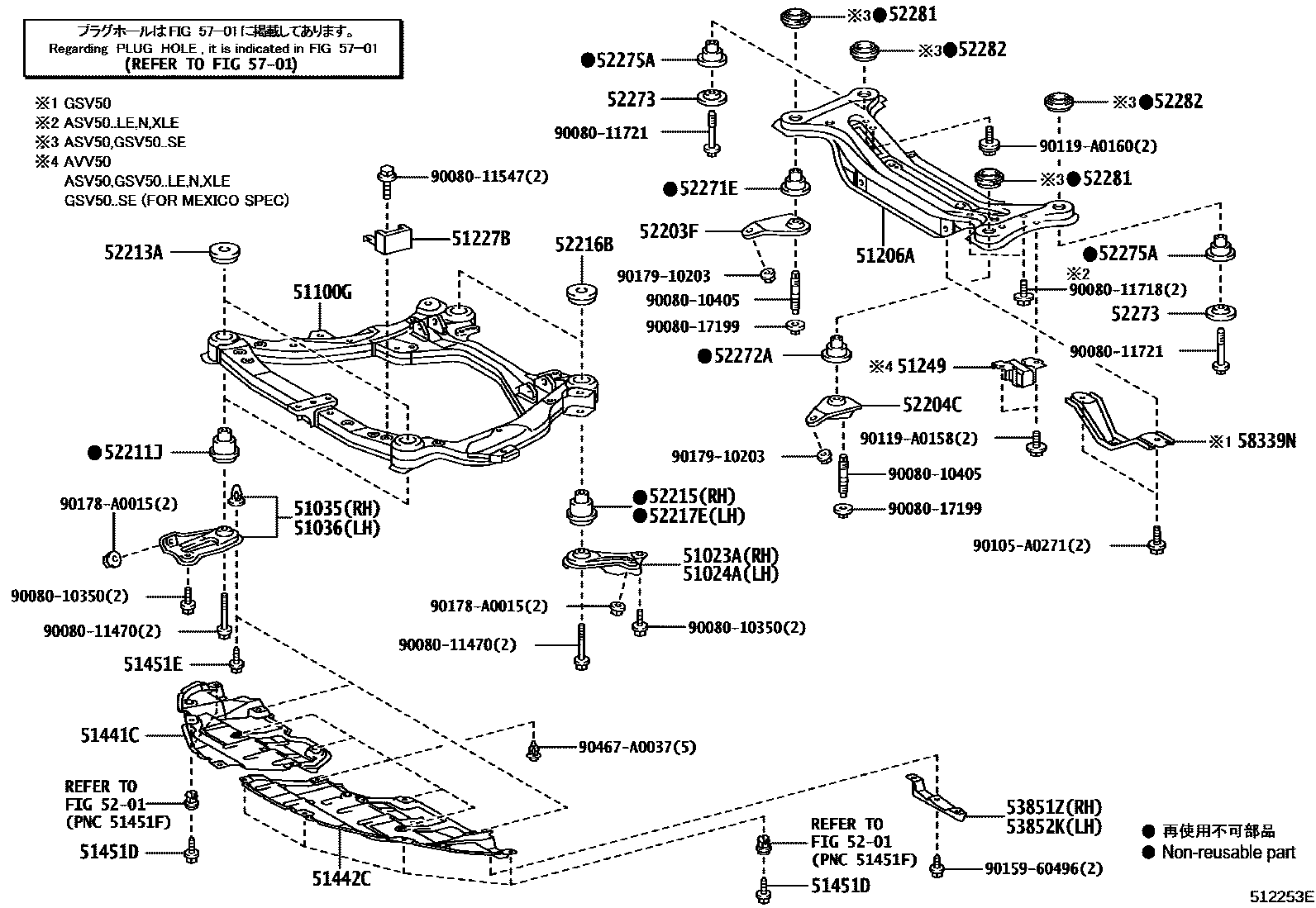

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-07010iASV50,AVV50,GSV50201109-201409

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-07010iASV50,AVV50,GSV50201109-201409

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-07010iASV50,AVV50,GSV50201109-201409

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-07010iASV50,AVV50,GSV50201109-201409

51100GFRAME ASSY, FRONT

main51100-06190iAVV50201110-201304

sub51100-06191

main51100-06191iAVV50201305-201306

main51100-07030iASV50,GSV50201109-201304

sub51100-07031

main51100-07031iASV50,GSV50201305-201311

sub51100-07033

main51100-07033iASV50,AVV50,GSV50201312-201403

sub51100-07034

sub90119-08D06¥110

main51100-07034iASV50,AVV50,GSV50201403-201411

sub51100-07035

main51100-07035iASV50,AVV50,GSV50201412

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06090iASV50,AVV50,GSV50201109-201304

sub51206-06091

main51206-06091iASV50,AVV50,GSV50201305-201409

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-08010iASV50,AVV50,GSV50201109-201409

51249DAMPER, REAR SUSPENSION MEMBER

main51249-06060iGSV50..SE201109-201409

MEXICO SPEC

51441CCOVER, ENGINE UNDER, RH

main51441-06150iASV50,AVV50,GSV50¥7,600201109-201409

main51441-06220iASV50,AVV50,GSV50201409

51442CCOVER, ENGINE UNDER, LH

main51442-06140iASV50,AVV50,GSV50¥9,800201109-201409

main51442-06210iASV50,AVV50,GSV50201409

51451DSCREW, NO.1

main90159-60477iASV50,AVV50,GSV50¥70201109-201706

51451ESCREW, NO.2

main90159-60477iASV50,AVV50,GSV50¥70201109-201706

5201

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-06041iASV50,AVV50,GSV50201109-201409

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52204-06041iASV50,AVV50,GSV50201109-201409

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06070iGSV50..SE201109-201409

main52211-06080iGSV50..SE201109-201409

MEXICO SPEC

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06070iGSV50..SE201109-201409

main52213-06080iGSV50..XSE201109-201409

MEXICO SPEC

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06060iGSV50..SE201109-201409

main52215-06120iGSV50..SE201109-201409

MEXICO SPEC

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06060iASV50,AVV50,GSV50201109-201409

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06040iAVV50,GSV50..SE,XSE201109-201409

main52217-06100iGSV50..SE201109-201409

MEXICO SPEC

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-06110iASV50,GSV50..LE,XLE201109-201409

MEXICO SPEC

main52271-06120iASV50,GSV50..SE201109-201409

main52271-07020iAVV50..LE,XLE201409

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-06100iASV50,GSV50..LE,XLE201109-201409

MEXICO SPEC

main52272-06110iASV50,GSV50..SE201109-201409

main52272-07020iAVV50..LE,XLE201409

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06010iASV50,AVV50,GSV50201109-201409

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06120iAVV50;ASV50,GSV50..LE,N,XLE201109-201409

MEXICO SPEC

main52275-06130iASV50,GSV50..SE201109-201409

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-06030iASV50,GSV50..SE201109-201409

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-06060iASV50,GSV50..SE201109-201409

53851ZPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-06040iASV50,AVV50,GSV50¥1,550201109-201409

main53851-06100iASV50,AVV50201409

53852KPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-06040iASV50,AVV50,GSV50¥1,550201109-201409

main53852-06100iASV50,AVV50201409

5701

58339NBRACKET, JACK UP

main58339-06030iGSV50201109-201409

9008010350

main90080-10350

9008010405

main90080-10405

9008011470

main90080-11470

9008011547

main90080-11547

9008011718

main90080-11718

9008011721

main90080-11721

9008017199

main90080-17199

90105A0271

main90105-A0271

90119A0158

main90119-A0158¥80

90119A0160

main90119-A0160

9015960496

main90159-60496¥60

90178A0015

main90178-A0015

9017910203

main90179-10203¥170

90467A0037

main90467-A0037

44 parts on this diagram · 2 diagrams in section
