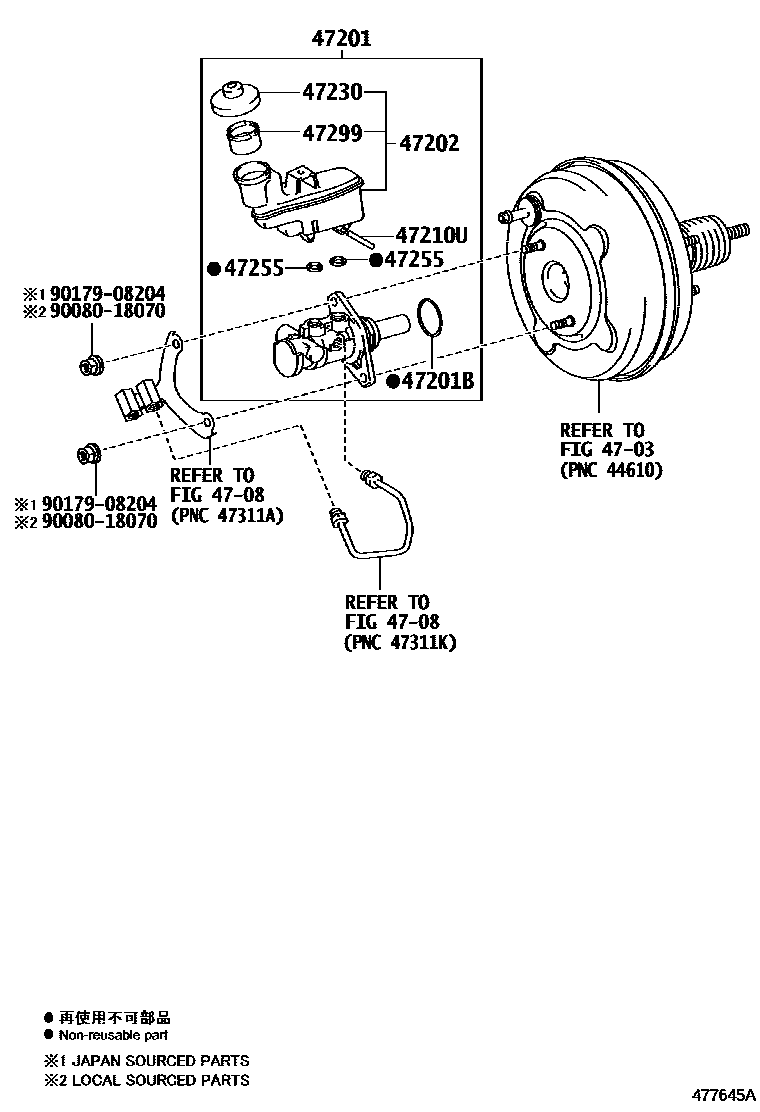

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06440iASV50,GSV50201109-201205

sub47201-06441

main47201-06441iASV50,GSV50201206-201207

sub47201-06443

main47201-06442iASV50,GSV50201207-201208

sub47201-06443

main47201-06443iASV50,GSV50201209-201409

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASV50,GSV50201109-201706

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-06180iASV50,GSV50201109-201409

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iASV50,GSV50201109-201706

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iASV50,GSV50201109-201412

sub47230-01031

main47230-01031iASV50,GSV50201412-201706

main47230-20140iAVV50201110-201706

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iASV50,GSV50201109-201706

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-06180iASV50,GSV50201412-201706

main47299-25010iASV50,GSV50201109-201412

9008018070

main90080-18070

9017908204

main90179-08204

11 parts on this diagram · 2 diagrams in section
