FRONT AXLE HOUSING & DIFFERENTIAL

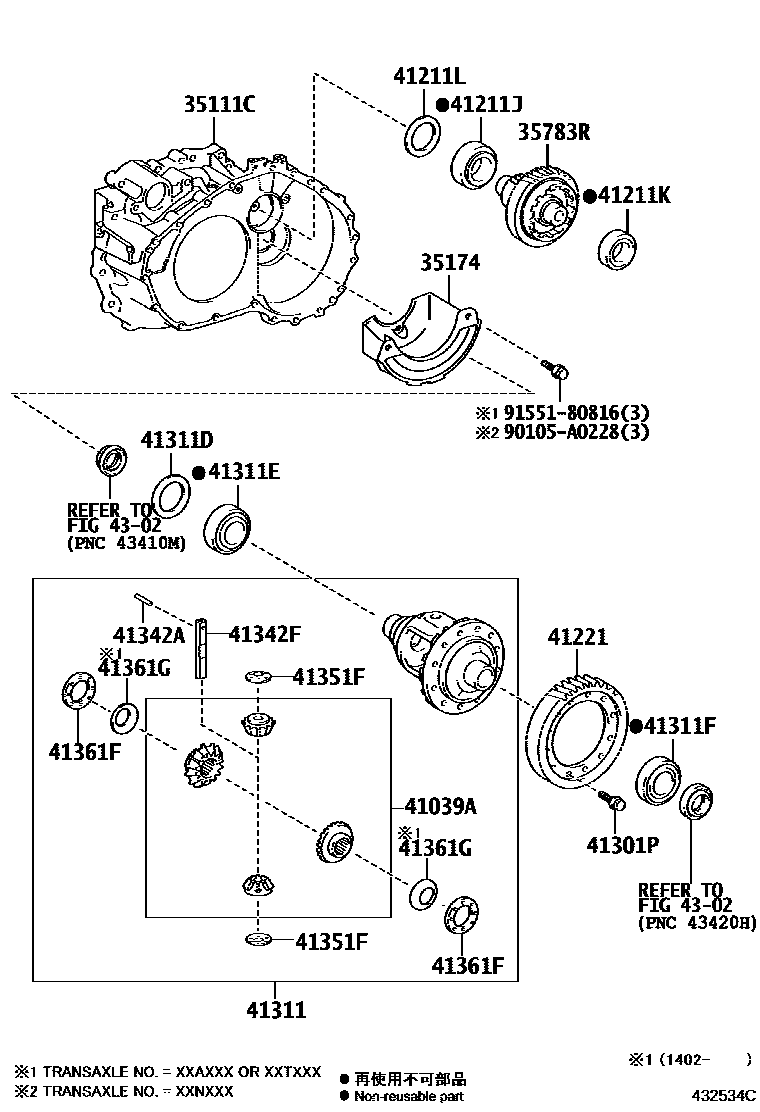

Parts diagram
35111CHOUSING, TRANSAXLE
main35105-06060i201111-201409
*385
sub35105-33022
main35105-08020i201109-201510
*323
sub35105-33012
main35105-08021i201510
*323
sub35105-33012
main35105-33011i201109-201502
*322
sub35105-33012
main35105-33012i201503
*322
main35105-33020i201109-201412
*285
sub35105-33021
main35105-33021i201412-201503
*285
sub35105-33022
main35105-33022i201504
*285
main35105-73030i201109-201110
*284
sub35105-73031
35174SEPARATOR, TRANSAXLE HOUSING OIL
main35174-73010i201109-201409
35783RGEAR, COUNTER DRIVEN
main35705-06010i201111-201409
*385
sub35705-33060
main35705-33050i201109-201110
*284
sub35705-33060
main35705-33060i201109-201705
*285
main35705-33070i201109-201409
41039AGEAR KIT, DIFFERENTIAL
main41039-28020i201109-201406
sub41039-28030
main41039-28030i201406-201409
main41039-48040i201402-201409
41211JBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION RH)
main90366-35167i201409
*285,(J)
main90366-35167i201109-201110
*284
main90366-35167i201204-201409
(J)
main90366-35167i201109-201409
*285
main90366-42006i201109-201308
*322
main90366-42012i201308-201409
main90366-A0032i201109-201409
*323
main90366-A0050i201111-201204
*385
main90366-A0050i201204-201409
(L)
41211KBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION LH)
main90366-32034i201109-201409
*285
main90366-32034i201109-201110
*284
main90366-32034i201204-201409
(J)
main90366-32034i201409
*285,(J)
main90366-35160i201109-201308
*322
main90366-35176i201308-201409
main90366-A0038i201109-201409
*323
main90366-A0047i201111-201204
*385
main90366-A0047i201204-201409
(L)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
main90564-61022i201109-201110
T=2.000,*284
main90564-61022i201109-201409
T=2.000,*285
main90564-61023i201109-201409
T=2.025,*285
main90564-61023i201109-201110
T=2.025,*284
main90564-61024i201109-201409
T=2.050,*285
main90564-61024i201109-201110
T=2.050,*284
main90564-61025i201109-201409
T=2.075,*285
main90564-61025i201109-201110
T=2.075,*284
main90564-61026i201109-201409
T=2.100,*285
main90564-61026i201109-201110
T=2.100,*284
main90564-61027i201109-201409
T=2.125,*285
main90564-61027i201109-201110
T=2.125,*284
main90564-61028i201109-201409
T=2.150,*285
main90564-61028i201109-201110
T=2.150,*284
main90564-61029i201109-201409
T=2.175,*285
main90564-61029i201109-201110
T=2.175,*284
main90564-61030i201109-201110
T=2.200,*284
main90564-61030i201109-201409
T=2.200,*285
main90564-61031i201109-201110
T=2.225,*284
main90564-61031i201109-201409
T=2.225,*285
main90564-61032i201109-201110
T=2.250,*284
main90564-61032i201109-201409
T=2.250,*285
main90564-61033i201109-201110
T=2.275,*284
main90564-61033i201109-201409
T=2.275,*285
main90564-61034i201109-201409
T=2.300,*285
main90564-61034i201109-201110
T=2.300,*284
main90564-61035i201109-201409
T=2.325,*285
main90564-61035i201109-201110
T=2.325,*284
main90564-61036i201109-201409
T=2.350,*285
main90564-61036i201109-201110
T=2.350,*284
main90564-61037i201109-201409
T=2.375,*285
main90564-61037i201109-201110
T=2.375,*284
main90564-61038i201109-201409
T=2.400,*285
main90564-61038i201109-201110
T=2.400,*284
main90564-61039i201109-201409
T=2.425,*285
main90564-61039i201109-201110
T=2.425,*284
main90564-61040i201109-201409
T=2.450,*285
main90564-61040i201109-201110
T=2.450,*284
main90564-61041i201109-201409
T=2.475,*285
main90564-61041i201109-201110
T=2.475,*284
main90564-61042i201109-201409
T=2.500,*285
main90564-61042i201109-201110
T=2.500,*284
main90564-61043i201109-201409
T=2.525,*285
main90564-61043i201109-201110
T=2.525,*284
main90564-61044i201109-201110
T=2.550,*284
main90564-61044i201109-201409
T=2.550,*285
main90564-61045i201109-201110
T=2.575,*284
main90564-61045i201109-201409
T=2.575,*285
main90564-61046i201109-201409
T=2.600,*285
main90564-61046i201109-201110
T=2.600,*284
main90564-61047i201109-201409
T=2.625,*285
main90564-61047i201109-201110
T=2.625,*284
main90564-61048i201109-201110
T=2.650,*284
main90564-61048i201109-201409
T=2.650,*285
main90564-61049i201109-201409
T=2.675,*285
main90564-61049i201109-201110
T=2.675,*284
main90564-61050i201109-201110
T=2.700,*284
main90564-61050i201109-201409
T=2.700,*285
main90564-61051i201109-201409
T=2.725,*285
main90564-61051i201109-201110
T=2.725,*284
main90564-61052i201109-201110
T=2.750,*284
main90564-61052i201109-201409
T=2.750,*285
main90564-61053i201109-201409
T=2.775,*285
main90564-61053i201109-201110
T=2.775,*284
main90564-61054i201109-201110
T=2.800,*284
main90564-61054i201109-201409
T=2.800,*285
main90564-61055i201109-201110
T=2.825,*284
main90564-61055i201109-201409
T=2.825,*285
main90564-61056i201109-201110
T=2.850,*284
main90564-61056i201109-201409
T=2.850,*285
main90564-61057i201109-201409
T=2.875,*285
main90564-61057i201109-201110
T=2.875,*284
main90564-61058i201109-201110
T=2.900,*284
main90564-61058i201109-201409
T=2.900,*285
main90564-61059i201109-201110
T=2.925,*284
main90564-61059i201109-201409
T=2.925,*285
main90564-61060i201109-201409
T=2.950,*285
main90564-61060i201109-201110
T=2.950,*284
main90564-61061i201109-201409
T=2.975,*285
main90564-61061i201109-201110
T=2.975,*284
main90564-61062i201109-201110
T=3.000,*284
main90564-61062i201109-201409
T=3.000,*285
main90564-71014i201109-201409
T=2.000,*322
main90564-71015i201109-201409
T=2.025,*322
main90564-71016i201109-201409
T=2.050,*322
main90564-71017i201109-201409
T=2.075,*322
main90564-71018i201109-201409
T=2.100,*322
main90564-71019i201109-201409
T=2.125,*322
main90564-71020i201109-201409
T=2.150,*322
main90564-71021i201109-201409
T=2.175,*322
main90564-71022i201109-201409
T=2.200,*322
main90564-71023i201109-201409
T=2.225,*322
main90564-71024i201109-201409
T=2.250,*322
main90564-71025i201109-201409
T=2.275,*322
main90564-71026i201109-201409
T=2.300,*322
main90564-71027i201109-201409
T=2.325,*322
main90564-71028i201109-201409
T=2.350,*322
main90564-71029i201109-201409
T=2.375,*322
main90564-71030i201109-201409
T=2.400,*322
main90564-71031i201109-201409
T=2.425,*322
main90564-71032i201109-201409
T=2.450,*322
main90564-71033i201109-201409
T=2.475,*322
main90564-71034i201109-201409
T=2.500,*322
main90564-71035i201109-201409
T=2.525,*322
main90564-71036i201109-201409
T=2.550,*322
main90564-71037i201109-201409
T=2.575,*322
main90564-71038i201109-201409
T=2.600,*322
main90564-71039i201109-201409
T=2.625,*322
main90564-71040i201109-201409
T=2.650,*322
main90564-71041i201109-201409
T=2.675,*322
main90564-71042i201109-201409
T=2.700,*322
main90564-71043i201109-201409
T=2.725,*322
main90564-71044i201109-201409
T=2.750,*322
main90564-71045i201109-201409
T=2.775,*322
main90564-71046i201109-201409
T=2.800,*322
main90564-71047i201109-201409
T=2.825,*322
main90564-71048i201109-201409
T=2.850,*322
main90564-71049i201109-201409
T=2.875,*322
main90564-71050i201109-201409
T=2.900,*322
main90564-71051i201109-201409
T=2.925,*322
main90564-71052i201109-201409
T=2.950,*322
main90564-71053i201109-201409
T=2.975,*322
main90564-71054i201109-201409
T=3.000,*322
main90564-A0142i201109-201409
T=2.000,*323
main90564-A0143i201109-201409
T=2.025,*323
main90564-A0144i201109-201409
T=2.050,*323
main90564-A0145i201109-201409
T=2.075,*323
main90564-A0146i201109-201409
T=2.100,*323
main90564-A0147i201109-201409
T=2.125,*323
main90564-A0148i201109-201409
T=2.150,*323
main90564-A0149i201109-201409
T=2.175,*323
main90564-A0150i201109-201409
T=2.200,*323
main90564-A0151i201109-201409
T=2.225,*323
main90564-A0152i201109-201409
T=2.250,*323
main90564-A0153i201109-201409
T=2.275,*323
main90564-A0154i201109-201409
T=2.300,*323
main90564-A0155i201109-201409
T=2.325,*323
main90564-A0156i201109-201409
T=2.350,*323
main90564-A0157i201109-201409
T=2.375,*323
main90564-A0158i201109-201409
T=2.400,*323
main90564-A0159i201109-201409
T=2.425,*323
main90564-A0160i201109-201409
T=2.450,*323
main90564-A0161i201109-201409
T=2.475,*323
main90564-A0162i201109-201409
T=2.500,*323
main90564-A0163i201109-201409
T=2.525,*323
main90564-A0164i201109-201409
T=2.550,*323
main90564-A0165i201109-201409
T=2.575,*323
main90564-A0166i201109-201409
T=2.600,*323
main90564-A0167i201109-201409
T=2.625,*323
main90564-A0168i201109-201409
T=2.650,*323
main90564-A0169i201109-201409
T=2.675,*323
main90564-A0170i201109-201409
T=2.700,*323
main90564-A0171i201109-201409
T=2.725,*323
main90564-A0172i201109-201409
T=2.750,*323
main90564-A0173i201109-201409
T=2.775,*323
main90564-A0174i201109-201409
T=2.800,*323
main90564-A0175i201109-201409
T=2.825,*323
main90564-A0176i201109-201409
T=2.850,*323
main90564-A0177i201109-201409
T=2.875,*323
main90564-A0178i201109-201409
T=2.900,*323
main90564-A0179i201109-201409
T=2.925,*323
main90564-A0180i201109-201409
T=2.950,*323
main90564-A0181i201109-201409
T=2.975,*323
main90564-A0182i201109-201409
T=3.000,*323
main90564-A0219i201111-201409
T=2.000,*385
main90564-A0220i201111-201409
T=2.025,*385
main90564-A0221i201111-201409
T=2.050,*385
main90564-A0222i201111-201409
T=2.075,*385
main90564-A0223i201111-201409
T=2.100,*385
main90564-A0224i201111-201409
T=2.125,*385
main90564-A0225i201111-201409
T=2.150,*385
main90564-A0226i201111-201409
T=2.175,*385
main90564-A0227i201111-201409
T=2.200,*385
main90564-A0228i201111-201409
T=2.225,*385
main90564-A0229i201111-201409
T=2.250,*385
main90564-A0230i201111-201409
T=2.275,*385
main90564-A0231i201111-201409
T=2.300,*385
main90564-A0232i201111-201409
T=2.325,*385
main90564-A0233i201111-201409
T=2.350,*385
main90564-A0234i201111-201409
T=2.375,*385
main90564-A0235i201111-201409
T=2.400,*385
main90564-A0236i201111-201409
T=2.425,*385
main90564-A0237i201111-201409
T=2.450,*385
main90564-A0238i201111-201409
T=2.475,*385
main90564-A0239i201111-201409
T=2.500,*385
main90564-A0240i201111-201409
T=2.525,*385
main90564-A0241i201111-201409
T=2.550,*385
main90564-A0242i201111-201409
T=2.575,*385
main90564-A0243i201111-201409
T=2.600,*385
main90564-A0244i201111-201409
T=2.625,*385
main90564-A0245i201111-201409
T=2.650,*385
main90564-A0246i201111-201409
T=2.675,*385
main90564-A0247i201111-201409
T=2.700,*385
main90564-A0248i201111-201409
T=2.725,*385
main90564-A0249i201111-201409
T=2.750,*385
main90564-A0250i201111-201409
T=2.775,*385
main90564-A0251i201111-201409
T=2.800,*385
main90564-A0252i201111-201409
T=2.825,*385
main90564-A0253i201111-201409
T=2.850,*385
main90564-A0254i201111-201409
T=2.875,*385
main90564-A0255i201111-201409
T=2.900,*385
main90564-A0256i201111-201409
T=2.925,*385
main90564-A0257i201111-201409
T=2.950,*385
main90564-A0258i201111-201409
T=2.975,*385
main90564-A0259i201111-201409
T=3.000,*385
41221GEAR, FRONT DIFFERENTIAL RING
main41221-33200i201109-201110
*284
sub41221-33210
main41221-33210i201109-201409
*285
main41221-33210i201111-201409
*385
main41221-33210i201409
*285,*385
main41221-33220i201109-201409
sub41221-33330
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
main90080-10239i201109-201706
*323
main90080-10239i201111-201706
*385
main90105-12303i201109-201706
*322
main90105-12303i201109-201706
*285
main90105-12303i201109-201110
*284
41311CASE, FRONT DIFFERENTIAL
main41301-06010i201111-201407
*385
sub41301-06011
main41301-06011i201407-201409
*385
sub41301-33101
main41301-07030i201109-201408
*323
sub41301-07031
main41301-07031i201408-201409
*323
sub41301-48120
main41301-07031i201409-201411
sub41301-48120
main41301-33100i201109-201406
*285
sub41301-33101
main41301-33101i201406-201409
*285
main41301-33120i201109-201402
*322
sub41301-48120
main41301-48120i201402-201409
*322
main41301-73010i201109-201110
*284
sub41301-73011
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
main90564-69001i201109-201110
T=2.000,*284
main90564-69001i201109-201409
T=2.000,*285
main90564-69002i201109-201110
T=2.025,*284
main90564-69002i201109-201409
T=2.025,*285
main90564-69003i201109-201409
T=2.050,*285
main90564-69003i201109-201110
T=2.050,*284
main90564-69004i201109-201409
T=2.075,*285
main90564-69004i201109-201110
T=2.075,*284
main90564-69005i201109-201110
T=2.100,*284
main90564-69005i201109-201409
T=2.100,*285
main90564-69006i201109-201110
T=2.125,*284
main90564-69006i201109-201409
T=2.125,*285
main90564-69007i201109-201409
T=2.150,*285
main90564-69007i201109-201110
T=2.150,*284
main90564-69008i201109-201409
T=2.175,*285
main90564-69008i201109-201110
T=2.175,*284
main90564-69009i201109-201110
T=2.200,*284
main90564-69009i201109-201409
T=2.200,*285
main90564-69010i201109-201409
T=2.225,*285
main90564-69010i201109-201110
T=2.225,*284
main90564-69011i201109-201110
T=2.250,*284
main90564-69011i201109-201409
T=2.250,*285
main90564-69012i201109-201110
T=2.275,*284
main90564-69012i201109-201409
T=2.275,*285
main90564-69013i201109-201110
T=2.300,*284
main90564-69013i201109-201409
T=2.300,*285
main90564-69014i201109-201409
T=2.325,*285
main90564-69014i201109-201110
T=2.325,*284
main90564-69015i201109-201409
T=2.350,*285
main90564-69015i201109-201110
T=2.350,*284
main90564-69016i201109-201110
T=2.375,*284
main90564-69016i201109-201409
T=2.375,*285
main90564-69017i201109-201110
T=2.400,*284
main90564-69017i201109-201409
T=2.400,*285
main90564-69020i201109-201409
T=2.425,*285
main90564-69020i201109-201110
T=2.425,*284
main90564-69021i201109-201409
T=2.450,*285
main90564-69021i201109-201110
T=2.450,*284
main90564-69022i201109-201110
T=2.475,*284
main90564-69022i201109-201409
T=2.475,*285
main90564-69023i201109-201409
T=2.500,*285
main90564-69023i201109-201110
T=2.500,*284
main90564-69024i201109-201110
T=2.525,*284
main90564-69024i201109-201409
T=2.525,*285
main90564-69025i201109-201409
T=2.550,*285
main90564-69025i201109-201110
T=2.550,*284
main90564-69026i201109-201409
T=2.575,*285
main90564-69026i201109-201110
T=2.575,*284
main90564-69027i201109-201409
T=2.600,*285
main90564-69027i201109-201110
T=2.600,*284
main90564-69028i201109-201409
T=2.625,*285
main90564-69028i201109-201110
T=2.625,*284
main90564-69029i201109-201409
T=2.650,*285
main90564-69029i201109-201110
T=2.650,*284
main90564-69030i201109-201409
T=2.675,*285
main90564-69030i201109-201110
T=2.675,*284
main90564-69031i201109-201110
T=2.700,*284
main90564-69031i201109-201409
T=2.700,*285
main90564-69032i201109-201409
T=2.725,*285
main90564-69032i201109-201110
T=2.725,*284
main90564-69033i201109-201110
T=2.750,*284
main90564-69033i201109-201409
T=2.750,*285
main90564-69034i201109-201409
T=2.775,*285
main90564-69034i201109-201110
T=2.775,*284
main90564-69035i201109-201110
T=2.800,*284
main90564-69035i201109-201409
T=2.800,*285
main90564-69036i201109-201110
T=2.825,*284
main90564-69036i201109-201409
T=2.825,*285
main90564-69037i201109-201409
T=2.850,*285
main90564-69037i201109-201110
T=2.850,*284
main90564-69038i201109-201409
T=2.875,*285
main90564-69038i201109-201110
T=2.875,*284
main90564-79054i201109-201409
T=2.000,*322
main90564-79055i201109-201409
T=2.025,*322
main90564-79056i201109-201409
T=2.050,*322
main90564-79057i201109-201409
T=2.075,*322
main90564-79058i201109-201409
T=2.100,*322
main90564-79059i201109-201409
T=2.125,*322
main90564-79060i201109-201409
T=2.150,*322
main90564-79061i201109-201409
T=2.175,*322
main90564-79062i201109-201409
T=2.200,*322
main90564-79063i201109-201409
T=2.225,*322
main90564-79064i201109-201409
T=2.250,*322
main90564-79065i201109-201409
T=2.275,*322
main90564-79066i201109-201409
T=2.300,*322
main90564-79067i201109-201409
T=2.325,*322
main90564-79068i201109-201409
T=2.350,*322
main90564-79069i201109-201409
T=2.375,*322
main90564-79070i201109-201409
T=2.400,*322
main90564-79071i201109-201409
T=2.425,*322
main90564-79072i201109-201409
T=2.450,*322
main90564-79073i201109-201409
T=2.475,*322
main90564-79074i201109-201409
T=2.500,*322
main90564-79075i201109-201409
T=2.525,*322
main90564-79076i201109-201409
T=2.550,*322
main90564-79077i201109-201409
T=2.575,*322
main90564-79078i201109-201409
T=2.600,*322
main90564-79079i201109-201409
T=2.625,*322
main90564-79080i201109-201409
T=2.650,*322
main90564-79081i201109-201409
T=2.675,*322
main90564-79082i201109-201409
T=2.700,*322
main90564-79083i201109-201409
T=2.725,*322
main90564-79084i201109-201409
T=2.750,*322
main90564-79085i201109-201409
T=2.775,*322
main90564-79086i201109-201409
T=2.800,*322
main90564-79087i201109-201409
T=2.825,*322
main90564-79088i201109-201409
T=2.850,*322
main90564-79089i201109-201409
T=2.875,*322
main90564-A0106i201109-201409
T=2.000,*323
main90564-A0107i201109-201409
T=2.025,*323
main90564-A0108i201109-201409
T=2.050,*323
main90564-A0109i201109-201409
T=2.075,*323
main90564-A0110i201109-201409
T=2.100,*323
main90564-A0111i201109-201409
T=2.125,*323
main90564-A0112i201109-201409
T=2.150,*323
main90564-A0113i201109-201409
T=2.175,*323
main90564-A0114i201109-201409
T=2.200,*323
main90564-A0115i201109-201409
T=2.225,*323
main90564-A0116i201109-201409
T=2.250,*323
main90564-A0117i201109-201409
T=2.275,*323
main90564-A0118i201109-201409
T=2.300,*323
main90564-A0119i201109-201409
T=2.325,*323
main90564-A0120i201109-201409
T=2.350,*323
main90564-A0121i201109-201409
T=2.375,*323
main90564-A0122i201109-201409
T=2.400,*323
main90564-A0123i201109-201409
T=2.425,*323
main90564-A0124i201109-201409
T=2.450,*323
main90564-A0125i201109-201409
T=2.475,*323
main90564-A0126i201109-201409
T=2.500,*323
main90564-A0127i201109-201409
T=2.525,*323
main90564-A0128i201109-201409
T=2.550,*323
main90564-A0129i201109-201409
T=2.575,*323
main90564-A0130i201109-201409
T=2.600,*323
main90564-A0131i201109-201409
T=2.625,*323
main90564-A0132i201109-201409
T=2.650,*323
main90564-A0133i201109-201409
T=2.675,*323
main90564-A0134i201109-201409
T=2.700,*323
main90564-A0135i201109-201409
T=2.725,*323
main90564-A0136i201109-201409
T=2.750,*323
main90564-A0137i201109-201409
T=2.775,*323
main90564-A0138i201109-201409
T=2.800,*323
main90564-A0139i201109-201409
T=2.825,*323
main90564-A0140i201109-201409
T=2.850,*323
main90564-A0141i201109-201409
T=2.875,*323
main90564-A0260i201111-201409
T=2.000,*385
main90564-A0261i201111-201409
T=2.025,*385
main90564-A0262i201111-201409
T=2.050,*385
main90564-A0263i201111-201409
T=2.075,*385
main90564-A0264i201111-201409
T=2.100,*385
main90564-A0265i201111-201409
T=2.125,*385
main90564-A0266i201111-201409
T=2.150,*385
main90564-A0267i201111-201409
T=2.175,*385
main90564-A0268i201111-201409
T=2.200,*385
main90564-A0269i201111-201409
T=2.225,*385
main90564-A0270i201111-201409
T=2.250,*385
main90564-A0271i201111-201409
T=2.275,*385
main90564-A0272i201111-201409
T=2.300,*385
main90564-A0273i201111-201409
T=2.325,*385
main90564-A0274i201111-201409
T=2.350,*385
main90564-A0275i201111-201409
T=2.375,*385
main90564-A0276i201111-201409
T=2.400,*385
main90564-A0277i201111-201409
T=2.425,*385
main90564-A0278i201111-201409
T=2.450,*385
main90564-A0279i201111-201409
T=2.475,*385
main90564-A0280i201111-201409
T=2.500,*385
main90564-A0281i201111-201409
T=2.525,*385
main90564-A0282i201111-201409
T=2.550,*385
main90564-A0283i201111-201409
T=2.575,*385
main90564-A0284i201111-201409
T=2.600,*385
main90564-A0285i201111-201409
T=2.625,*385
main90564-A0286i201111-201409
T=2.650,*385
main90564-A0287i201111-201409
T=2.675,*385
main90564-A0288i201111-201409
T=2.700,*385
main90564-A0289i201111-201409
T=2.725,*385
main90564-A0290i201111-201409
T=2.750,*385
main90564-A0291i201111-201409
T=2.775,*385
main90564-A0292i201111-201409
T=2.800,*385
main90564-A0293i201111-201409
T=2.825,*385
main90564-A0294i201111-201409
T=2.850,*385
main90564-A0295i201111-201409
T=2.875,*385
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
main90366-50118i201109-201409
*285
main90366-50118i201109-201110
*284
main90366-50118i201111-201210
*385
main90366-50136i201109-201308
*322
main90366-50149i201308-201409
main90366-A0041i201109-201409
*323
main90366-A0056i201210-201409
*385
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
main90366-55071i201109-201409
main90366-55074i201109-201308
*322
main90366-55077i201308-201409
main90366-A0044i201109-201409
*323
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
main90250-06058i201109-201409
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
main41342-33050i201109-201402
sub41342-33051
main41342-33051i201402-201409
main41342-33060i201109-201406
*285
sub41342-33061
main41342-33060i201111-201407
*385
sub41342-33061
main41342-33061i201406-201409
main41342-73010i201109-201110
*284
sub41342-73011
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
main41351-33030i201109-201409
main41351-73010i201109-201409
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-06010i201411
T=1.50,*323
main41361-06020i201411
T=1.55,*323
main41361-06030i201411
T=1.60,*323
main41361-06040i201411
T=1.65,*323
main41361-06050i201411
T=1.70,*323
main41361-06060i201411
T=1.75,*323
main41361-06070i201411
T=1.80,*323
main41361-06080i201411
T=1.85,*323
main41361-06090i201411
T=1.90,*323
main41361-33020i201109-201410
T=1.50
main41361-33020i201409
T=1.50,*322
main41361-33030i201109-201410
T=1.55
main41361-33030i201409
T=1.55,*322
main41361-33040i201409
T=1.60,*322
main41361-33040i201109-201410
T=1.60
main41361-33050i201109-201410
T=1.65
main41361-33050i201409
T=1.65,*322
main41361-33060i201109-201410
T=1.70
main41361-33060i201409
T=1.70,*322
main41361-33070i201109-201410
T=1.75
main41361-33070i201409
T=1.75,*322
main41361-33080i201109-201410
T=1.80
main41361-33080i201409
T=1.80,*322
main41361-33090i201409
T=1.85,*322
main41361-33090i201109-201410
T=1.85
main41361-33100i201109-201410
T=1.90
main41361-33100i201409
T=1.90,*322
main41361-33110i201402-201408
T=2.60
main41361-33120i201402-201408
T=2.65
main41361-33130i201402-201408
T=2.70
main41361-33140i201402-201408
T=2.75
main41361-33150i201402-201408
T=2.80
main41361-33160i201402-201408
T=2.85
main41361-33170i201402-201408
T=2.90
main41361-33180i201402-201408
T=2.95
main41361-33190i201402-201408
T=3.00
main41361-33300i201702-201710
T=0.95
sub41361-33350
main41361-33310i201702-201710
T=1.05
sub41361-33370
main41361-33320i201702-201710
T=1.15
sub41361-33390
main41361-33330i201702-201710
T=1.25
sub41361-33410
main41361-73010i201109-201710
T=1.00
sub41361-33360
main41361-73020i201109-201710
T=1.10
sub41361-33380
main41361-73030i201109-201710
T=1.20
sub41361-33400
main41361-73050i201109-201710
T=0.90
sub41361-33340
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
main90208-40003i201406-201409
main90208-45001i201402-201409
4302
90105A0228
main90105-A0228
9155180816
main91551-80816

21 parts on this diagram · 2 diagrams in section

FRONT AXLE HOUSING & DIFFERENTIAL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
