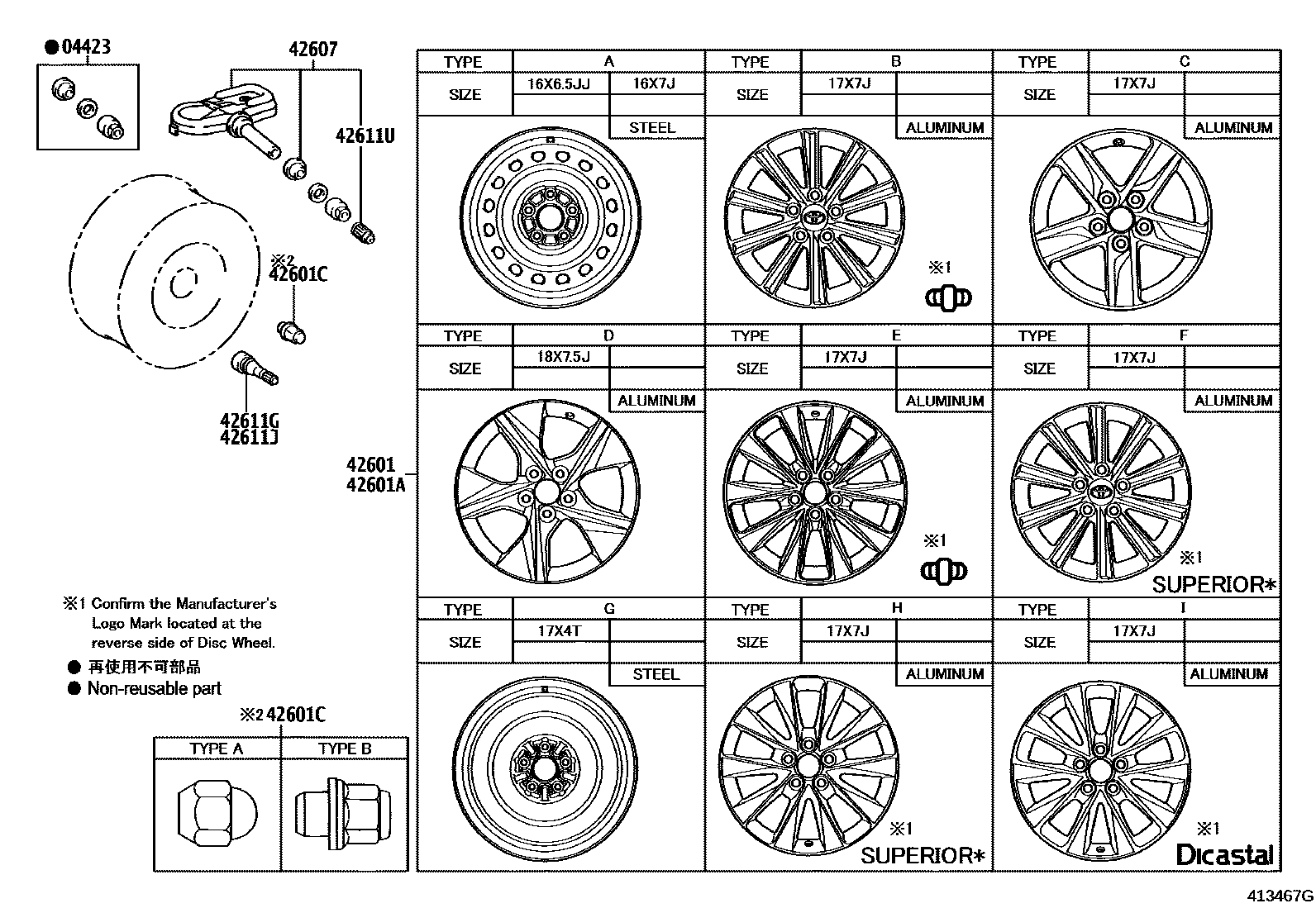

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
TIRE & DISC WHEEL-215/55R17 7J ALL SEASON TIRE
CANADA SPEC&TIRE & DISC WHEEL-215/55R17 7J ALL SEASON TIRE
42601WHEEL, DISC
16X6.5JJ,#,TYPE A:REFER ILLUST.
16X6.5JJ,#,CANADA SPEC&TIRE & DISC WHEEL-215/55R17 7J ALL SEASON TIRE,TYPE A:REFERILLUST.
16X6.5JJ,#,TIRE & DISC WHEEL-215/55R17 7J ALL SEASON TIRE,TYPE A:REFER ILLUST.
17X7J,#,TYPE B:REFER ILLUST.
17X7J,#,MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 7J SUMMER TIRE,TYPE B:REFER ILLUST.
18X7.5J,#,TYPE D:REFER ILLUST.
18X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-225/45R18 7.5J,TYPE D:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-225/45R18 7.5J,TYPE D:REFER ILLUST.
17X7J, #,TYPE C:REFER ILLUST.
17X7J, #,MEXICO SPEC,TYPE C:REFER ILLUST.
17X7J,#,TYPE F:REFER ILLUST.
17X7J,#,MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 7J SUMMER TIRE,TYPE F:REFER ILLUST.
16X7J,#,TYPE A:REFER ILLUST.
16X7J,#,CANADA SPEC&TIRE & DISC WHEEL-205/65R16 7J OS35 ST AS,TYPE A:REFER ILLUST.
16X7J,#,TIRE & DISC WHEEL-205/65R16 7J OS35 ST AS,TYPE A:REFER ILLUST.
17X7J,#,TYPE J:REFER ILLUST.
17X7J,#,MEXICO SPEC,TYPE J:REFER ILLUST.
18X7.5J,#,TYPE M:REFER ILLUST.
17X7J,#,TYPE K:REFER ILLUST.
17X7J,#,MEXICO SPEC,TYPE K:REFER ILLUST.
17X7J,#,TYPE L:REFER ILLUST.
17X7J,#,MEXICO SPEC,TYPE L:REFER ILLUST.
17X7J,#,TYPE E:REFER ILLUST.
17X7J,#,MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 7J OS40 AL1 SM&TIRE INFLATION PRESS WRNG-WITHOUT,TYPE E:REFER ILLUST.
17X7J,#,MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 7J OS40 AL1 SM&TIRE INFLATION PRESS WRNG-WITHOUT,TYPE H:REFER ILLUST.
17X7J,#,TYPE H:REFER ILLUST.
17X7J,#,MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 7J OS40 AL1 SM&TIRE INFLATION PRESS WRNG-WITHOUT,TYPE I:REFER ILLUST.
17X7J,#,TYPE I:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE G:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TIRE & DISC WHEEL-215/55R17 7J OS40 AL1 SM,TYPE B:REFER ILLUST.
sub90942-A1009
TIRE & DISC WHEEL-215/55R17 7J SUMMER TIRE,TYPE B:REFER ILLUST.
sub90942-A1009
TIRE & DISC WHEEL-215/55R17 7J ALL SEASON TIRE,TYPE B:REFER ILLUST.
sub90942-A1009
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-205/65R16 7J OS35 ST AS,TYPE A:REFER ILLUST.
(J),TYPE A:REF ILL.
TIRE & DISC WHEEL-205/65R16 7J OS35 ST AS,(J),TYPE A:REF ILL.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-205/65R16 7J OS35 ST AS,TYPE B:REFER ILLUST.
(L),TYPE A:REF ILL.
TIRE & DISC WHEEL-205/65R16 7J OS35 ST AS,(L),TYPE A:REF ILL.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TIRE & DISC WHEEL-215/55R17 7J ALL SEASON TIRE
CANADA SPEC&TIRE & DISC WHEEL-215/55R17 7J ALL SEASON TIRE
TIRE INFLATION PRESS WRNG-WITH(W/AUTO LOCATION)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
TIRE & DISC WHEEL-215/55R17 7J ALL SEASON TIRE
CANADA SPEC&TIRE & DISC WHEEL-215/55R17 7J ALL SEASON TIRE
8 parts on this diagram · 3 diagrams in section
