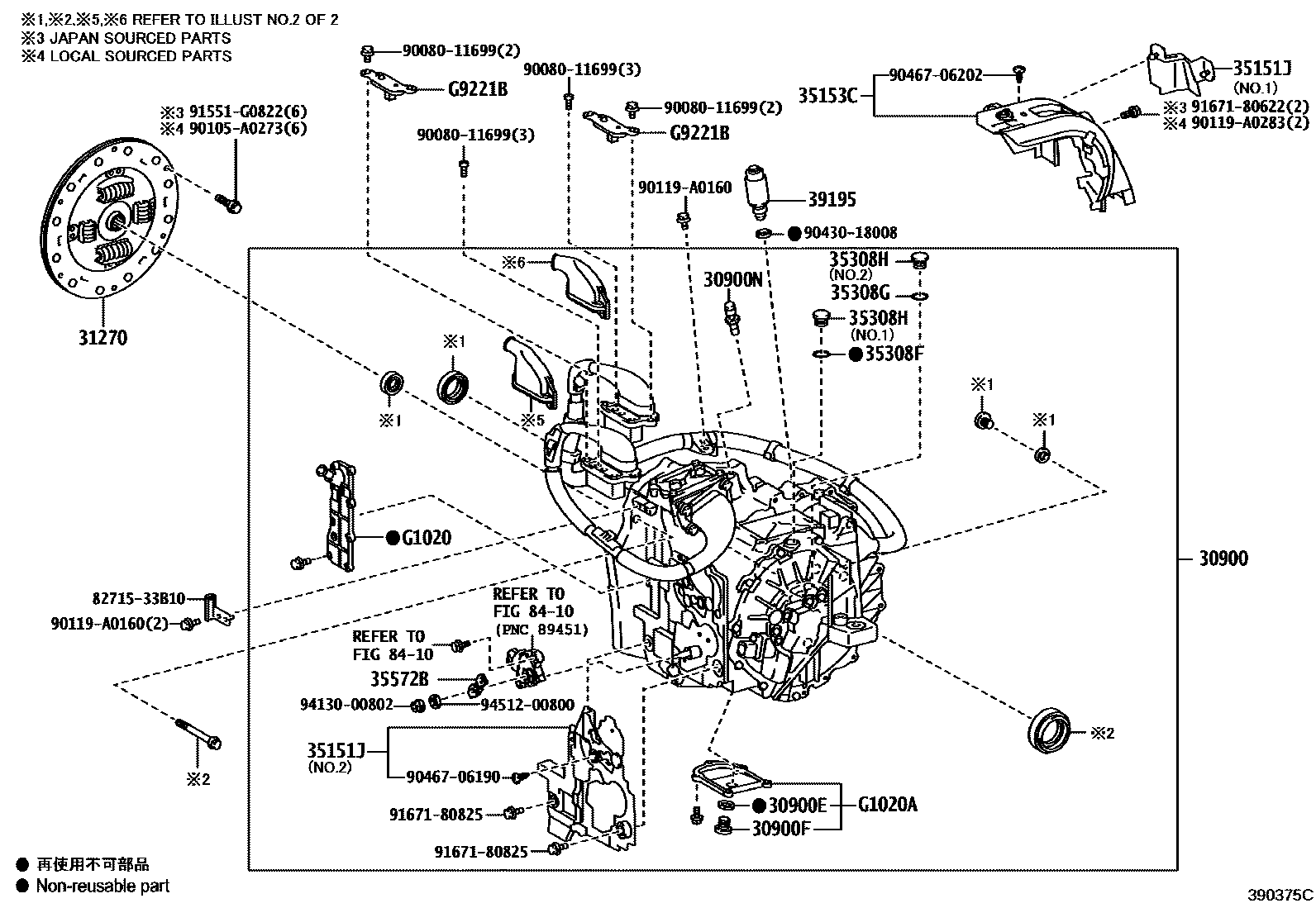

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)
30900NPLUG, BREATHER(FOR TRANSAXLE)
31270DAMPER ASSY, TRANSMISSION INPUT
35151JCOVER, AUTOMATIC TRANSMISSION CASE
NO.1
NO.2
35153CCOVER, AUTOMATIC TRANSMISSION CASE, NO.3
35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
NO.2
NO.1
35572BLEVER, TRANSMISSION, OUTER
39195DAMPER, HV TRANSAXLE MASS
8410
G1020COVER ASSY, MOTOR WATER JACKET, NO.1
G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2
G9221BCOVER, INVERTER, UPRPER
8271533B10BRACKET,WIRING HARNESS CLAMP
9008011699
90105A0273
main90105-A0273
90119A0160
main90119-A0160
90119A0283
main90119-A0283
9043018008
9046706190
9046706202
91551G0822
9167180622
9167180825
9413000802
9451200800
29 parts on this diagram · 3 diagrams in section
