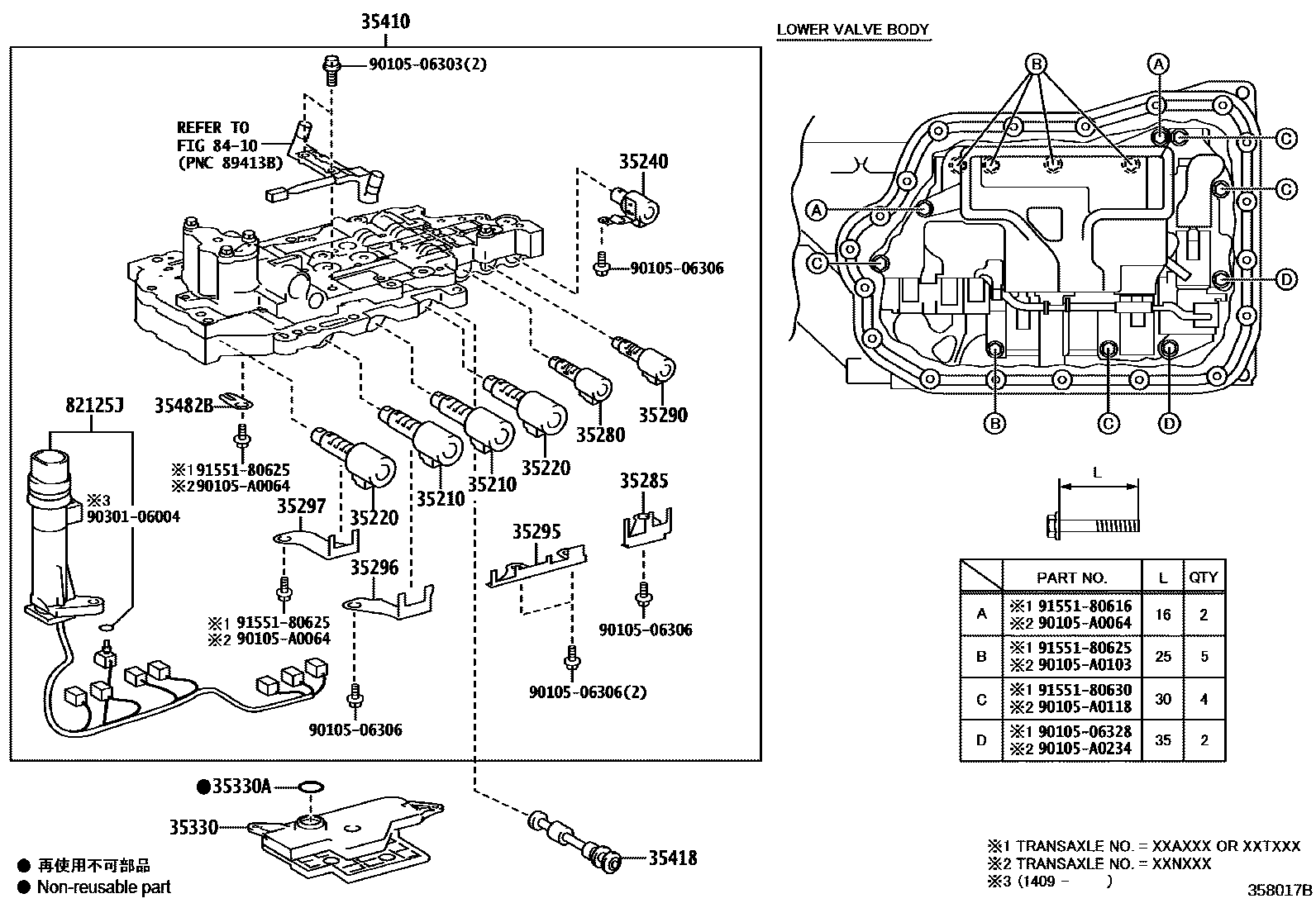

VALVE BODY & OIL STRAINER (ATM)

0001 1U760E 0002 1U660E 0003 1U760E 0004 1U660E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030iGSV50201109-201409

main35210-73010iASV50201109-201410

sub35210-33030

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33040iGSV50201109-201409

main35220-48020iASV50201410

main35220-73010iASV50201109-201410

sub35220-48020

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-73010iASV50,GSV50201109-201409

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020iASV50201109-201409

main35280-52040iGSV50201109-201409

35285PLATE, SOLENOID LOCK

main35285-33070iASV50201409

main35285-33070iASV50201109-201409

*285

main35285-73010iASV50201109-201110

*284

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iASV50,GSV50201109-201409

35295PLATE, SOLENOID LOCK, NO.2

main35295-33050iASV50201109-201409

*285

main35295-33050iASV50201409

main35295-73010iASV50201109-201110

*284

35296PLATE, SOLENOID LOCK, NO.3

main35296-33050iASV50201409

main35296-33050iASV50201109-201409

*285

main35296-73010iASV50201109-201110

*284

35297PLATE, SOLENOID LOCK, NO.4

main35297-33020iASV50201109-201409

*285

main35297-33020iASV50201409

main35297-73010iASV50201109-201110

*284

35330STRAINER ASSY, VALVE BODY OIL

main35330-0R010iASV50201210-201409

*385

main35330-33050iGSV50201109-201308

sub35330-48020

main35330-48020iGSV50201308-201409

main35330-73010iASV50201409

*285

main35330-73010iASV50201109-201409

35330ARING, O (FOR OIL STRAINER)

main90301-27010iASV50201111-201409

*385

main90301-27015iASV50201109-201409

*285

main90301-27015iASV50201109-201110

*284

main90301-27015iGSV50201109-201409

*322

main90301-A0026iGSV50201109-201409

*323

35410BODY ASSY, TRANSMISSION VALVE

main35410-06020iASV50201111-201409

*385

sub35410-33260

main35410-08020iGSV50201109-201205

*323

sub35410-33171

main35410-08021iGSV50201205-201409

*323

sub35410-33240

main35410-33240iGSV50201109-201409

*322

main35410-33250iASV50201109-201110

*284

sub35410-33260

main35410-33260iASV50201109-201409

*285

35418VALVE, MANUAL

main35418-73010iASV50,GSV50201109-201409

35482BCLAMP, TEMPERATURE SENSOR

main35482-73010iASV50201109-201409

82125JWIRE, TRANSMISSION

main82125-33090iGSV50201109-201203

*323

sub82125-33091

main82125-33150iGSV50201203-201706

sub82125-33151

main82125-33150iGSV50201109-201203

*322

sub82125-33151

main82125-73010iASV50201109-201706

sub82125-73011

8410

9010506303

main90105-06303

9010506306

main90105-06306

9010506328

main90105-06328

90105A0064

main90105-A0064

90105A0103

main90105-A0103

90105A0118

main90105-A0118

90105A0234

main90105-A0234

9030106004

main90301-06004

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

27 parts on this diagram · 4 diagrams in section
