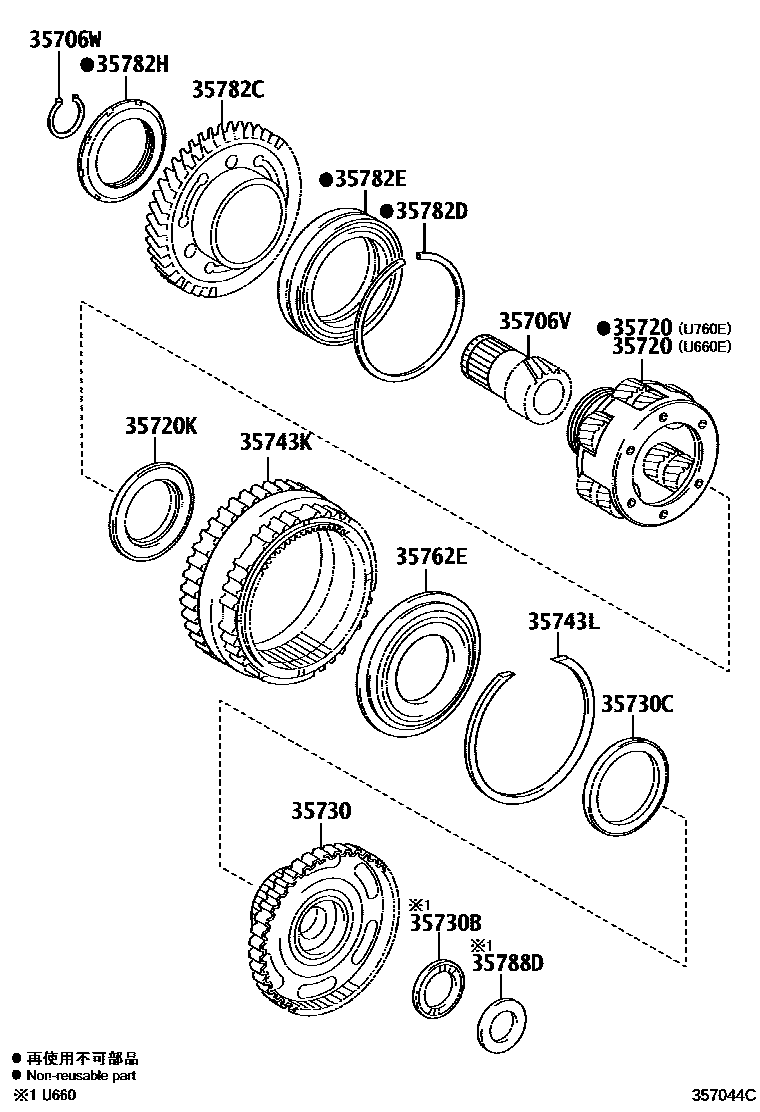

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-33020iGSV50¥6,800201109-201409

main35706-33020iGSV50¥6,800201411

(J)

main35706-73010iASV50¥9,300201109-201409

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iASV50,GSV50¥60201109-201409

35720GEAR ASSY, FRONT PLANETARY

main35720-33050iASV50201109-201404

*285

sub35720-33070¥39,200

main35720-33050iASV50201111-201404

*385

sub35720-33070¥39,200

main35720-33062iGSV50¥49,000201109-201409

main35720-33070iASV50¥39,200201404-201409

*285,*385

main35720-33070iASV50¥39,200201409

main35720-73010iASV50201109-201110

*284

sub35720-73020

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62002iGSV50¥2,220201109-201310

*322

sub90374-62007¥2,220

main90374-62004iASV50201109-201110

*284

sub90374-62011¥1,200

main90374-62004iASV50201109-201408

*285

sub90374-62011¥1,200

main90374-62007iGSV50¥2,220201310-201409

*322

main90374-62011iASV50¥1,200201408-201409

*285

main90374-A0028iGSV50201109-201409

*323

main90374-A0035iASV50201111-201409

*385

35730GEAR ASSY, REAR PLANETARY SUN

main35730-06010iASV50201111-201409

*385

sub35730-33030¥9,300

main35730-33021iGSV50¥9,800201109-201409

main35730-33030iASV50¥9,300201109-201409

*285

main35730-73010iASV50¥11,300201109-201110

*284

sub35730-33030¥9,300

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-28015iGSV50¥1,100201109-201409

*322

main90374-A0030iGSV50201109-201211

*323

sub90374-A0042

main90374-A0042iGSV50201211-201409

*323

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iGSV50¥1,260201109-201409

*285

main90374-61001iASV50¥1,260201109-201110

*284

main90374-61001iGSV50¥1,260201109-201409

*322

main90374-A0029iGSV50201109-201409

*323

main90374-A0029iASV50201111-201409

*385

35743KGEAR, PLANETARY RING

main35743-33030iGSV50¥6,200201109-201409

main35743-33040iASV50¥33,300201109-201409

*285

main35743-33040iASV50¥33,300201111-201409

*385

main35743-33040iASV50¥33,300201409

main35743-73010iASV50¥40,000201109-201110

*284

sub35743-33040¥33,300

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iGSV50¥140201109-201409

*322

main90520-99108iGSV50¥140201109-201409

*285

main90520-99108iASV50¥140201109-201110

*284

main90520-A0016iGSV50201111-201409

*385

main90520-A0016iGSV50201109-201409

*323

35762EFLANGE, PLANETARY RING GEAR

main35762-33020iGSV50¥980201109-201409

*322

main35762-73010iASV50¥1,020201109-201409

*323

35782CGEAR, COUNTER DRIVE

main35782-33031iGSV50¥18,300201109-201409

main35782-33040iASV50¥14,200201109-201409

*285

main35782-33040iASV50¥14,200201111-201409

*385

main35782-33040iASV50¥14,200201409

main35782-73010iASV50201109-201110

*284

sub35782-33040¥14,200

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99110iASV50¥220201109-201402

*322

main90520-99110iASV50¥220201109-201110

*284

main90520-99154iASV50,GSV50¥140201402-201409

main90520-A0009iASV50201111-201408

*385

main90520-A0009iGSV50201109-201408

*323

main90520-A0042iASV50201408-201409

*385

main90520-A0042iGSV50201408-201409

*323

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72001iGSV50¥6,800201109-201402

*322

sub90369-72002¥6,800

main90369-72001iASV50¥6,800201109-201110

*284

sub90369-72002¥6,800

main90369-72001iGSV50¥6,800201109-201402

*285

sub90369-72002¥6,800

main90369-72002iASV50¥6,800201402-201409

*322

main90369-72002iGSV50¥6,800201402-201409

*285

main90369-A0005iGSV50201109-201407

*323

sub90369-A0006

main90369-A0005iASV50201111-201407

*385

sub90369-A0006

main90369-A0006iGSV50201407-201409

*323

main90369-A0006iGSV50201407-201409

*385

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iASV50,GSV50¥330201109-201409

main90179-60001iASV50,GSV50¥330201409

(J)

main90179-A0017iGSV50201411

(L)

35788DRACE, THRUST BEARING, NO.3

main35788-07010iGSV50201109-201409

*323

main35788-33020iGSV50¥1,240201109-201409

*322

15 parts on this diagram · 1 diagram in section
