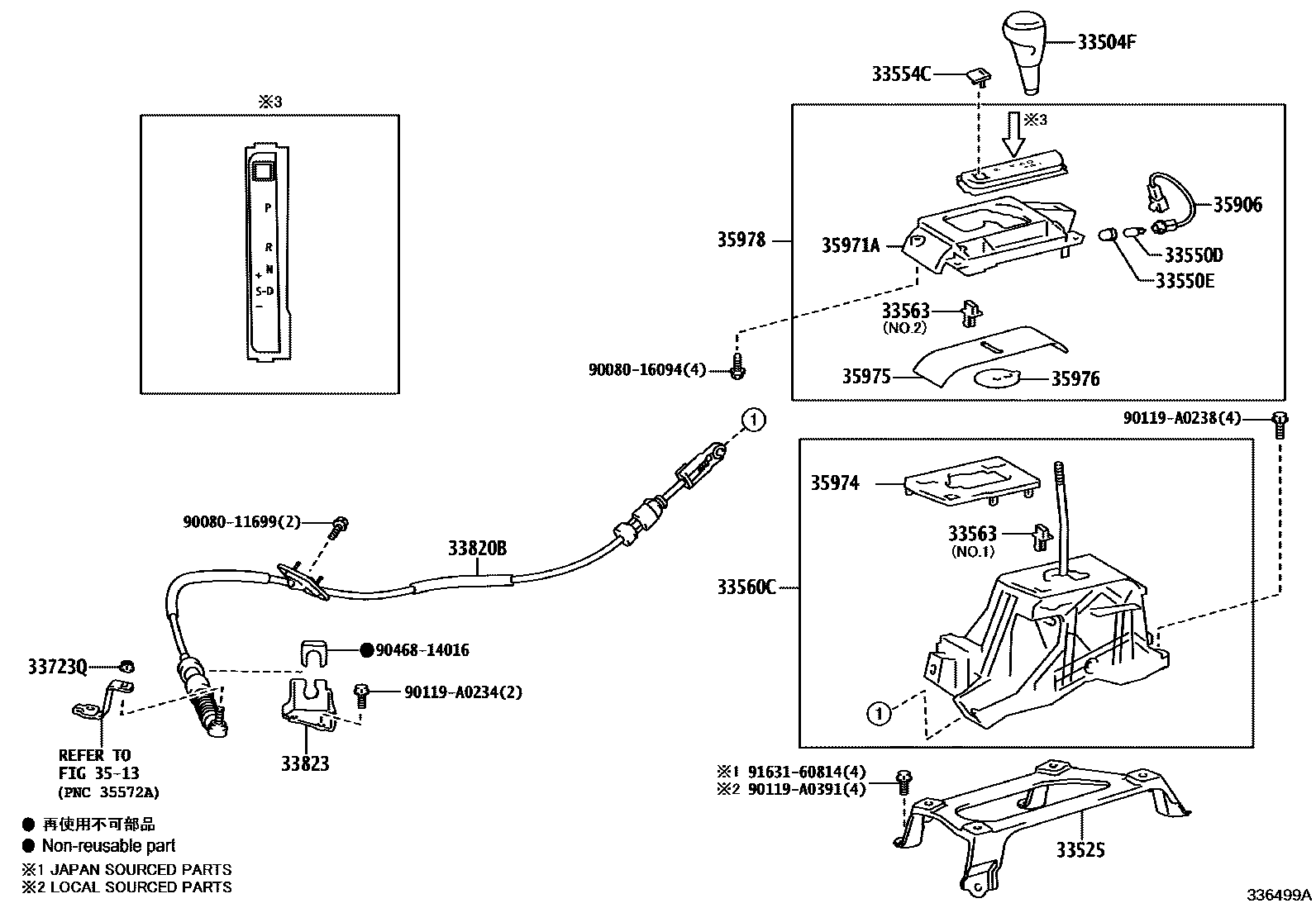

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
MD.SILVER,TRIM0#,1#
BLACK,TRIM1#,2#
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM0#,1#
sub33504-06201
*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM0#,1#
MEDIUM REDDISH BROWN WITH,TRIM0#,1#
BLACK,TRIM0#,1#
33525SUPPORT, SHIFT LEVER
33550DBULB, POSITION INDICATOR LAMP
12V 2W
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560CLEVER ASSY, SHIFT, LOWER
STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START
STARTING SYSTEM-PUSH BUTTON
sub33560-06311
STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START
STARTING SYSTEM-PUSH BUTTON
WIRELESS DOOR LOCK-W(SMART ENTRY)
sub33560-06371
33563BUTTON, SHIFT LOCK RELEASE
NO.1
NO.2
33723QNUT (FOR CONNECTING ROD SWIVEL)
33820BCABLE ASSY, TRANSMISSION CONTROL
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
3513
35906WIRE SUB-ASSY, INDICATOR LAMP
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35978INDICATOR, SHIFT POSITION
sub35978-06011
sub35978-06021
RICE,TRIM0#,1#,2#
RICE,TRIM1#
RED,TRIM2#
RED,TRIM20
SERENITY LIGHT,TRIM21
RICE,TRIM0#,1#,2#
RICE,TRIM1#
RED,TRIM2#
9008011699
main90080-11699
9008016094
main90080-16094
90119A0234
main90119-A0234
90119A0238
main90119-A0238
90119A0391
main90119-A0391
9046814016
main90468-14016
9163160814
main91631-60814
24 parts on this diagram · 4 diagrams in section
