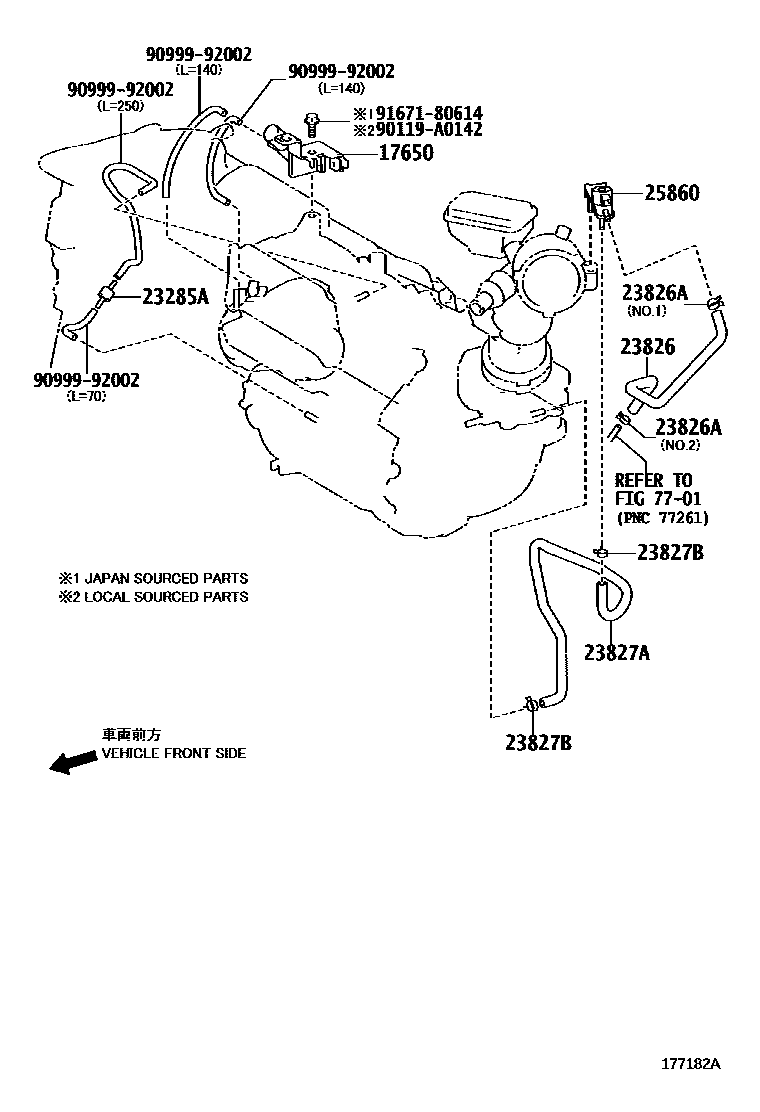

VACUUM PIPING
17650VALVE ASSY, VACUUM SWITCHING
*212 OR *364
EXH.EMISSION CONTROL-USA BIN5 FFV
*107
23285AVALVE, CHECK, NO.1
EXH.EMISSION CONTROL-USA BIN5 FFV
*107,*212 OR *364
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
NO.1
NO.2
NO.2
NO.2
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.1
NO.1
NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7701
90119A0142
main90119-A0142
9099992002
main90999-92002
9167180614
main91671-80614
11 parts on this diagram · 3 diagrams in section
