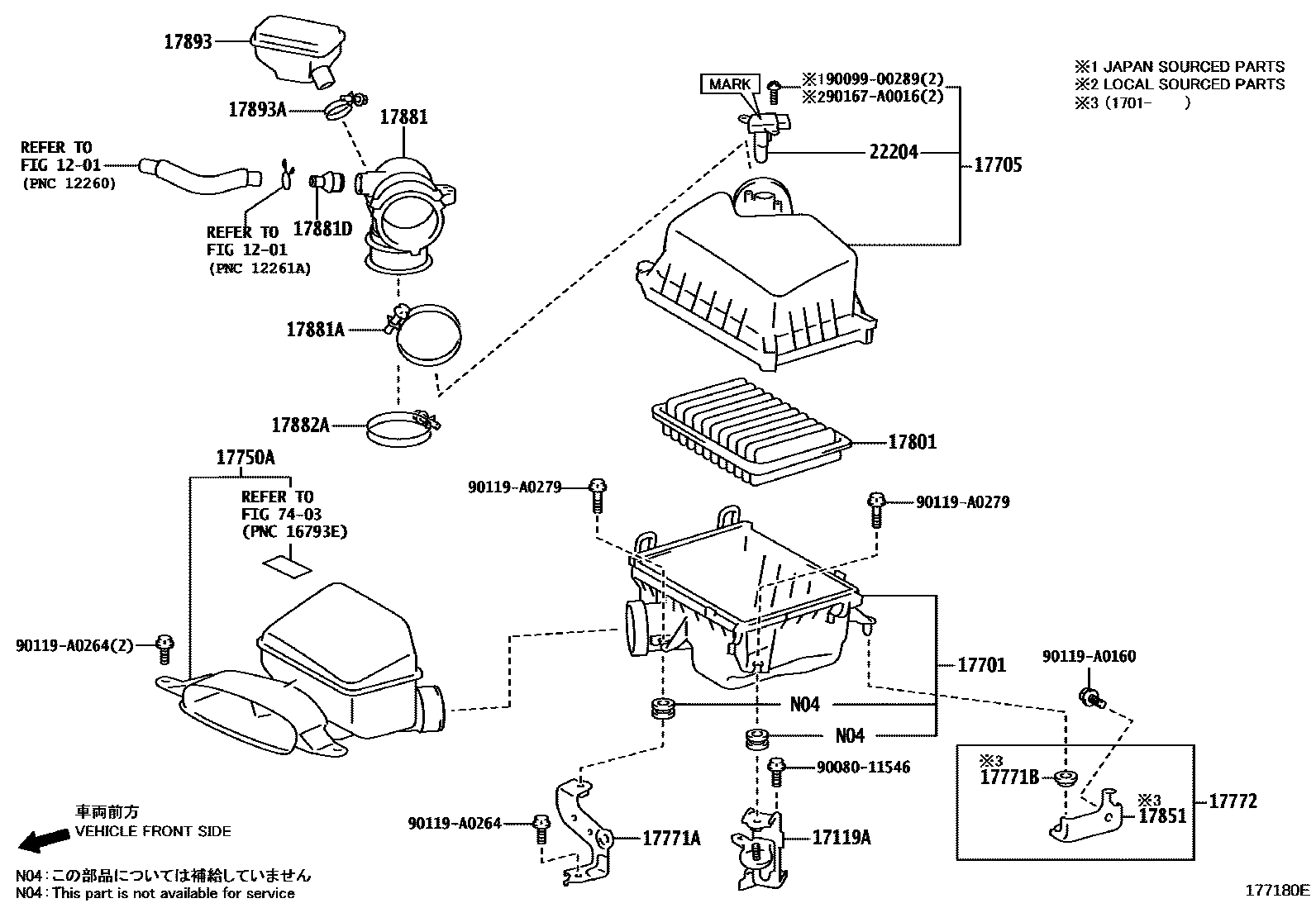

AIR CLEANER
1201
17119ABRACKET, AIR CLEANER
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17771ABRACKET, AIR CLEANER
(L)
(L)
(J)
(J)
17771BGROMMET(FOR AIR CLEANER BRACKET)
17772BRACKET, INTAKE AIR CONNECTOR, NO.2
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
MARK = MADE IN USA
(L)
(J)
MARK = MADE IN JAPAN
(J)
17851BRACKET, AIR CLEANER SUPPORT
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17881DTUBE, UNION(FOG AIR CLEANER HOSE)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
17893ACLAMP, HOSE
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0V020
MARK 22204-28010
7403
9008011546
main90080-11546
9009900289
main90099-00289
90119A0160
main90119-A0160
90119A0264
main90119-A0264
90119A0279
main90119-A0279
90167A0016
main90167-A0016
24 parts on this diagram · 4 diagrams in section
