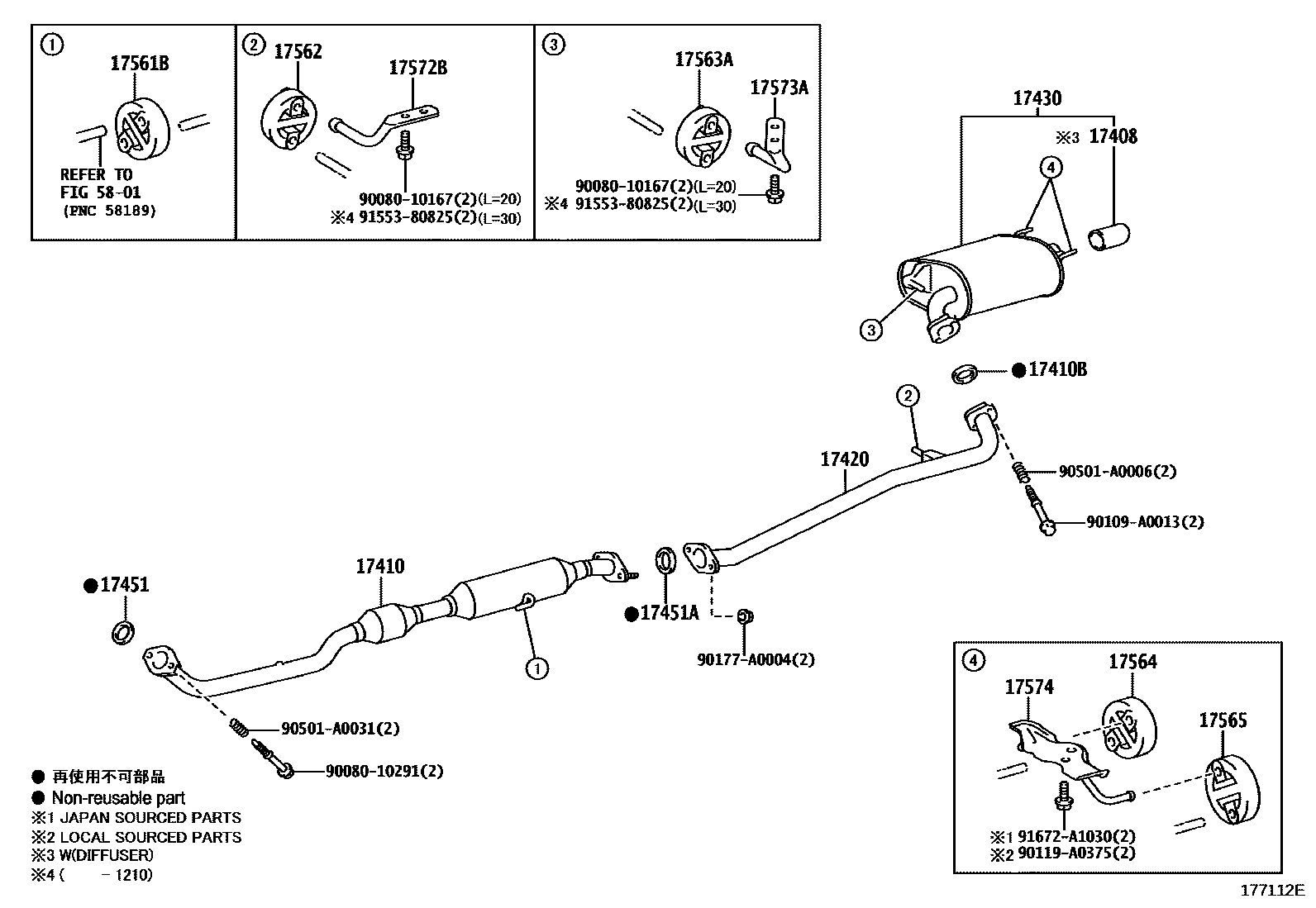

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
EXHAUST TAIL PIPE & DIFFUSER-W(DIFFUSER)
KOREA SPEC
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
EXHAUST EMISSION CONTROL-USA PZEV
17410BGASKET, EXHAUST PIPE
(L)
(J)
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
EXHAUST TAIL PIPE & DIFFUSER-W(DIFFUSER)
KOREA SPEC
17451AGASKET, EXHAUST PIPE, NO.2
(J)
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17564SUPPORT,EXHAUST PIPE, NO.4
17565SUPPORT, EXHAUST PIPE, NO.5
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
5801
9008010167
main90080-10167
9008010291
main90080-10291
90109A0013
main90109-A0013
90119A0375
main90119-A0375
90177A0004
main90177-A0004
90501A0006
main90501-A0006
90501A0031
main90501-A0031
9155380825
main91553-80825
91672A1030
main91672-A1030
26 parts on this diagram · 2 diagrams in section
