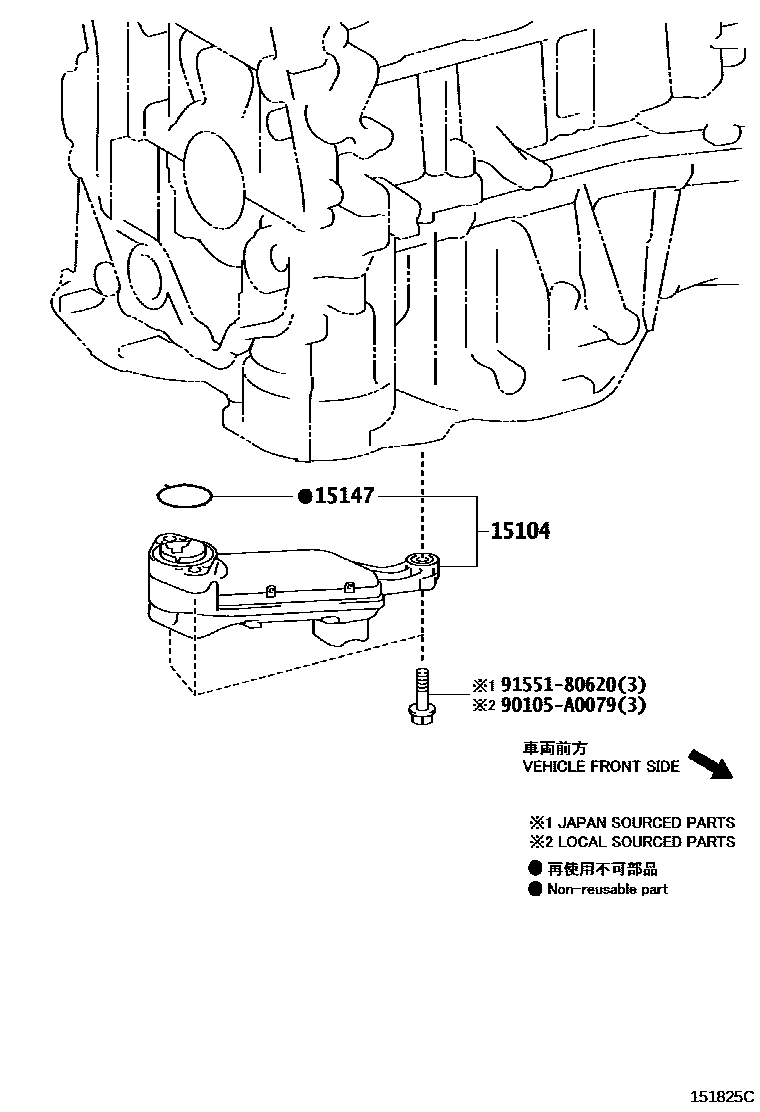

ENGINE OIL PUMP

0001 1 0002 1

15104STRAINER SUB-ASSY, OIL

main15104-0V050i2AR#..ASV50,AVV50201505

(L),*212 OR *364

main15104-31120i2GRFE..GSV50¥5,100201109-201510

main15104-31190i2GRFE..GSV50¥3,570201510

main15104-36020i2ARFE..ASV50;2ARFXE..AVV50..SE¥1,980201109-201505

*212 OR *364

main15104-36020i2ARFXE..AVV50¥1,980201109-201409

*107

main15104-36020i2AR#..ASV50,AVV50¥1,980201505

(J),*212 OR *364

15147GASKET, OIL STRAINER

main15147-0P020i2GRFE..GSV50201109-201409

main15147-36010i2AR#..ASV50,AVV50¥340201109-201409

*212 OR *364

main15147-36010i2ARFE..ASV50;2ARFXE..AVV50..SE¥340201109-201409

*107

90105A0079

main90105-A0079

9155180620

main91551-80620¥60

4 parts on this diagram · 2 diagrams in section
