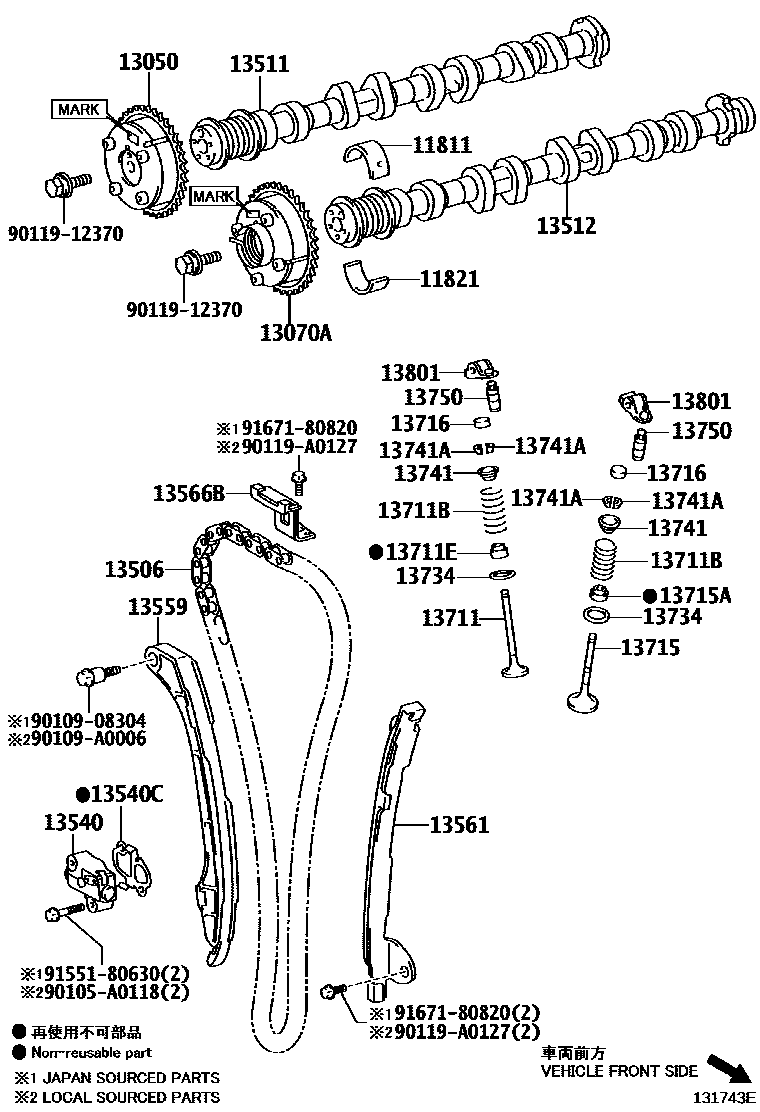

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
*212 OR *364
(L),*212 OR *364
*364
(L)
(J)
*107
(J),*212 OR *364
11821BEARING, CAMSHAFT, NO.2
*212 OR *364
(L)
*364
(L),*212 OR *364
(J)
(J),*212 OR *364
*107
13050GEAR ASSY, CAMSHAFT TIMING
MARK 13050-0V011
MARK 13050-0V040
*107
MARK 13050-36011
*107,*212 OR *364
*364,*107
MARK 13050-36030
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
MARK 13070-0V013
MARK 13070-0V040
MARK 13070-36011
MARK 13070-36030
13506CHAIN SUB-ASSY
*212 OR *364
*107
*107
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
*212 OR *364
*107
13559SLIPPER, CHAIN TENSIONER
*212 OR *364
*107
*107
13561DAMPER, CHAIN VIBRATION, NO.1
*212 OR *364
*107
*107
13566BGUIDE, TIMING CHAIN
*212 OR *364
*107
13711VALVE, INTAKE
(L)
(J)
(J),*212 OR *364
*107
13711BSPRING, COMPRESSION(FOR INNER)
*107PNC 13741=TYPE A
*107
(J),*212 OR *364
*107PNC 13741=TYPE B
(J),PNC 13801=TYPE A
(L),PNC 13801=TYPE A
(L),*212 OR *364
(L),PNC 13801=TYPE B
13711ESEAL, INTAKE VALVE STEM OIL
*212 OR *364
*107
13715VALVE, EXHAUST
(L)
(L),*212 OR *364
*212 OR *364
(J)
(J),*212 OR *364
*107
13715ASEAL, EXHAUST VALVE STEM OIL
(L),*212 OR *364
*212 OR *364
*107
13716CAP, VALVE STEM
(L)
*107
*212 OR *364
(J)
13734SEAT, VALVE SPRING
*212 OR *364
*107
13741RETAINER, VALVE SPRING
PNC 13801=TYPE A
PNC 13801=TYPE B
(L),*212 OR *364
(J),*212 OR *364
*107
*107T/P A:REF.ILLUST
*107T/P B:REF.ILLUST
13741ALOCK, VALVE SPRING RETAINER
*107
(J),*212 OR *364
(L),*212 OR *364
13750ADJUSTER ASSY, VALVE LASH
*107
*107PNC 13801=TYPE A
*107PNC 13801=TYPE B
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
TYPE A:REFER ILLUST.
*212 OR *364
TYPE B:REFER ILLUST.
*107
*107T/P A:REF.ILLUST
*107T/P B:REF.ILLUST
90105A0118
main90105-A0118
9010908304
main90109-08304
90109A0006
main90109-A0006
9011912370
main90119-12370
90119A0127
main90119-A0127
9155180630
main91551-80630
9167180820
main91671-80820
30 parts on this diagram · 4 diagrams in section
