VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
EXH.EMISSION CONTROL-USA BIN5 FFV
*212 OR *364
*107
*364,*107
MEXICO SPEC
EXH.EMISSION CONTROL-USA BIN5 FFV
12205CASE SUB-ASSY, VENTILATION
EXH.EMISSION CONTROL-USA BIN5 FFV
*212 OR *364
*364
*107
12205ARING, O(FOR VENTILATION CASE)
EXH.EMISSION CONTROL-USA BIN5 FFV
*107
*212 OR *364
*364,*107
12215SEPARATOR, CASE
*212 OR *364
*364
EXH.EMISSION CONTROL-USA BIN5 FFV
*107
12260HOSE ASSY, VENTILATION
12261HOSE, VENTILATION
KOREA SPEC
USA POSSESSIONS SPEC
MEXICO SPEC
HAWAII SPEC
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
MEXICO SPEC
HAWAII SPEC
USA POSSESSIONS SPEC
KOREA SPEC
12262HOSE, VENTILATION, NO.2
EXH.EMISSION CONTROL-USA BIN5 FFV
*107,*212 OR *364
*364,*107
*107,*212 OR *364
12262ACLIP(FOR VENTILATION HOSE NO.2)
EXH.EMISSION CONTROL-USA BIN5 FFV
*107
*212 OR *364
*364,*107
90105A0064
main90105-A0064
90105A0127
main90105-A0127
9012608052
main90126-08052
90126A0019
main90126-A0019
90178A0024
main90178-A0024
9155180616
main91551-80616
9155180825
main91551-80825
9415180800
main94151-80800

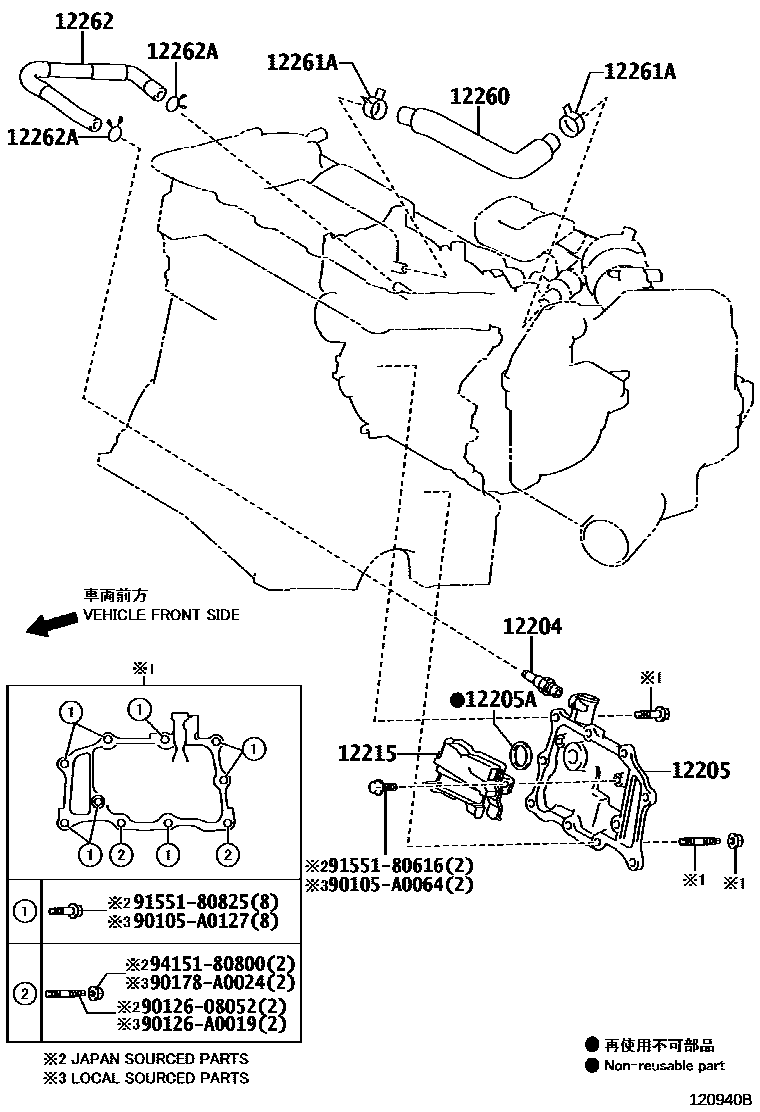

17 parts on this diagram · 3 diagrams in section
