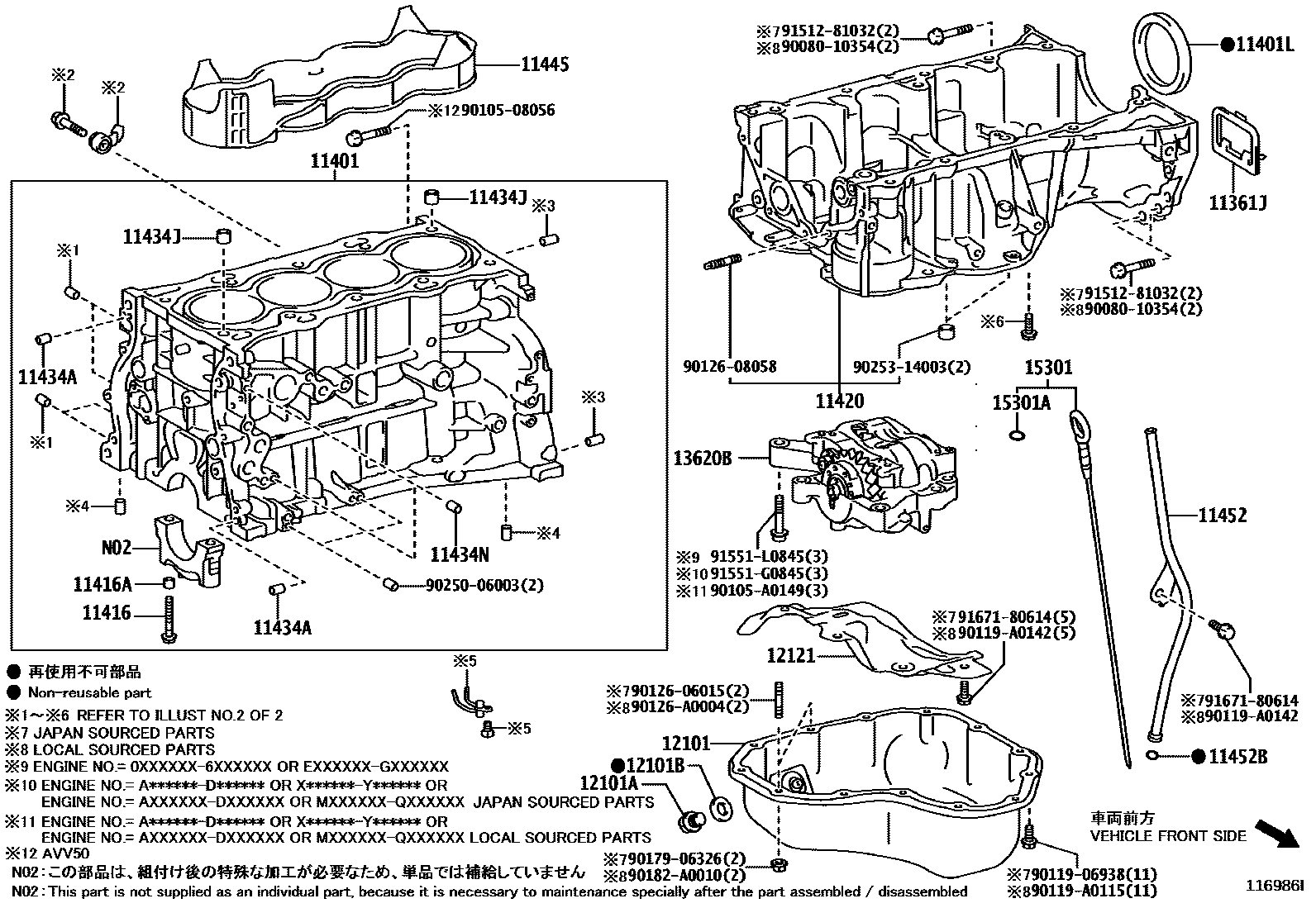

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(L)
(J)
11401BLOCK SUB-ASSY, CYLINDER
*107
(J),*212 OR *364
*364
*364,*107
(J)
11401LSEAL, ENGINE REAR OIL
*107
*212 OR *364
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J)
*364
*107
(L)
*212 OR *364
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
*212 OR *364
*107
*364
11420CRANKCASE ASSY, STIFFENING
*212 OR *364
(L),*212 OR *364
*107
(J),*212 OR *364
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=14,OD=6,*107
L=14,OD=6,*212 OR *364
L=14,OD=6,*364
L=14,OD=6,*364,*107
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
*212 OR *364
*107
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
*212 OR *364
*107
*364
*364,*107
11445SPACER, CYLINDER BLOCK WATER JACKET
(L),*212 OR *364
*212 OR *364
*107
(J),*212 OR *364
11452GUIDE, OIL LEVEL GAGE
*212 OR *364
*107
*107
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
*212 OR *364
*107
12101PAN SUB-ASSY, OIL
*212 OR *364
*107
12101APLUG(FOR OIL PAN DRAIN)
*107
*212 OR *364
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*107
*212 OR *364
(J)
(L)
12121PLATE, OIL PAN BAFFLE, NO.1
*212 OR *364
*107
13620BBALANCER ASSY, ENGINE
*212 OR *364
*107
(J),*212 OR *364
*107
15301GAGE SUB-ASSY, OIL LEVEL
*212 OR *364
(L),*212 OR *364
15301ARING, O(FOR OIL LEVEL GAGE)
9008010354
main90080-10354
9010508056
main90105-08056
90105A0149
main90105-A0149
9011906938
main90119-06938
90119A0115
main90119-A0115
90119A0142
main90119-A0142
9012606015
main90126-06015
9012608058
main90126-08058
90126A0004
main90126-A0004
9017906326
main90179-06326
90182A0010
main90182-A0010
9025006003
main90250-06003
9025314003
main90253-14003
9151281032
main91512-81032
91551G0845
main91551-G0845
91551L0845
main91551-L0845
9167180614
main91671-80614
36 parts on this diagram · 3 diagrams in section
