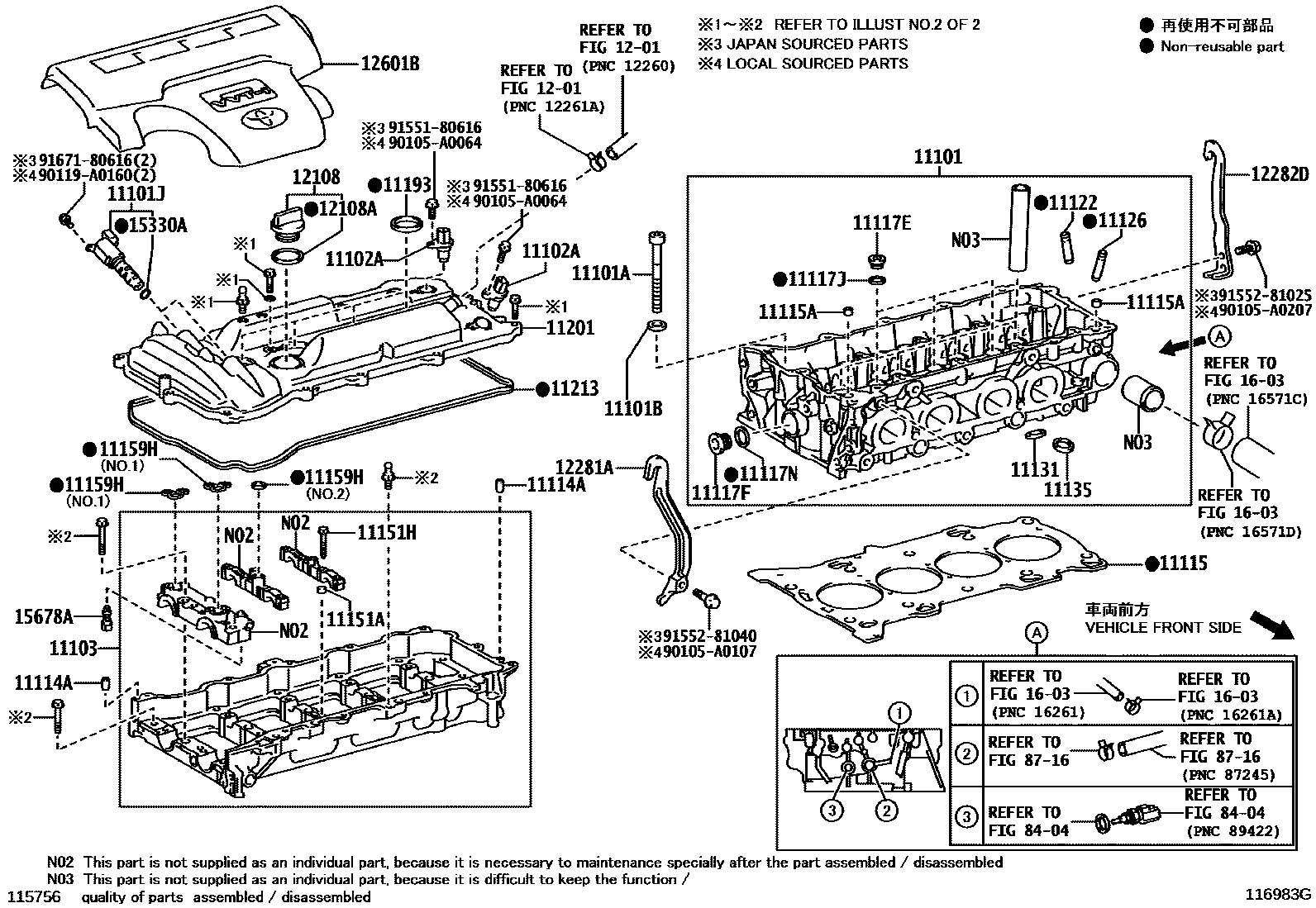

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(J)
(L)
*364,*107
*107
(J),*212 OR *364
*364
(J)
11101ABOLT(FOR CYLINDER HEAD SET)
*107
(J)
*212 OR *364
(L)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*107
*212 OR *364
(J)
(L)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
*212 OR *364
*364
*107
11102HEAD, CYLINDER, LH
(J)
(L)
11102ASENSOR, CAMSHAFT POSITION
*364
*107,*212 OR *364
*107
*364,*107
11103HOUSING SUB-ASSY, CAMSHAFT
(J)
(J),*212 OR *364
*107
*364,*107
*107
*364
11114APIN, STRAIGHT
L=14,OD=6,*212 OR *364
L=14,OD=6,*107
L=14,OD=6,*364
L=14,OD=6,*364,*107
L=14,OD=6
11115APIN, RING
*107
*212 OR *364
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*107
*212 OR *364
*364
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
*107
*212 OR *364
*364
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
*107
*212 OR *364
*364
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
*107
*212 OR *364
*364
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD,*212 OR *364
O/S 0.05,*107
O/S 0.05
O/S 0.05,*364
O/S 0.05,*364,*107
O/S 0.05
O/S 0.05,*212 OR *364
11126BUSH, EXHAUST VALVE GUIDE
STD
STD,*212 OR *364
O/S 0.05,*212 OR *364
O/S 0.05
11131SEAT, INTAKE VALVE
STD,(L)
STD
STD,*212 OR *364
STD,*107
STD,*364
O/S 0.03,(L)
O/S 0.03
O/S 0.03,*212 OR *364
O/S 0.03,*364,*107
O/S 0.03,*107
O/S 0.03,*364
11135SEAT, EXHAUST VALVE
STD,(L)
STD,*212 OR *364
STD
STD,(J)
STD,*107
STD,*364
O/S 0.03,(L)
O/S 0.03,*212 OR *364
O/S 0.03
O/S 0.03,(J)
O/S 0.03,*364,*107
O/S 0.03,*107
O/S 0.03,*364
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8,*212 OR *364
L=12.5,OD=8,*107
L=12.5,OD=8,*364
L=12.5,OD=8,*364,*107
L=12.5,OD=8
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
*364,*107
*107
*364
*212 OR *364
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1
*364,NO.1
*212 OR *364,NO.1
*107,NO.1
*107,NO.2
*364,NO.2
*212 OR *364,NO.2
NO.2
11193GASKET, SPARK PLUG TUBE
*364
*212 OR *364
*107
(J)
11201COVER SUB-ASSY, CYLINDER HEAD
*212 OR *364
(J)
*107
*107
*364,*107
*364
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
*364,*107
*212 OR *364
*107
*364
1201
12108CAP SUB-ASSY, OIL FILLER
*107
12108AGASKET(FOR OIL FILLER CAP)
*107
12281AHANGER, ENGINE, NO.1
*107
*212 OR *364
12282DHANGER, ENGINE, NO.2
*212 OR *364
*107
12601BCOVER SUB-ASSY, ENGINE, NO.1
(L)
(L)
(J)
(J)
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
*107
15678AFILTER, OIL CONTROL VALVE
(L)
(L),*212 OR *364
(L),*364
(J)
*107
(J),*212 OR *364
(J),*364
(J),*364,*107
1603
8404
8716
90105A0064
main90105-A0064
90105A0107
main90105-A0107
90105A0207
main90105-A0207
90119A0160
main90119-A0160
9155180616
9155281025
9155281040
9167180616
43 parts on this diagram · 5 diagrams in section
