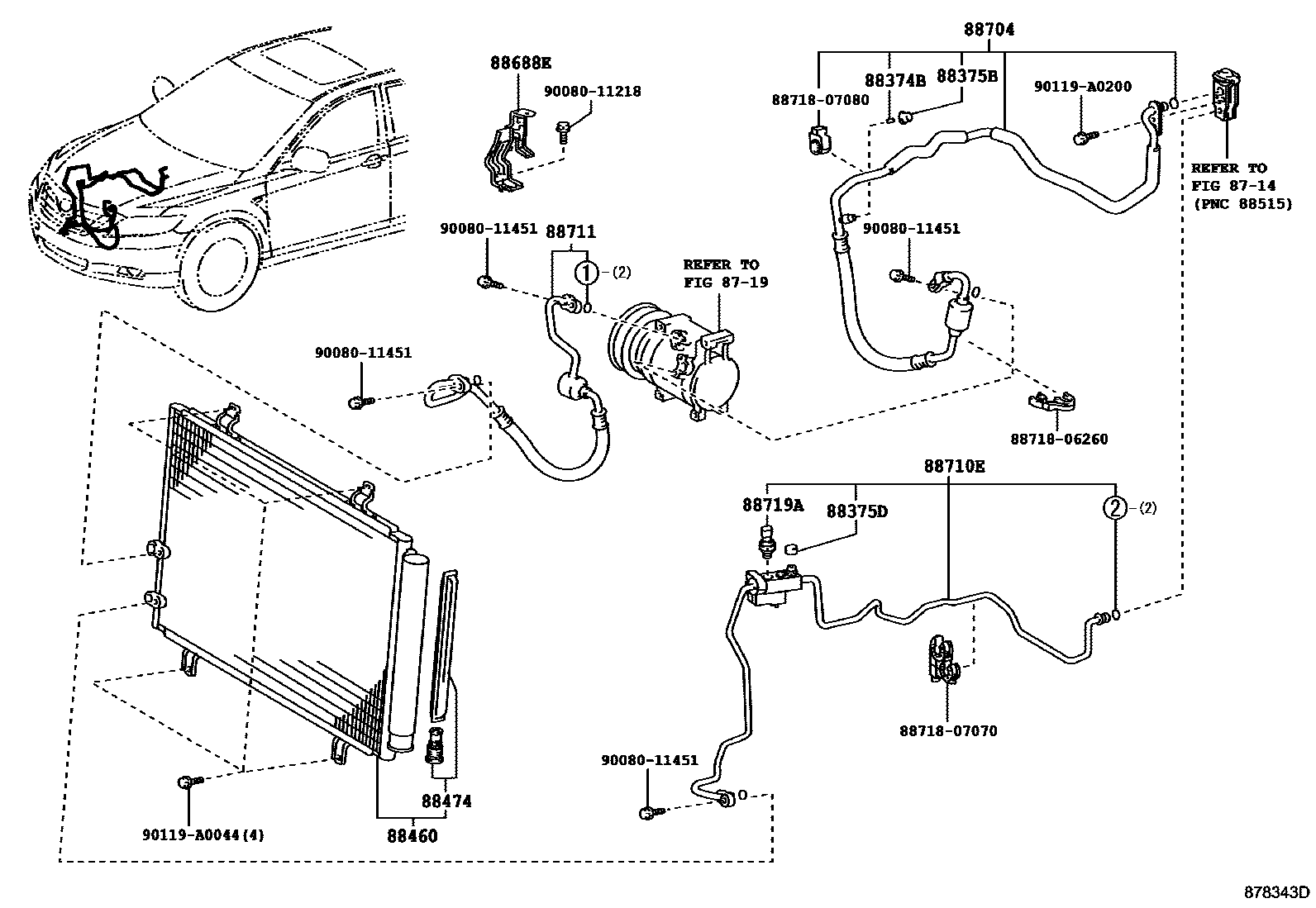

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iGSV40..NAP200602-201109

88375BCAP, SERVICE VALVE, NO.1

main88375-02070iGSV40..NAP200602-201109

(L)

sub88375-0E030

main88375-30290iACV40..NAP200602-201109

(J)

88375DCAP, SERVICE VALVE, NO.2

main88375-02060iACV40,GSV40..NAP200602-201109

sub88375-0E020

88460CONDENSER ASSY, COOLER

main88460-06210iACV40,GSV40..NAP200602-201109

88474DRYER, COOLER

main88474-17010iACV40,GSV40..NAP200602-201109

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-07060iACV40,GSV40..NAP200602-201109

88704HOSE SUB-ASSY, SUCTION

main88704-06290iACV40..NAP200602-200903

main88704-06410iASV40..NAP200903-201109

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-06200iACV40,GSV40..NAP200602-201109

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06230iGSV40..NAP200602-201109

main88711-06240iACV40..NAP200602-200903

main88711-06360iASV40..NAP200903-201109

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iACV40,GSV40..NAP200602-201109

8871806260PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06260

8871807070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-07070

8871807080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-07080

9008011218

main90080-11218

9008011451

main90080-11451

90119A0044

main90119-A0044

90119A0200

main90119-A0200

19 parts on this diagram · 4 diagrams in section
