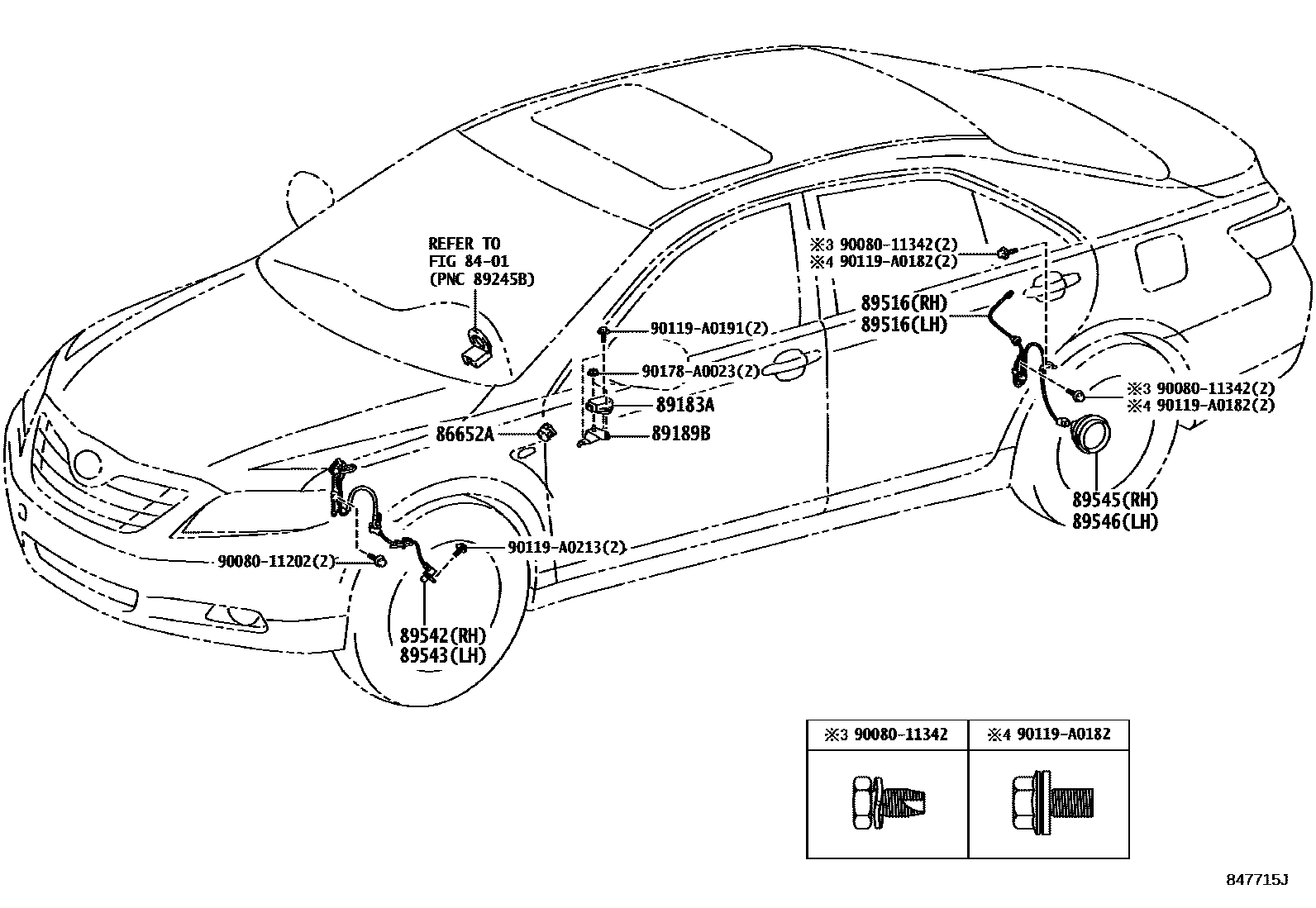

ABS & VSC

0001 1 0002 1

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-04010iASV40,GSV40..NAP200903-201002

89183ASENSOR, YAWRATE

main89183-06010iASV40,GSV40..NAP200903-201109

89189BBRACKET, YAWRATE SENSOR

main89189-06010iASV40,GSV40..NAP200903-201109

89516WIRE, SKID CONTROL SENSOR

main89516-06030iACV40,GSV40..NAP200602-200903

RH

main89516-06040iACV40,GSV40..NAP200602-200903

LH

main89516-06090iASV40,GSV40..NAP200903-201109

RH

main89516-06100iASV40,GSV40..NAP200903-201109

LH

89542SENSOR, SPEED, FRONT RH

main89542-07030iACV40,GSV40..NAP200602-201109

89543SENSOR, SPEED, FRONT LH

main89543-07030iACV40,GSV40..NAP200602-201109

89545SENSOR, SPEED, REAR RH

main89544-06010iACV40,GSV40..NAP200602-200903

KOYO,NSK

sub89544-48010

89546SENSOR, SPEED, REAR LH

main89544-06010iACV40,GSV40..NAP200602-200903

KOYO,NSK

sub89544-48010

9008011202

main90080-11202

9008011342

main90080-11342

90119A0182

main90119-A0182

90119A0191

main90119-A0191

90119A0213

main90119-A0213

90178A0023

main90178-A0023

15 parts on this diagram · 2 diagrams in section
