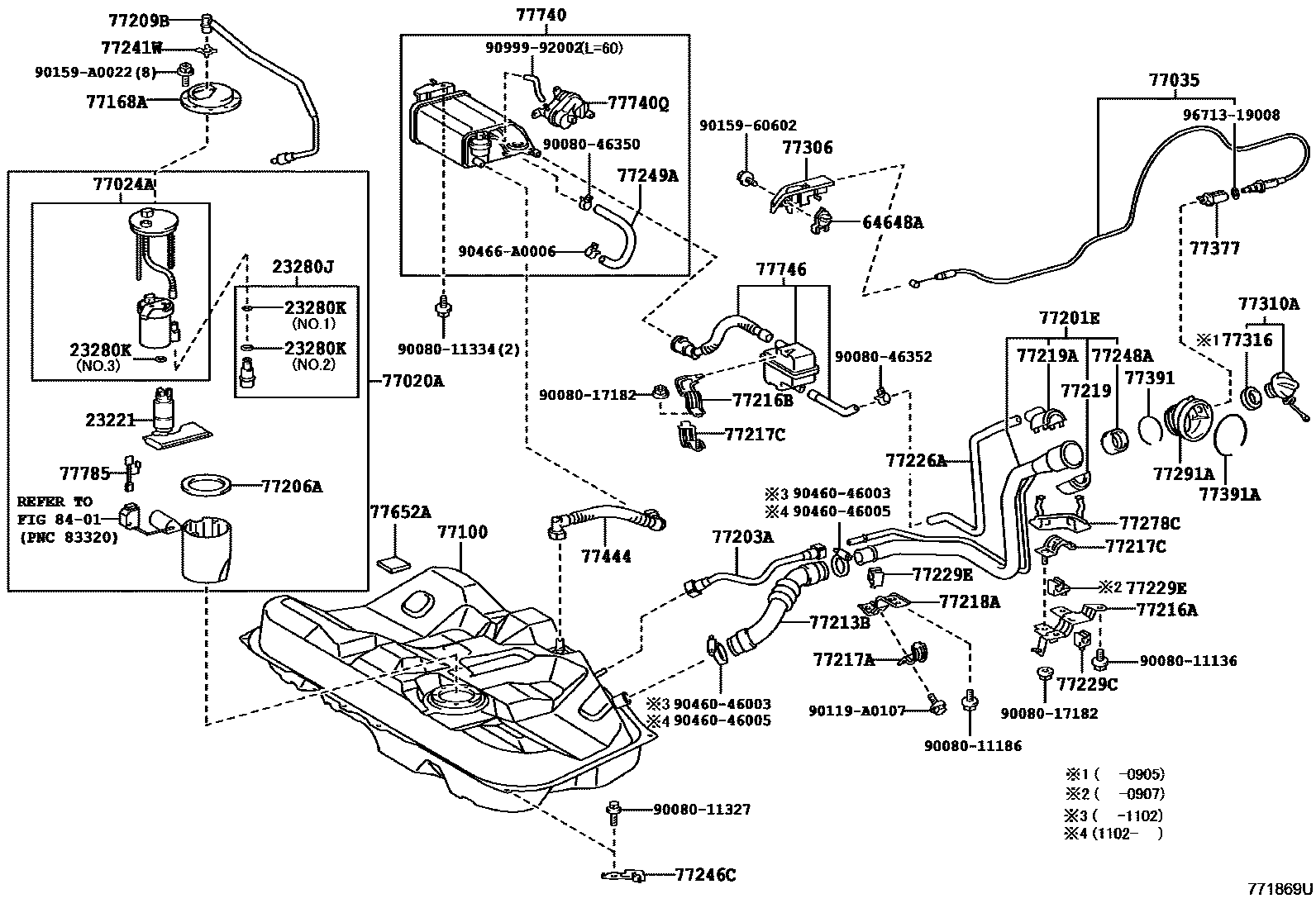

FUEL TANK & TUBE
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
NO.3
64648AGROMMET, LUGGAGE DOOR LOCK OPENER
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77168APLATE, FUEL TANK VENT TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77203ATUBE SUB-ASSY, FUEL SUCTION
77206AGASKET (FOR FUEL TANK SUCTION TUBE)
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
sub77213-06041
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77219ACOVER, FUEL TANK FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
sub77229-33060
77241WCLIP, TUBE JOINT
77246CSUPPORT, FUEL MAIN TUBE
(L)
(J)
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77249AHOSE, FUEL EMISSION
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77444HOSE, FUEL TANK VENT
77740CANISTER ASSY, CHARCOAL
77740QLEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER
sub90910-AF005
77746FILTER, CHARCOAL CANISTER, NO.2
77785HARNESS, FUEL PUMP
8401
9008011136
main90080-11136
9008011186
main90080-11186
9008011327
main90080-11327
9008011334
main90080-11334
9008017182
main90080-17182
9008046350
main90080-46350
9008046352
main90080-46352
90119A0107
main90119-A0107
9015960602
main90159-60602
90159A0022
main90159-A0022
9046046003
main90460-46003
9046046005
main90460-46005
90466A0006
main90466-A0006
9099992002
main90999-92002
9671319008
main96713-19008
58 parts on this diagram · 5 diagrams in section
