SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06030-B0iASV40,GSV40..NAP200602-201109

GRAY,TRIM1#

main73023-06030-E0iACV40,GSV40..NAP..(LE,XLE)200602-201109

GREGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06030-B0iACV40,GSV40..NAP200602-201109

GRAY,TRIM1#

main73024-06030-E0iASV40,GSV40..NAP..(LE,XLE)200602-201109

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06040iACV40,GSV40..NAP200602-201109

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06160-B1iACV40,GSV40..NAP..(LE,XLE)200602-200812

GRAY,TRIM1#

sub73210-06161

main73210-06160-B1iACV40,GSV40..NAP..(LE,XLE)200602-200812

GRAY,TRIM14

sub73210-06161

main73210-06160-C1iACV40,GSV40..NAP..SE200602-200812

DK GRAY,TRIM15

sub73210-06161

main73210-06160-E1iACV40,GSV40..NAP..(LE,XLE)200602-200812

GREGE,TRIM4#

sub73210-06161

main73210-06161-B1iACV40,GSV40..NAP..(LE,XLE)200901-201109

GRAY,TRIM1#

main73210-06161-B1iACV40,GSV40..NAP..(LE,XLE)200901-201109

GRAY,TRIM14

main73210-06161-C1iACV40,GSV40..NAP..SE200901-201109

BLACK,TRIM15

main73210-06161-E1iACV40,GSV40..NAP..(LE,XLE)200901-201109

GREGE,TRIM4#

main73210-06290-B0iGSV40..NAP..SE200903-201109

GRAY,TRIM14

main73210-06290-B0iGSV40..NAP..SE200903-201109

GRAY,TRIM1#

main73210-06290-C0iGSV40..NAP..SE200903-201109

DK.GRAY,TRIM15

main73210-06290-E0iGSV40..NAP..(LE,XLE)200903-201109

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-02010iASV40,GSV40..NAP200602-201109

BLACK

main73219-02020iACV40,GSV40..NAP200602-201109

GRAY

main73219-02030iACV40,GSV40..NAP200602-201109

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06160-B1iACV40,GSV40..NAP..SE200602-201109

GRAY,TRIM14

main73220-06160-B1iASV40,GSV40..NAP..(LE,XLE)200602-201109

GRAY,TRIM1#

main73220-06160-C1iACV40,GSV40..NAP..SE200602-201109

DK GRAY,TRIM15

main73220-06160-E1iASV40,GSV40..NAP..(LE,XLE)200602-201109

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-06360-B0iASV40,GSV40..NAP..SE200602-201109

DK.GRAY,TRIM15

main73230-06360-B1iASV40,GSV40..NAP..SE200602-201109

GRAY,TRIM1#

main73230-06360-B1iACV40,GSV40..NAP..SE200602-201109

GRAY,TRIM14

main73230-06360-E0iACV40,GSV40..NAP..LE200602-201109

GREGE,TRIM4#

main73230-06380-B1iACV40,GSV40..NAP..SE200602-201109

POWER SEAT & LEATHER PACKAGE,GRAY,TRIM14

main73230-06380-B1iACV40,GSV40..NAP..SE200602-201109

GRAY,TRIM1#

main73230-06380-B1iACV40,GSV40..NAP..SE200602-201109

DRIVER & PASSENGER POWER SEAT PACKAGE,GRAY,TRIM14

main73230-06380-E0iASV40,GSV40..NAP..XLE200602-201109

GREGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-B8iACV40,GSV40..NAP..SE200602-201109

DK.GRAY,TRIM15,(J)

sub73233-33010

main73233-33010-E6iACV40,GSV40..NAP..(LE,XLE)200602-201109

GREGE,TRIM4#,(J)

sub73233-33010

main73233-33010-P3iACV40,GSV40..NAP..SE200602-201109

GRAY,TRIM1#,(J)

sub73233-33010

main73233-33010-P3iACV40,GSV40..NAP..SE200602-201109

GRAY,TRIM14,(J)

sub73233-33010

main73233-AA010-B1iASV40,GSV40..NAP..SE200602-201109

DK.GRAY,TRIM15,(L)

main73233-AA010-B5iACV40,GSV40..NAP..SE200602-201109

GRAY,TRIM1#,(L)

main73233-AA010-B5iACV40,GSV40..NAP..(LE,XLE)200602-201109

GRAY,TRIM14,(L)

main73233-AA010-E2iACV40,GSV40..NAP..(LE,XLE)200602-201109

GREGE,TRIM4#,(L)

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-06150-B0iASV40,GSV40..NAP..SE200602-201109

DK.GRAY,TRIM15

main73240-06150-B1iACV40,GSV40..NAP..SE200602-201109

GRAY,TRIM14

main73240-06150-B1iACV40,GSV40..NAP..(LE,XLE)200602-201109

GRAY,TRIM1#

main73240-06150-E0iASV40,GSV40..NAP..(LE,XLE)200602-201109

GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9008017195

main90080-17195

9008017196

main90080-17196

9008410013

main90084-10013

9008410025

main90084-10025

9008410028

main90084-10028

90105A0014

main90105-A0014

91512G1025

main91512-G1025

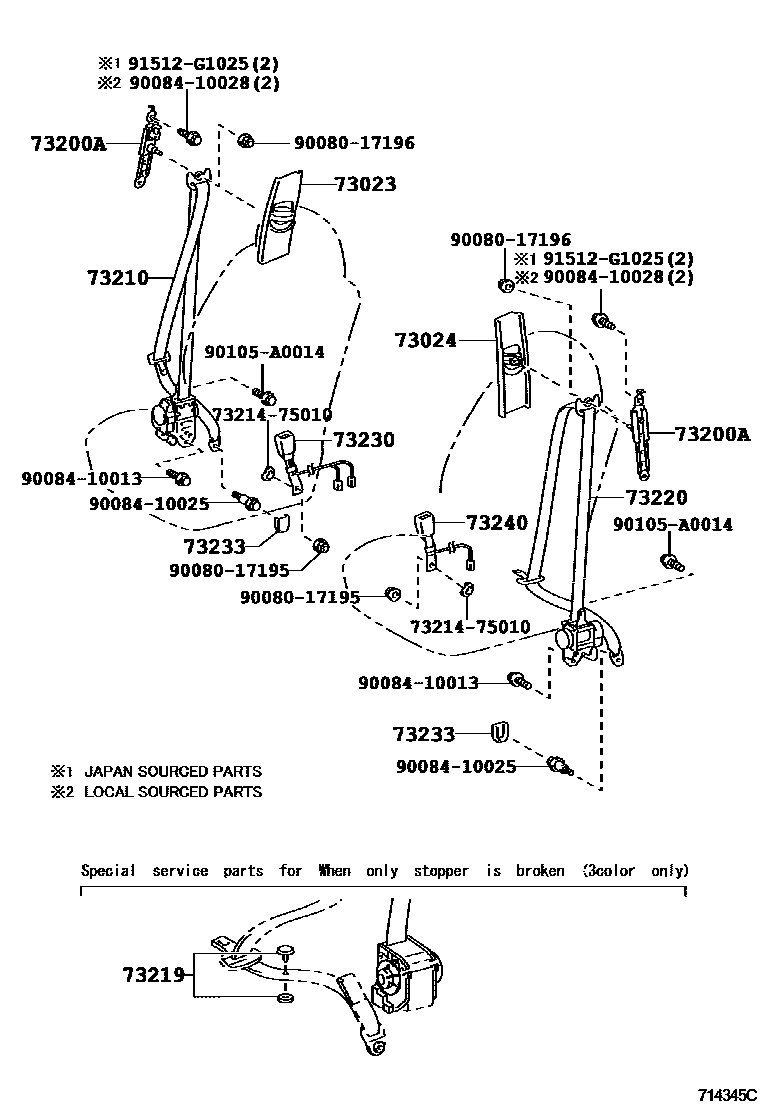

17 parts on this diagram · 2 diagrams in section
