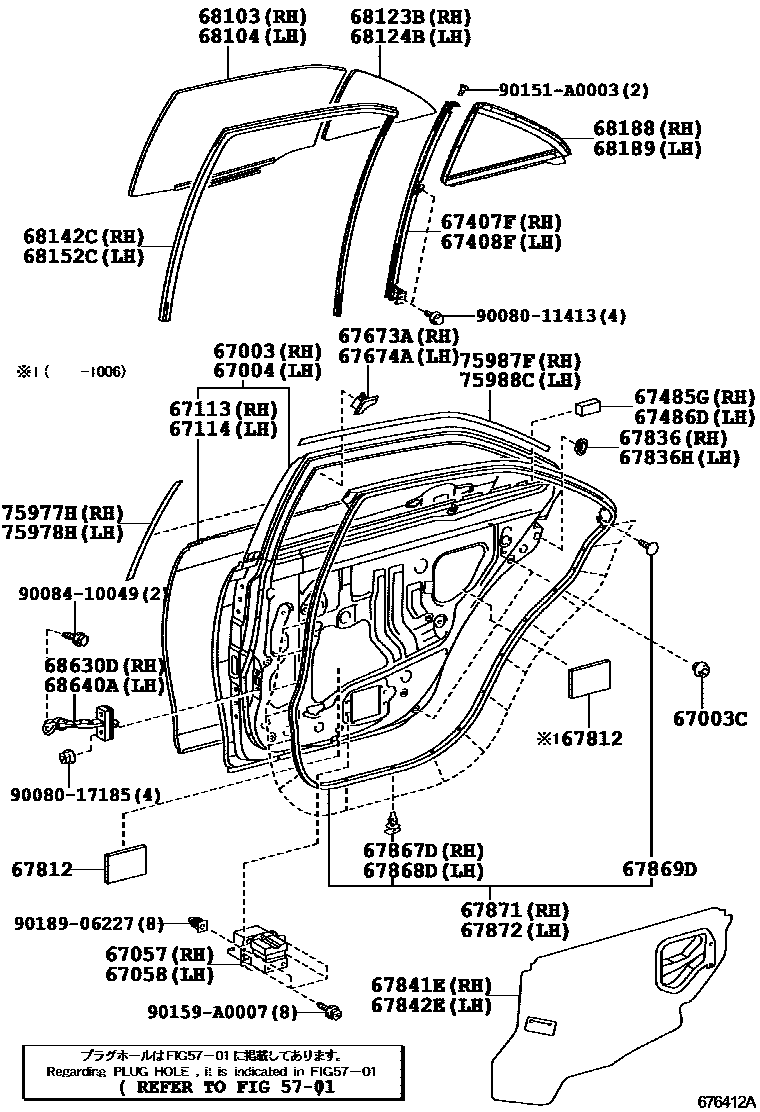

REAR DOOR PANEL & GLASS
5701
67003CCUSHION, REAR DOOR PANEL
67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH
67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67485GSEAL, REAR DOOR REAR LOWER FRAME, RH
67486DSEAL, REAR DOOR REAR LOWER FRAME, LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67812PAD, REAR DOOR SILENCER
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
sub67867-12150
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
sub67867-12150
67869DCLIP, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=4.0,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=4.0,GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*TEM,T=3.5,GREEN
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*TEM,T=3.5,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988CSTRIPE, REAR DOOR, OUTSIDE LH
9008011413
main90080-11413
9008017185
main90080-17185
9008410049
main90084-10049
90151A0003
main90151-A0003
90159A0007
main90159-A0007
9018906227
main90189-06227
44 parts on this diagram · 2 diagrams in section
